Description：
This machine is suitable for single side or double side labeling stickers on round bottles or square bottles, like shampoo bottles,hand sanitizer bottles,lubricating oil bottles.It is widely used in daily chemical,cosmetic,pharmaceutical industries.
Details
| Power Supply | 110V / 220V, 50–60Hz |
|---|---|
| Working Speed | 30–120 pcs/min (based on product and label size) |
| Labeling Accuracy | ±1mm |
| Suitable Object Size L | 20–250mm / W: 30–90mm / H: 60–280mm |
| Suitable Label Size L | 20–300mm / W: 20–170mm |
| Label Roll Outer Diameter | Max. φ300mm |
| Label Roll Inner Diameter | φ76mm |
| Machine Dimensions | 3020×1560×1570mm |
| Machine Weight | Approx. 500kg |
| Labeling Type Round bottle | single/double side<br>Square bottle: double side |

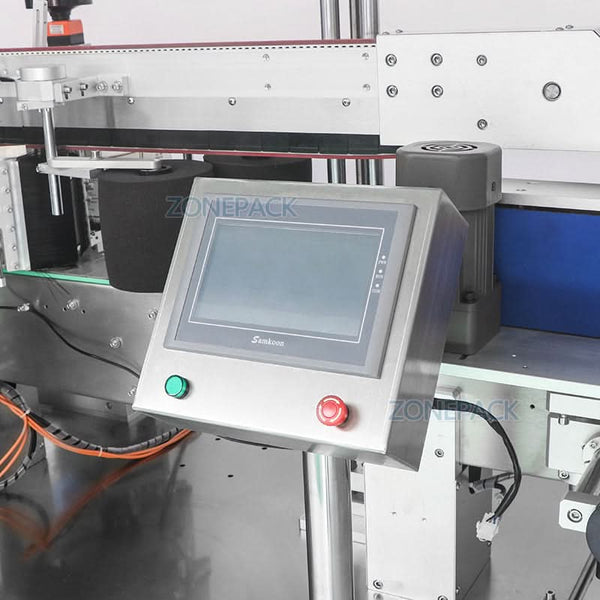

TOUCHSCREEN CONTROL PANEL
The touchscreen provides convenient control of the labeling speed and output spacing and supports timed operation. The interface can be set to English.

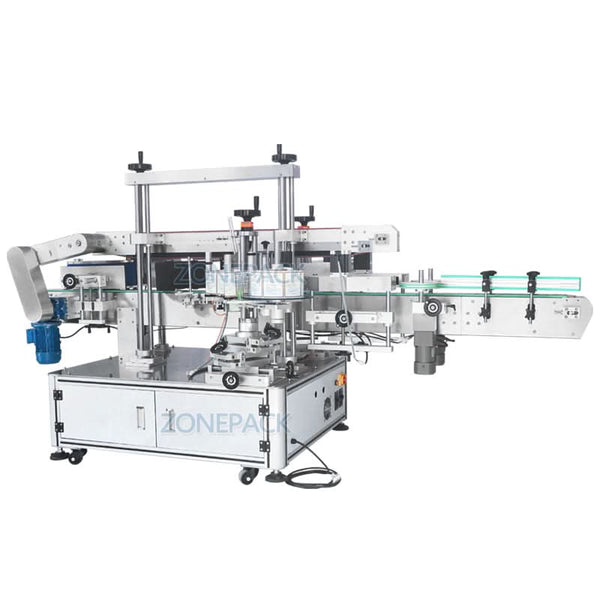

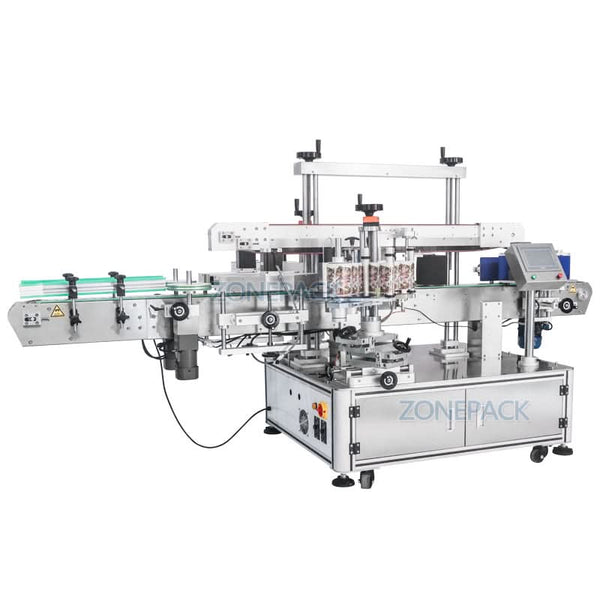

DOUBLE-SIDED LABELING
Designed for applying labels to both sides of bottles, the labeling mechanism supports stable operation and consistent label placement.

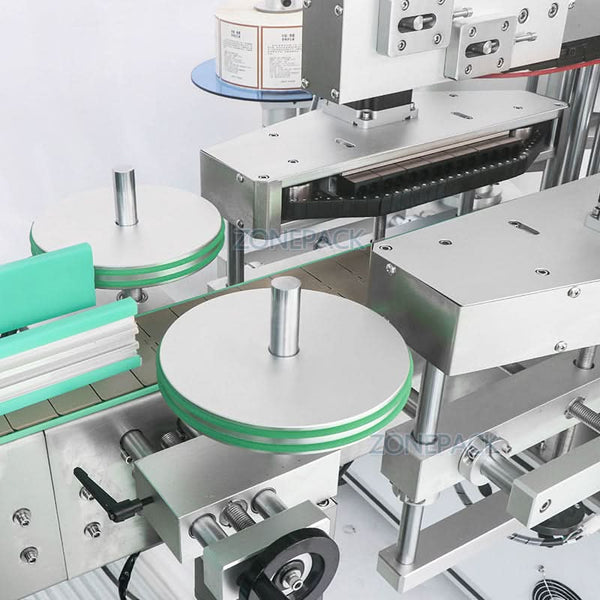

LABELING OPTIONS
Type A supports single-label and full-wrap labeling on round bottles. Type B supports single-sided and double-sided labeling. Select the configuration according to your labeling requirements.

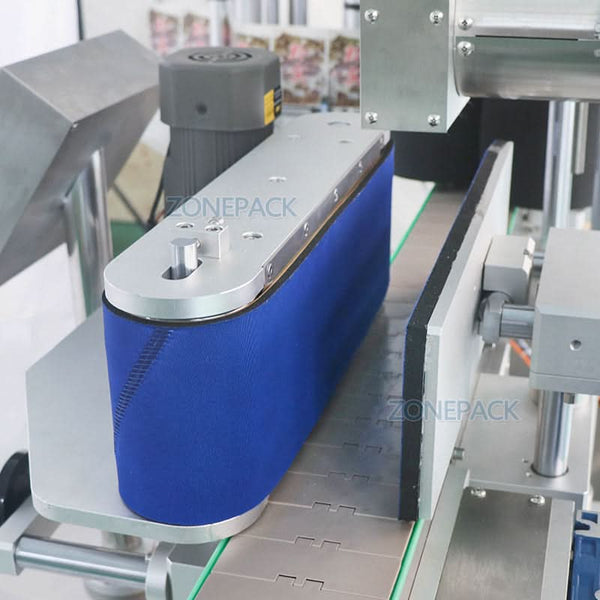

CONVEYOR
The conveyor speed is adjustable and automatically transports bottles, reducing manual handling.
BOTTLE AND LABEL SENSORS
The bottle and label sensors support accurate operation, helping prevent missed bottles and wasted labels.
MOTOR
The motor provides stable performance for continuous operation.
