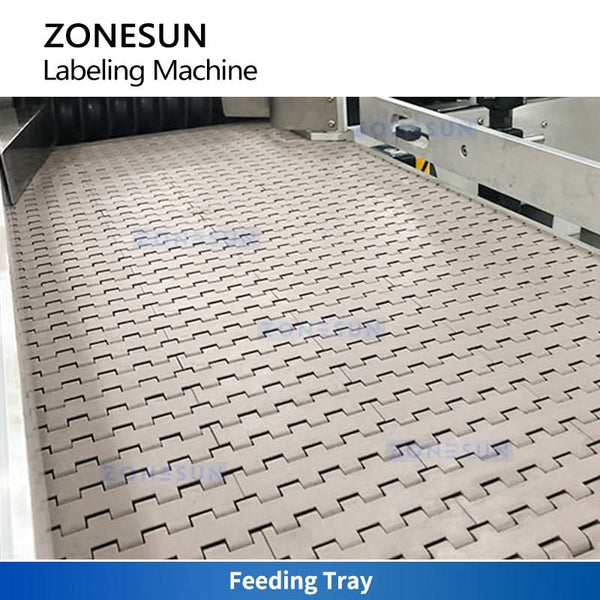

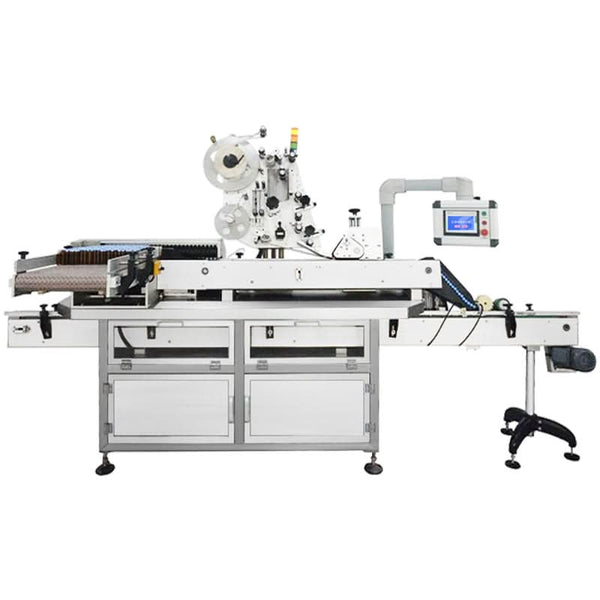

This labeling machine features a unique design that accommodates upright bottles. A specialized infeed mechanism gently inverts the bottles, transferring them horizontally onto a roller conveyor for labeling. After labeling, a diverting mechanism guides the bottles onto a lower conveyor belt carrying trays. A motor-driven starwheel then precisely positions the labeled bottles into the trays.
Parameter
| Model | ZS-TBRH100 |
|---|---|
| Voltage AC | 220V 50/60Hz |
| Power Consumption | 1.5KW |
| Labeling Speed | 0–100 bottles/min |
| Labeling Accuracy | ±1mm (excluding errors from bottle or label irregularity) |

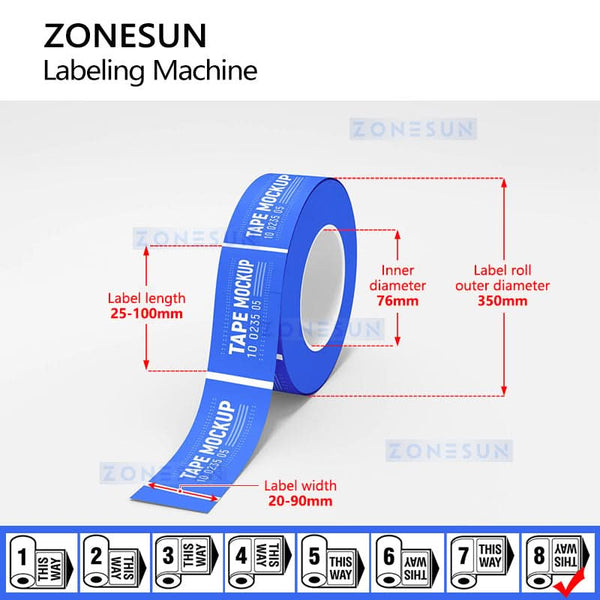

| Label Supply Outer diameter | 350mm; Inner paper roll diameter: 76mm |
| Printer Speed | 0–400 times/min (synchronized with labeling) |
| Applicable Label Size Height | 20–90mm; Length: 25–100mm |
| Applicable Container Size Length | 25–120mm; Diameter: 10–30mm |

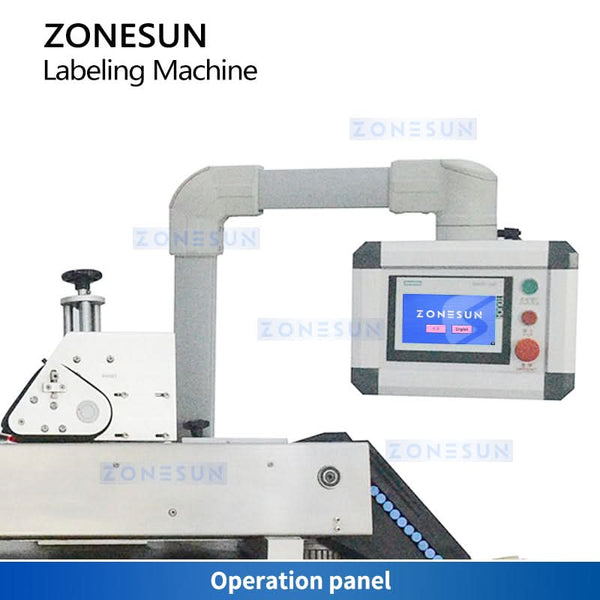

TOUCHSCREEN CONTROL
The touchscreen provides centralized settings for bottle transfer, label dispensing, and tray loading.

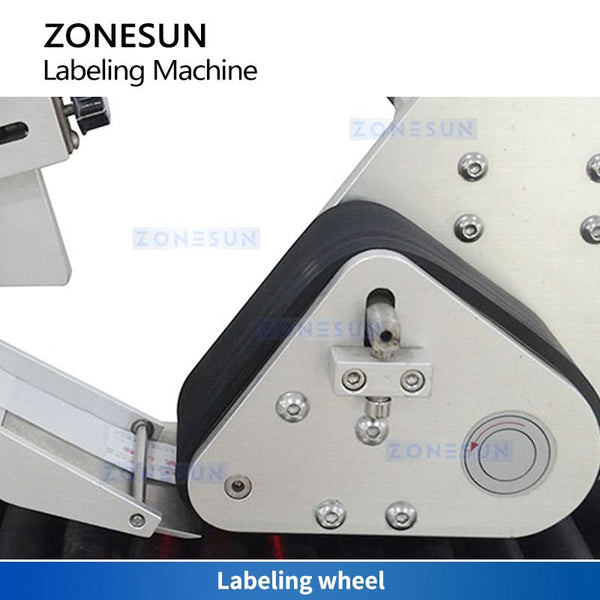

LABEL APPLICATION BELT
The application belt rotates the horizontal container while pressing the label evenly around its surface.

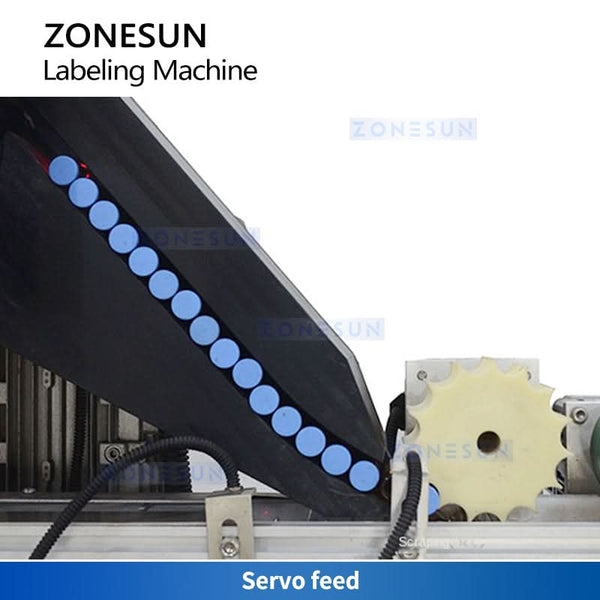

UPRIGHT-TO-HORIZONTAL INFEED
The infeed mechanism gently turns upright bottles onto the horizontal roller conveyor before labeling.
BOTTLE AND LABEL SENSING
The sensing system detects containers and coordinates label dispensing during operation.
