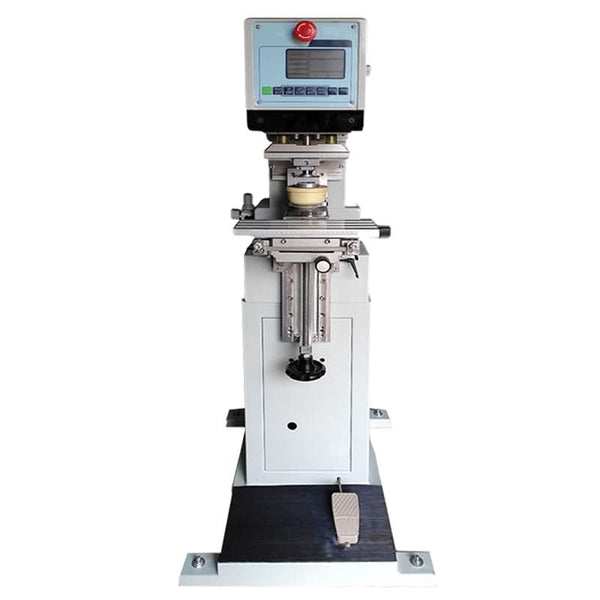

Introducing our Vertical Pneumatic Pad Printer, designed for efficiency and ease of use. It features an LCD panel and microcomputer control for seamless operation, and a built-in five-digit automatic counter for precise tracking. The unique environmentally-friendly sealed ink cup design prevents oil leaks, ensuring a cleaner workspace. This durable machine is made of high-quality cast aluminum and allows precise adjustment of the work table in all directions. It supports dual inking for thicker prints and has a drop-free feature to prevent ink from drying during pauses. Clean, consistent prints are achieved every time with automatic scraper pressure balancing and adjustable pressure settings.
Parameter
| Model | ZS-VTQYY1 |
|---|---|
| Power | 50/60Hz |
| Power Supply | 220/110V |
| Oil Jar Diameter | 90 mm |
| Steel Plate Size | 100 × 250 mm |
| Printing Speed | 2000 pcs/min |
| Printing Area | 75 × 115 mm |
| Weight | 110 kg |
| Dimensions | 700 × 450 × 1360 mm |

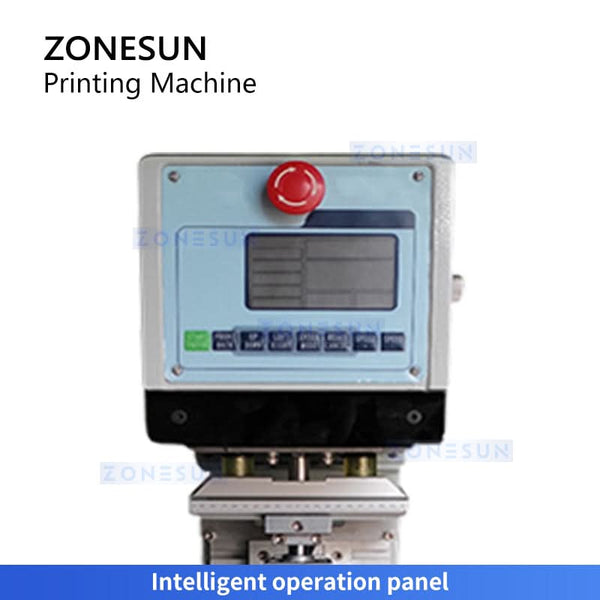

OPERATION PANEL
The LCD panel uses microcomputer control and includes a five-digit automatic counter for tracking production output.

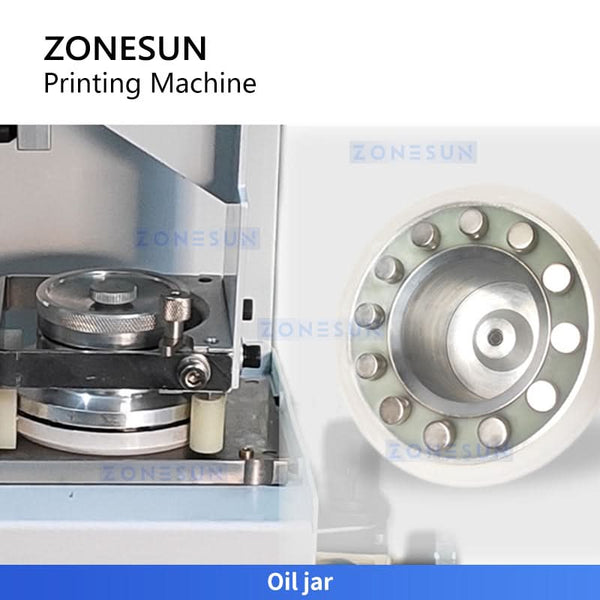

OIL CUP
Supports precise, efficient ink transfer from the printing plate to the substrate.

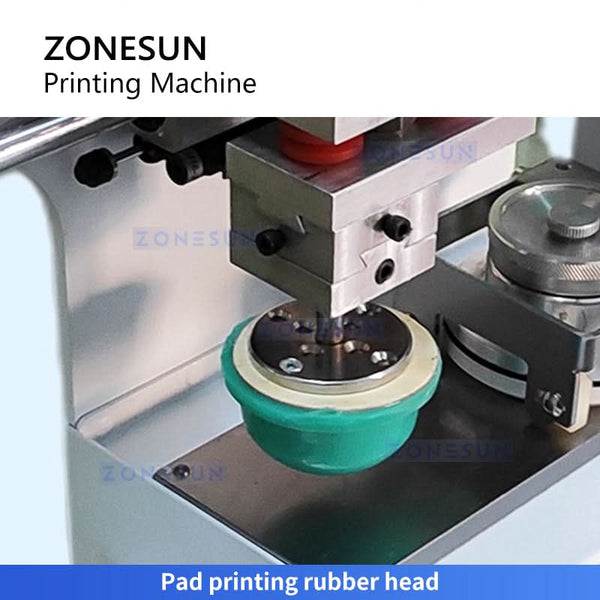

RUBBER PRINTING HEAD
Supports precise, efficient ink transfer from the printing plate to the substrate.

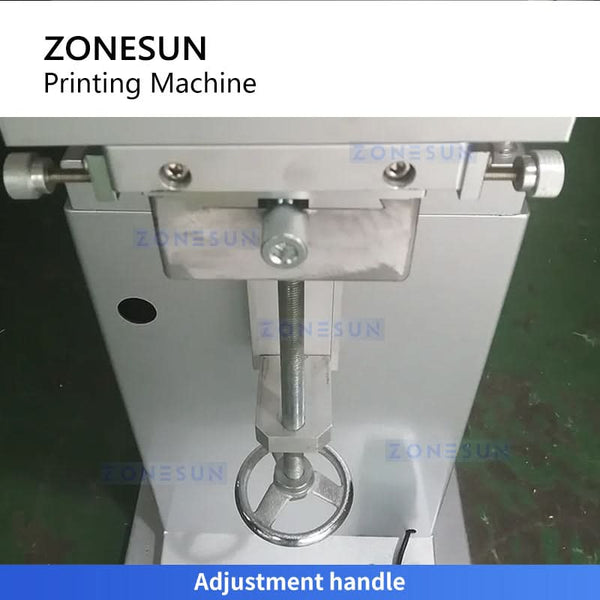

WORKBENCH
The adjustable handle controls workbench movement forward, backward, left, right, and at an angle.
FOOT SWITCH
Enables hands-free starting and stopping of the printing process.
