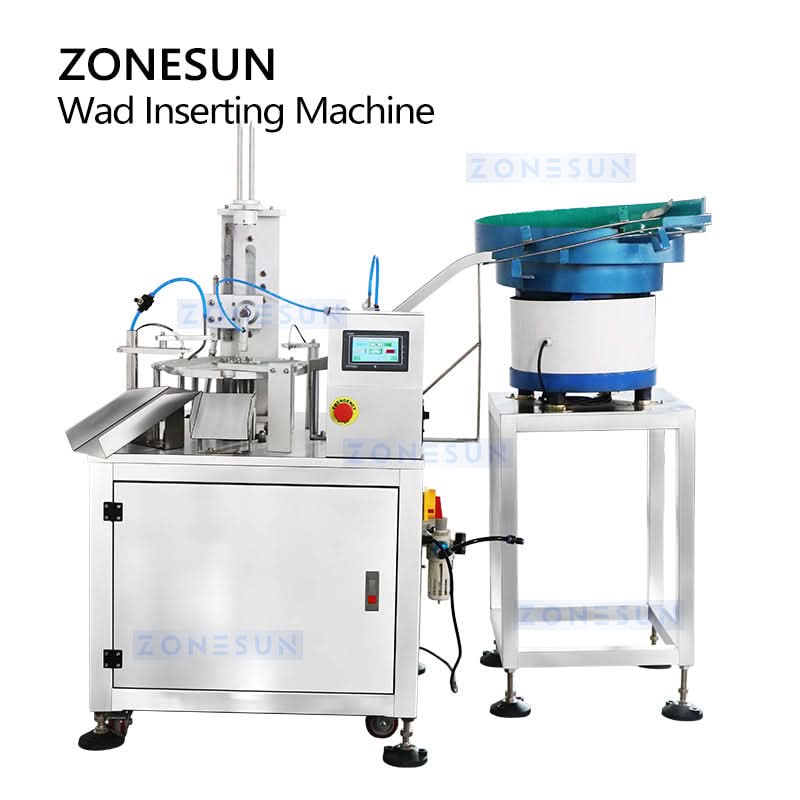

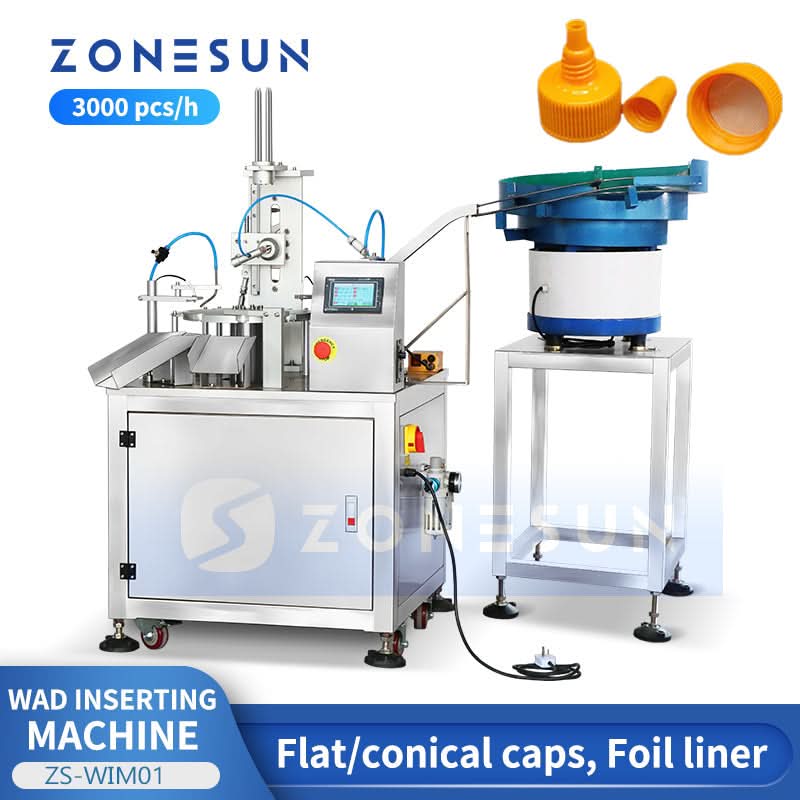

ZONESUN ZS-WIM01 Automatic Induction Wad Inserting Machine
DESCRIPTION
This machine is designed for inserting induction seal wad into plastic bottle caps. It utilizes a rotary indexer fitted with a star wheel to receive caps & closures. Then the head uses vacuum to pick and place precut liners/wads from a magazine into the cap. It is applicable for flat and conical caps.
PARAMETER
|
Machine model |
ZS-WIM01 |
|
Voltage |
110/220V 50-60HZ |
|
Power |
About 2.6KW |
|
Working speed |
About 3000pcs/hour |
|
Machine size |
About 1500*800*1300mm |
|
Machine weight |
About 300kg |
|
Cap Feeder size |
About 1520*750*1180mm |
|
Cap Feeder weight |
About 102kg |
PRODUCT DETAILS

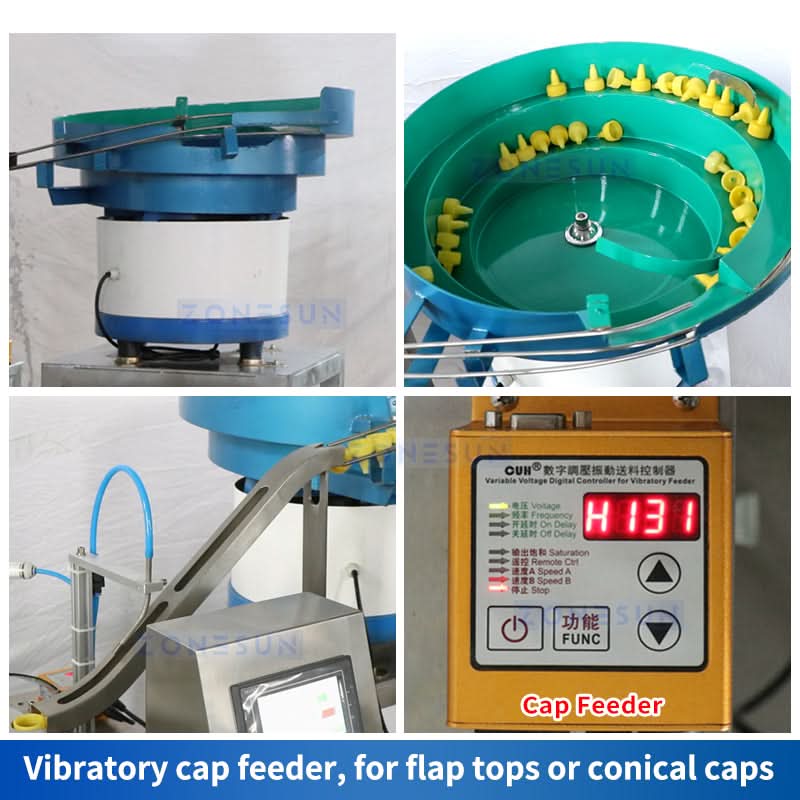

FEEDING
Vibratory cap feeder, customizable for flap tops and conical caps.

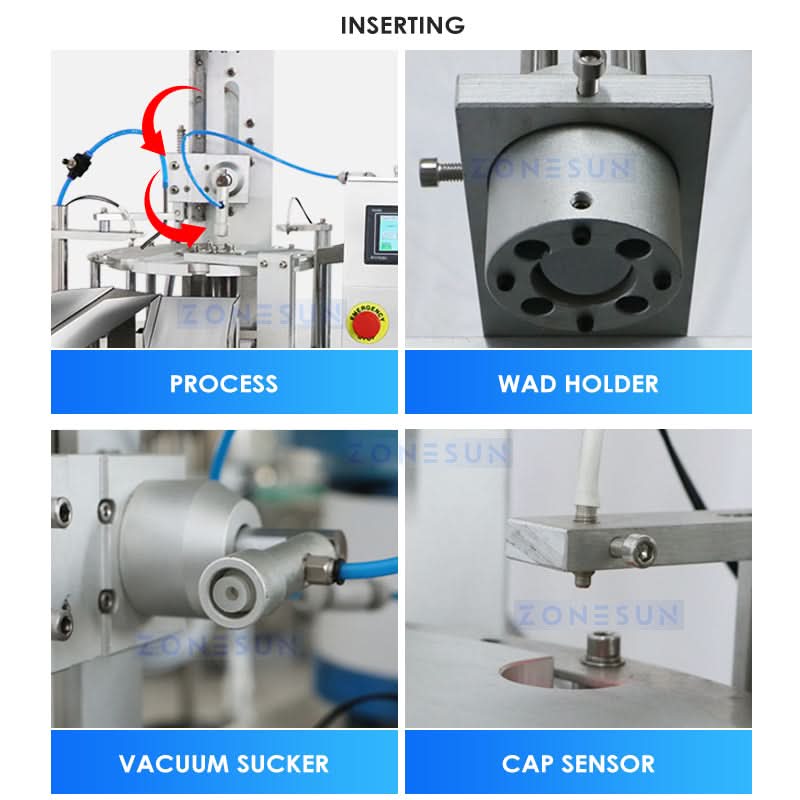

INSERTING
It uses a vacuum flipping head to suck the wad and insert it into the cap.

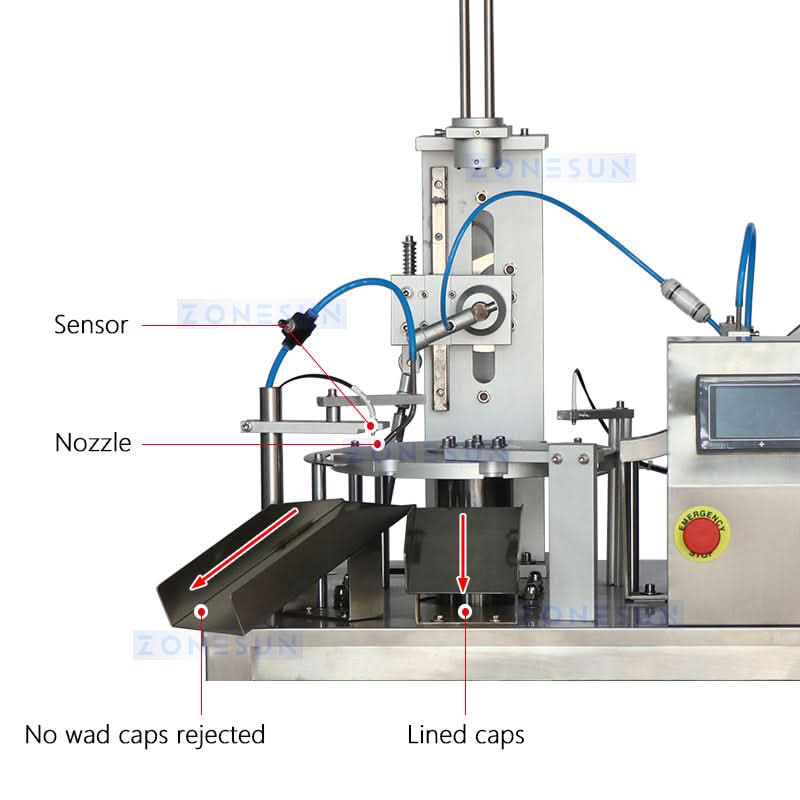

DETECTING
Automatically sense and reject no wad caps,
2 lanes for discharging.

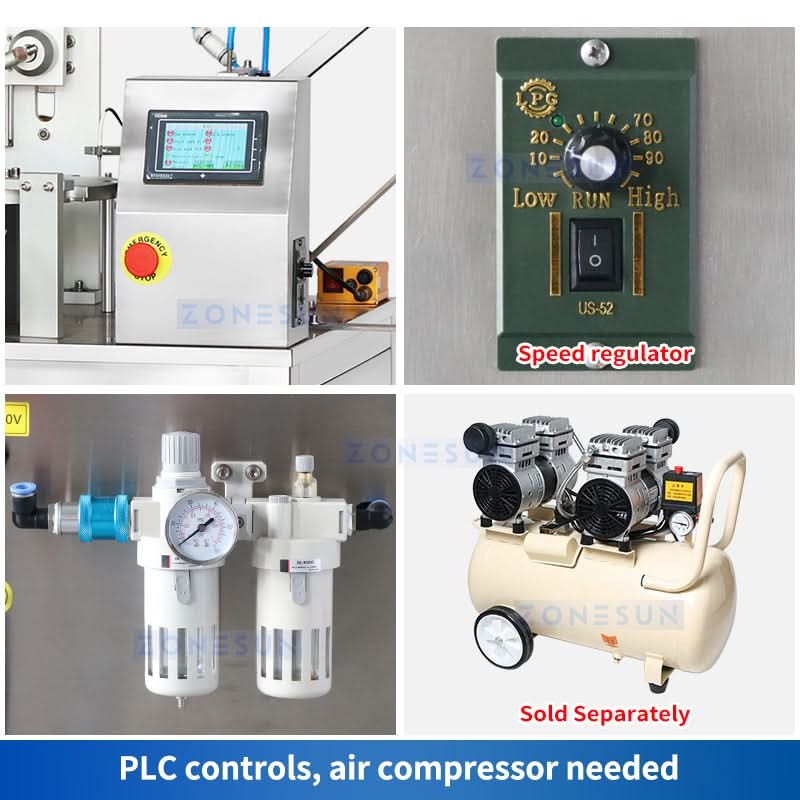

CONTROL PANEL
PLC controls, no complex parameter needs to be set.
It needs an extra compressor which is sold separately.
