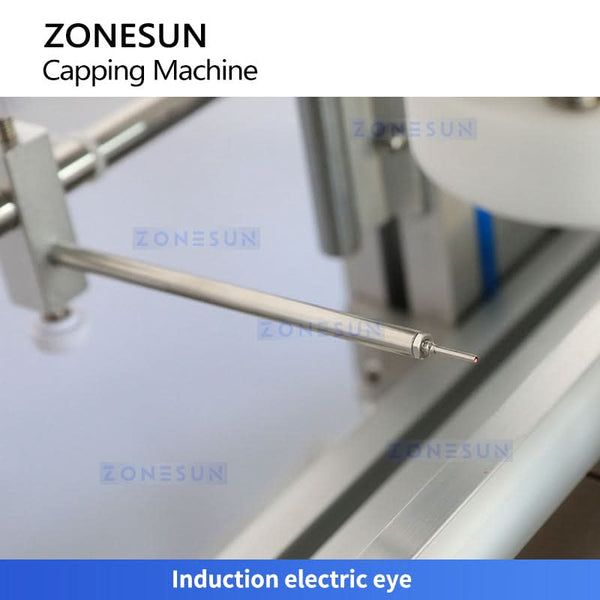

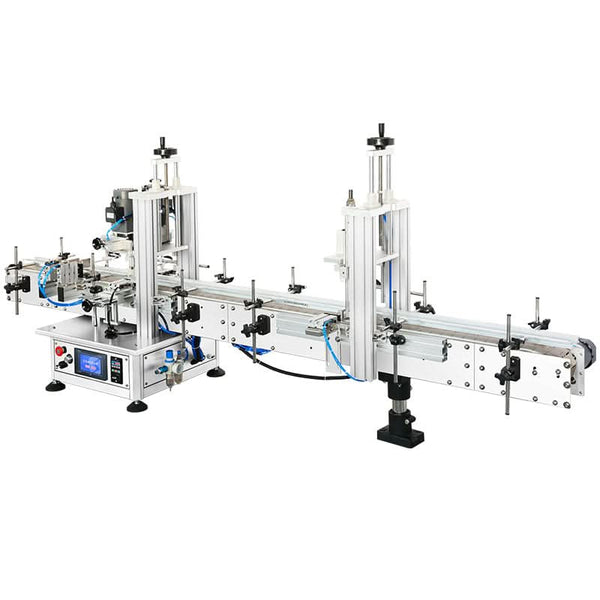

Revolutionize your capping process with our high-speed desktop capping machine! This innovative solution seamlessly combines screw capping and press capping functionalities for unparalleled efficiency. Simply place capped bottles onto the conveyor belt. As bottles reach the screw capping station, a bottle-detecting sensor triggers dual-motor driven, four-wheel system to precisely and securely screw on the caps. Afterward, manually attach the outer cap. The bottle then moves to the pneumatic press capping station for a firm, secure finish. Achieve a remarkable output of 3600 bottles per hour, maximizing productivity and minimizing manual labor. Perfect for small to medium-sized businesses.
PARAMETER
Model: ZS-XG1870DV
Working voltage: AC220V/110V 50-60HZ
Bottle height: 30-300mm
Cap diameter: 18-70mm
Bottle diameter: 20-160mm
Working speed: 20-60 bottles/min(depending on bottle and cap size and shape)
Working pressure: 0.4-0.6MPa
Machine size: About 3360*680*1560mm
Package size: 1970*1170*1735mm
Net weight/Gross weight: About 157kg /257kg
The PLC with intuitive touch screen interface makes the machine easy to operate and the data is visualized. The custom language function ensures easy operation in different regions.
It can send and receive signals to the system to accurately control the operation of the machine, enhance the degree of automation, and ensure that the capping process is synchronized with the production process.

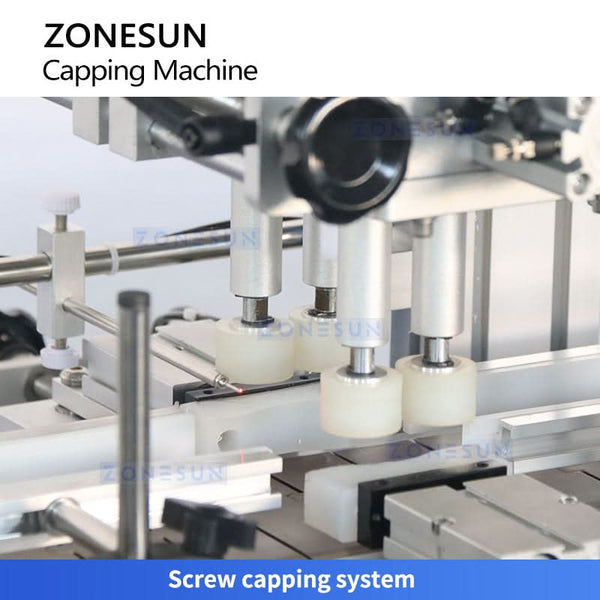

It consists of four rubber rollers that can firmly clamp and rotate the bottle cap, suitable for various types of bottles, prevent leakage and maintain product integrity

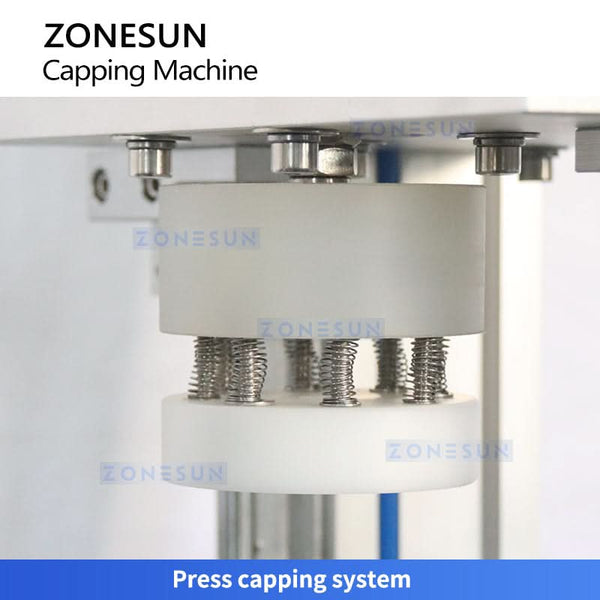

It has a press head that can be customized according to the size of the bottle cap used. Ensure that the machine is perfectly matched with the product produced.
