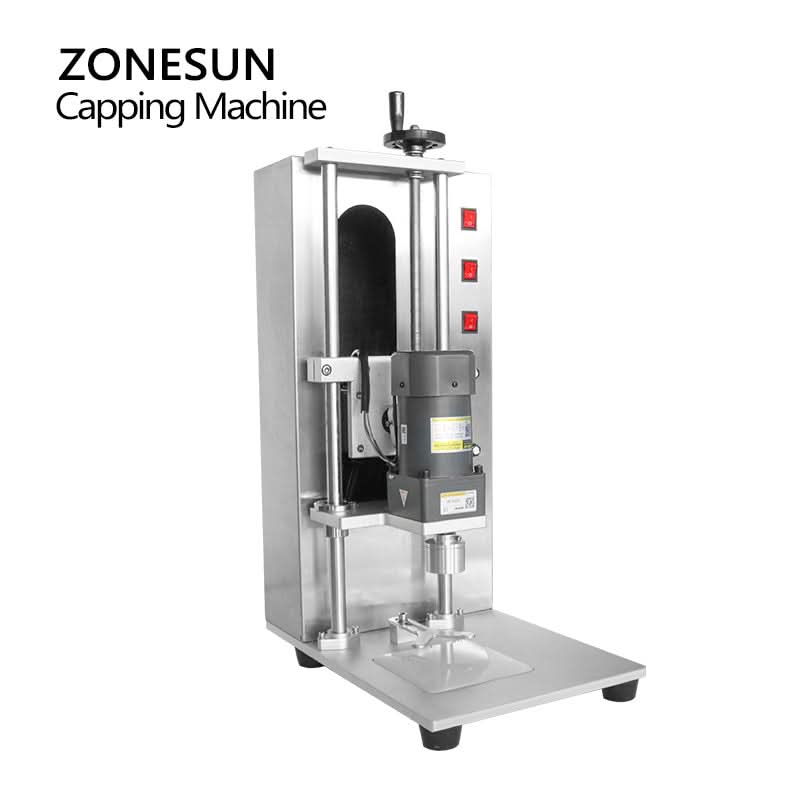

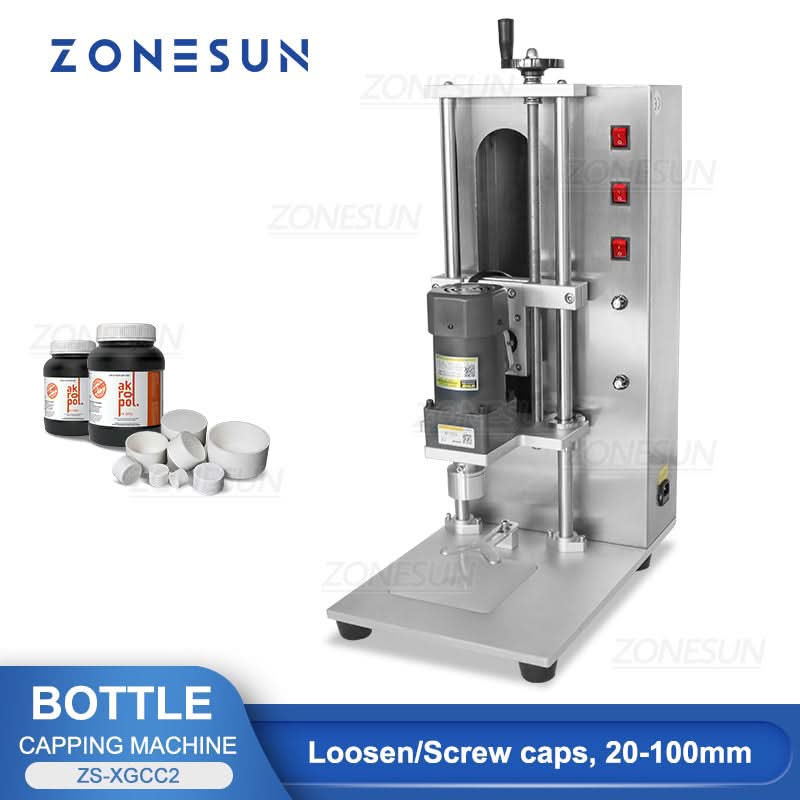

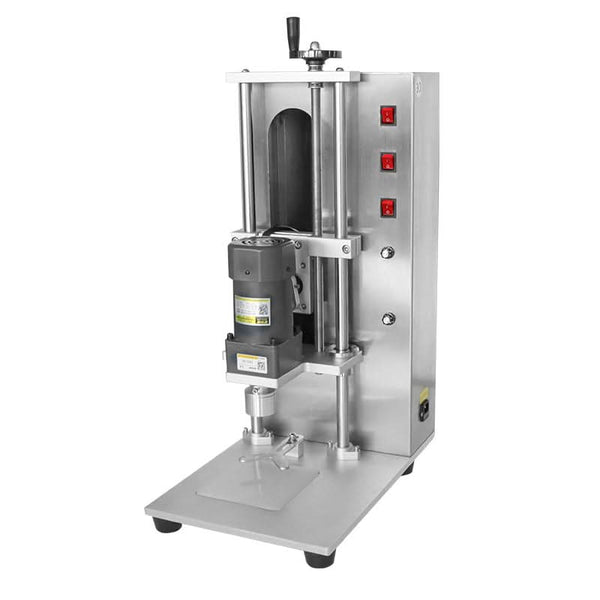

Semi-Automatic Screw Capping for Bottles & Jars
The ZONESUN ZS-XGCC2 tightens or loosens compatible screw caps on bottles and jars. Its tabletop design, bottle-positioning component and adjustable capping head support small-batch packaging work in cosmetics, household products and other suitable applications.
Select the cap-size configuration that matches your actual closure. The operator handles bottles and caps during semi-automatic operation.
Choose Your Cap-Size Configuration
| Bottle Cap Option | Selection Guidance |
|---|---|
| 20-50 mm cap | Check your cap's outside diameter, height, shape and material before selecting. |
| 60-70 mm cap | Check your cap's outside diameter, height, shape and material before selecting. |
| 70-80 mm cap | Check your cap's outside diameter, height, shape and material before selecting. |
| 80-90 mm cap | Check your cap's outside diameter, height, shape and material before selecting. |
| 90-100 mm cap | Check your cap's outside diameter, height, shape and material before selecting. |
Each option refers to a selected cap-size configuration, not a promise that one supplied head fits every listed size. Confirm the supplied capping head and any additional tooling needed for different closures. For caps between 50 and 60 mm, or near a size boundary, contact us to check suitability before ordering.
Key Features
- Tightening and loosening: For suitable screw-cap closures with the correct setup.

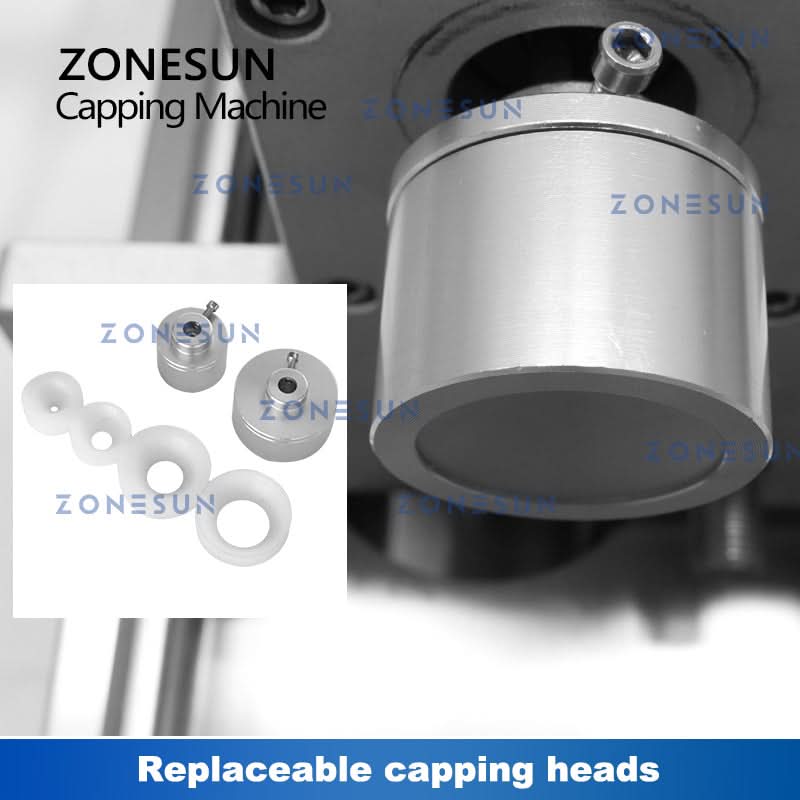

- Replaceable capping head: Supports configuration for compatible closures.
- Adjustable head height and speed: Helps set up the machine for different compatible bottle and cap combinations.
- Bottle positioning: The positioning component holds the bottle in place during operation.
- Control panel: Provides access to power, lifting-motor, capping-motor and speed controls.
Operation & Compatibility
Prepare the matched bottle and cap, position the bottle, and operate the machine using the supplied instructions. Remove the bottle after the cycle. Confirm the start method and required operator steps for your configuration.
Capping speed adjustment is not a specified torque setting. If your closure requires a measured tightening torque, provide the target torque and bottle/cap samples so suitability can be checked. Do not assume compatibility with crimp closures, crown caps or other non-screw sealing methods.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-XGCC2 |
| Listed Voltage / Frequency | 110 V or 220 V / 50–60 Hz |
| Power | 50 W |
| Cap Configuration | Select from the Bottle Cap options above; tooling compatibility requires confirmation |

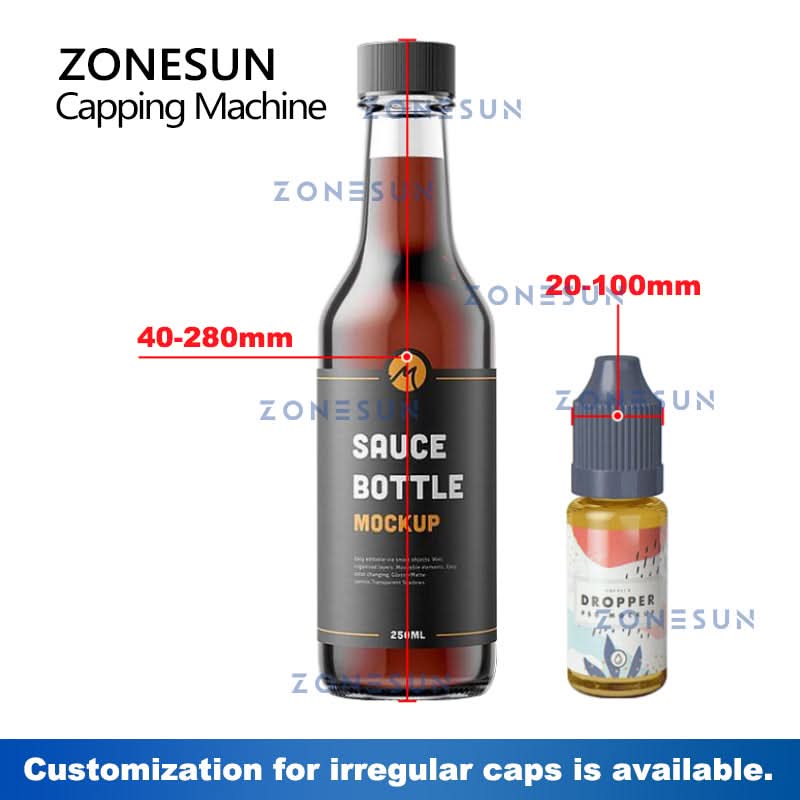

| Suitable Bottle Height | 40–280 mm |
| Function | Tightening and loosening compatible screw caps |
| Machine Weight | Approx. 32 kg |
| Machine Dimensions | Approx. 460 × 300 × 760 mm |
| Package Weight | Approx. 33 kg |
| Package Dimensions | Approx. 520 × 420 × 840 mm |
Voltage confirmation: The current purchase selector contains cap-size options only. Confirm the required voltage with ZONESUN before ordering.
Before Ordering
- Provide cap outside diameter and height, cap material and shape, and bottle dimensions.
- Confirm the supplied head configuration and suitability for your closures, especially unusual or thin-walled containers.
- Confirm the required voltage and any specific torque or production-output requirements.
Contact ZONESUN with your bottle and cap details for configuration guidance.
Operation Video
Watch the demonstration on YouTube
Machine Details

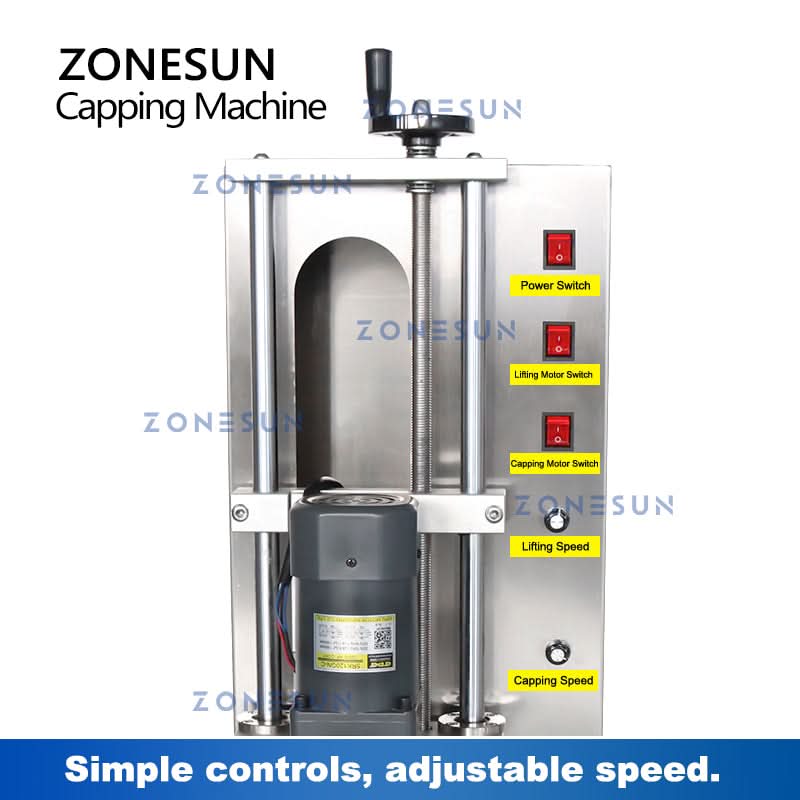

Control Panel & Capping Head
Controls provide access to lifting and capping operation and speed settings. The replaceable capping head has adjustable height and speed.

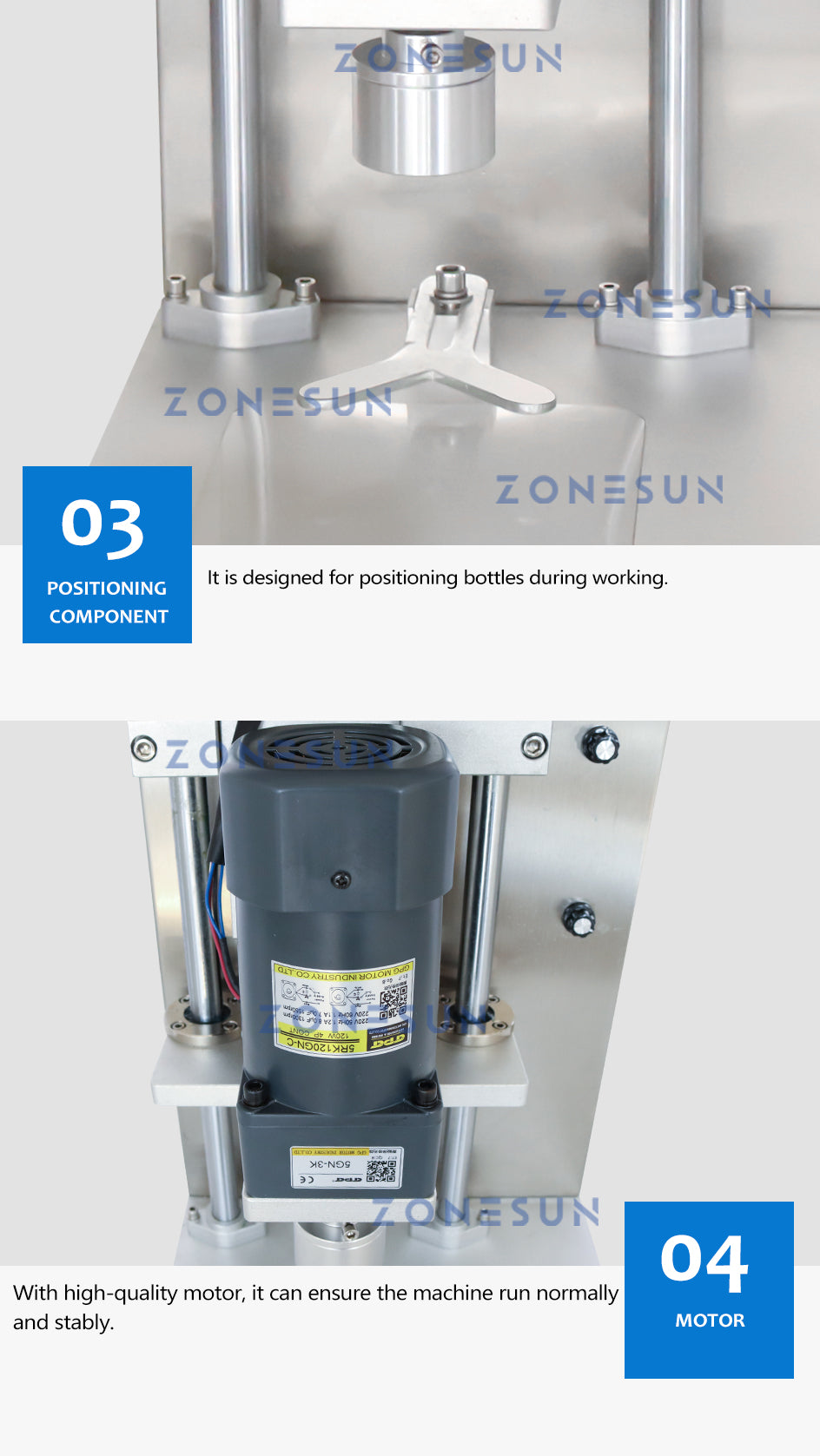

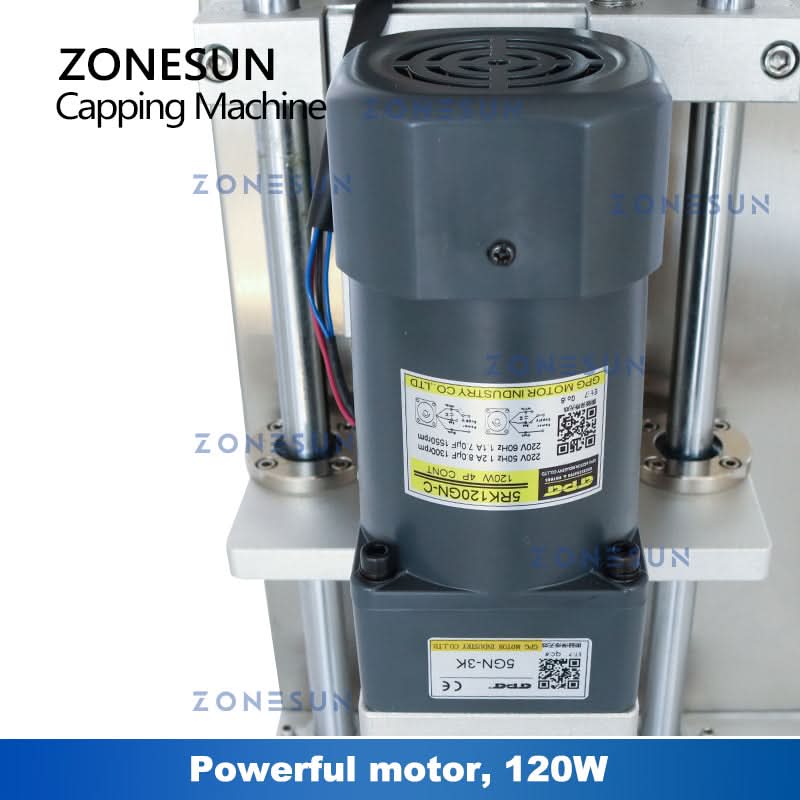

Bottle Positioning & Motor
The positioning component holds the bottle in place during operation.
