Product Description
This peristaltic pump liquid filling machine is with PLC control panel,which is easier to adjust the parameter.Enter certain number to set filling range and filling accuracy.it is no need to test the filling time and filling speed.This one is widely used in drinks,cosmetics,and daily chemical industries.
Parameter
|
Machine model |
ZS-YTPP6001 |
|
Rotate speed |
0.1-600rpm |
|
Speed resolution |
0.01 rpm |
|
Flow resolution |
0.01μL |
|
Recommend filling range |
1-100ml |
|
Flow rate |
0.29-1500ml/min |
|
Filling accuracy |
±0.5% |
|
Suction angle |
1-720 degrees |
|
Outlet pressure |
≤0.55MPa |
|
Power consumption |
< 180W |
|
Applicable power supply |
110 / 220V 50-60Hz |
|

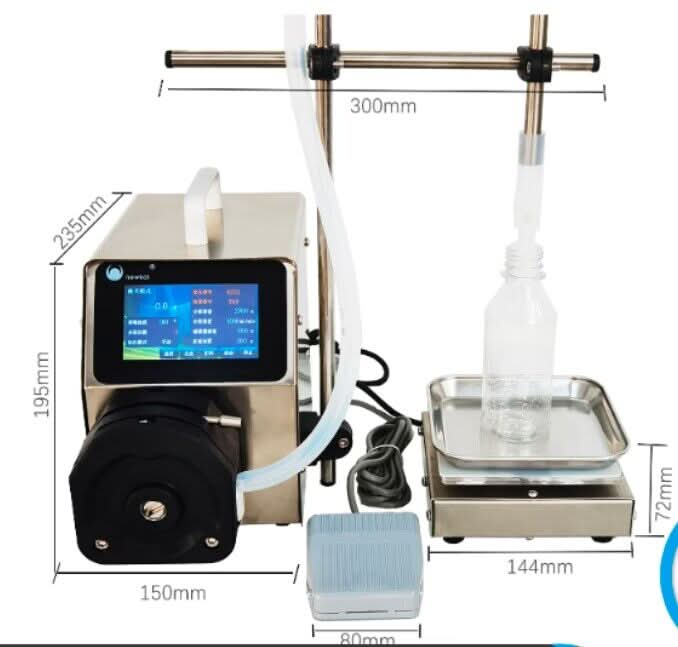

Machine size |
About 153*235*203mm |
|
Machine weight |
About 6.5kg |
|
Package size |
About 400*250*320mm |
|
Package weight |
About 7.3kg |
