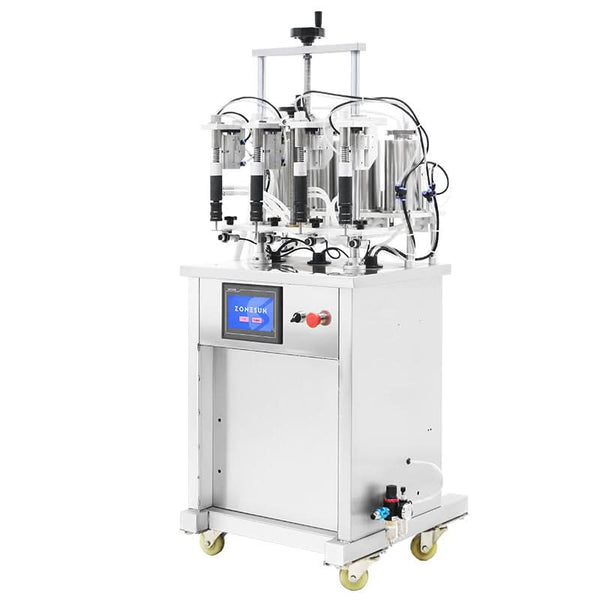

Elevate your perfume bottling process with our advanced semi-automatic vacuum filling machine. Designed for precision and efficiency, this vertical machine ensures spill-free filling of glass bottles using a vacuum backflow system. Reduce waste, minimize mess, and maintain the highest quality standards. Perfect for both small-batch production and scaling up your business, this machine offers a balance of automation and hands-on control. Its user-friendly design makes operation simple, while its robust construction guarantees long-lasting performance. Increase your throughput and maintain consistent fill levels, ensuring a professional finish for every bottle.
Parameter
Machine Model ZS-YTZL4S
Voltage 4/N AC220V
Power 0.75 kW
Working Capacity 10–20 bottles/min
Adjustable Liquid Level ≤27 mm from bottle mouth
Applicable Bottle Height Unlimited (customizable)
Applicable Bottle Diameter Unlimited (customizable)
Applicable Bottle Opening Diameter ≤24 mm
Filling Volume 5–500 ml
Machine Size Approx. 750 × 610 × 1560 mm (29.5×24×61.4 in)

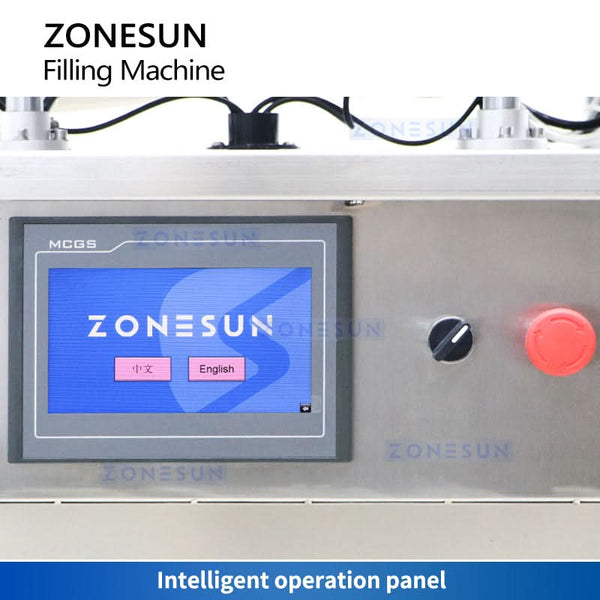

CONTROL PANEL
The control panel provides straightforward settings for operating the semi-automatic vacuum filling process.

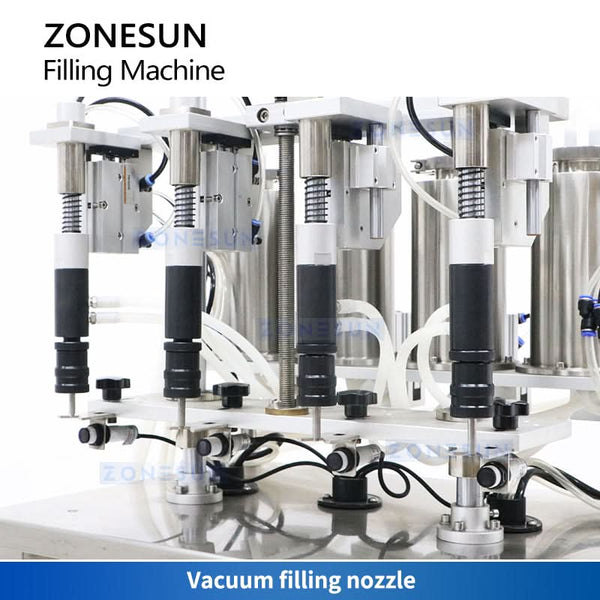

VACUUM FILLING HEAD
The filling head uses vacuum backflow to fill glass bottles to a consistent liquid level while reducing spills.

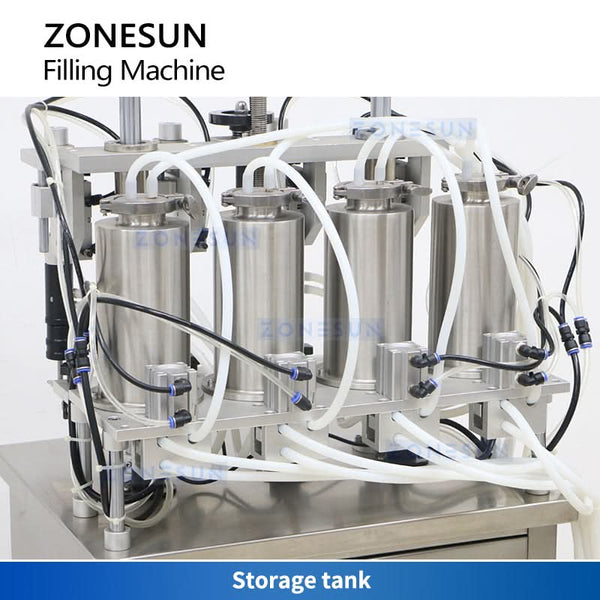

STORAGE TANK
The storage tank supplies liquid to the filling system during operation.

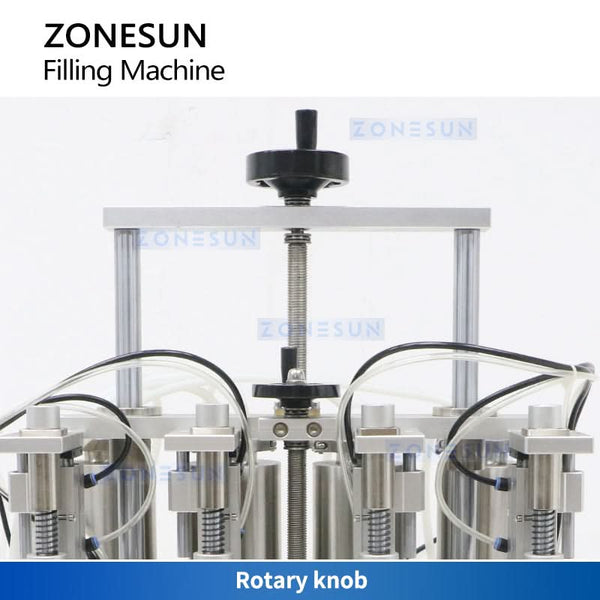

ADJUSTMENT KNOB
The rotary adjustment knob allows the operator to fine-tune the machine setting shown in the image.
BOTTLE SENSOR
The sensor detects the bottle at the filling position to support controlled operation.
