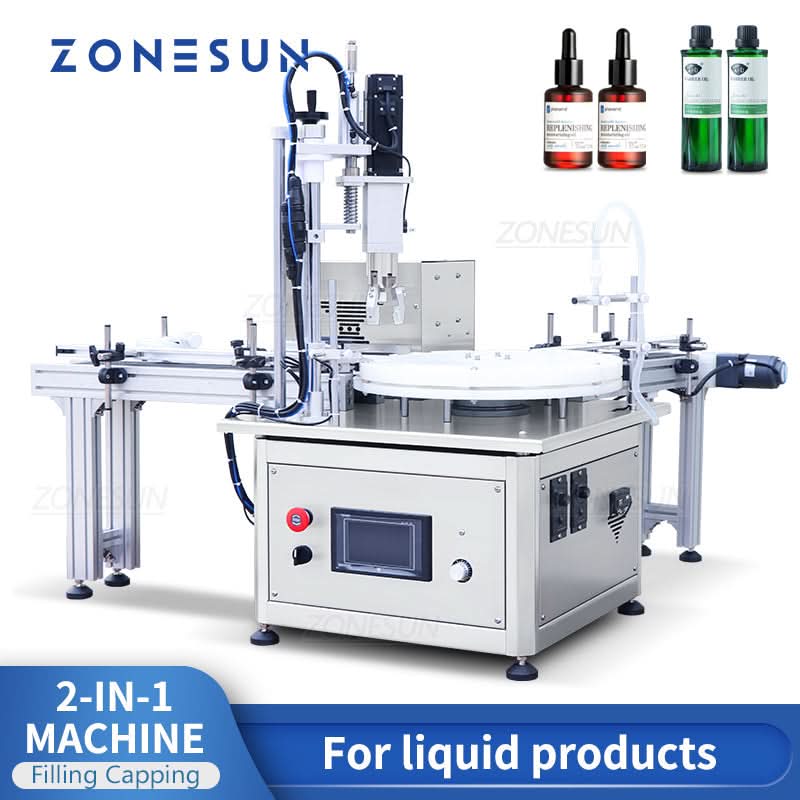

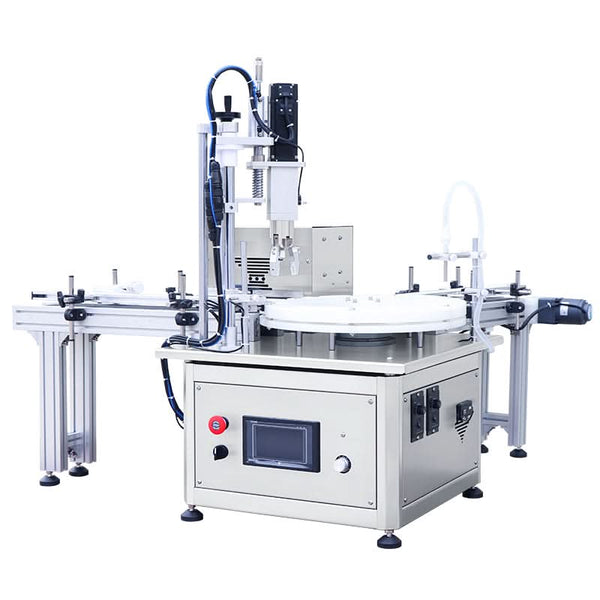

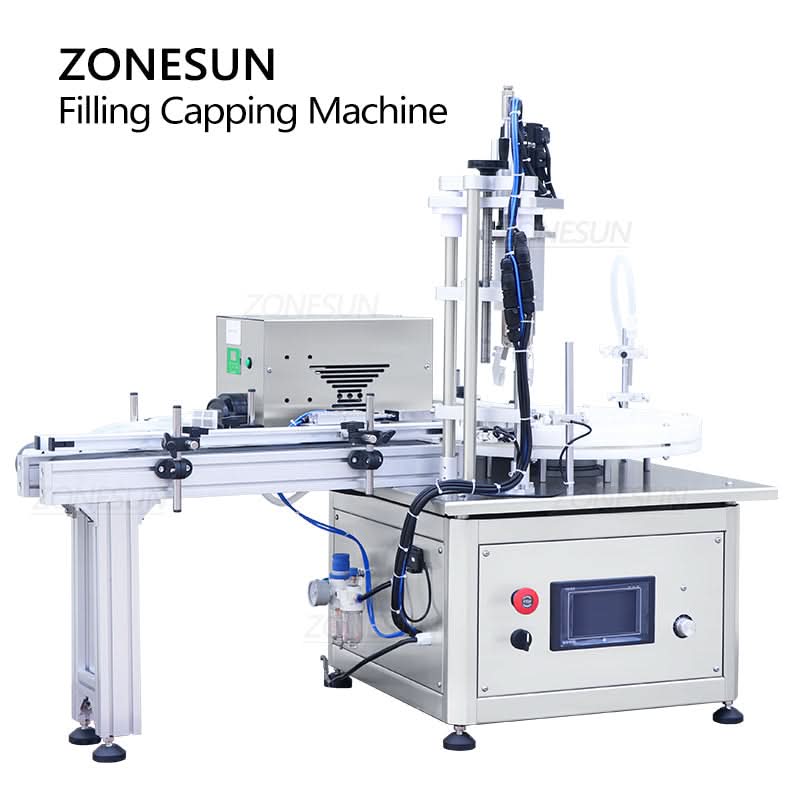

The ZONESUN ZS-AFC1Z is an integrated liquid filling and capping solution featuring a hygienic peristaltic pump system. Designed to prevent product contamination by isolating the liquid from mechanical components, it ensures precise dosing and easy maintenance. Ideal for packaging small volumes of skincare products, eye drops, inks, and similar liquids. Its compact design and conveyor system support smooth, automated operation for light industrial production.
Specification
Model ZS-AFC1Z
Machine Voltage & Power 110V / 220V, 50–60Hz, 500W
Pump Type Peristaltic pump
Suitable Bottle Diameter 10–40mm
Filling Range ≤100ml
Bottle Height ≤120mm (customizable for taller bottles)
Cap Diameter Customized
Filling Nozzle Size Customized
Working Speed 20–50 bottles/min (depends on liquid & bottle size)
Conveyor Belt Size Approx. 670 × 80mm
Package Size Approx. 1200 × 700 × 1100mm
Package Weight Approx. 128kg

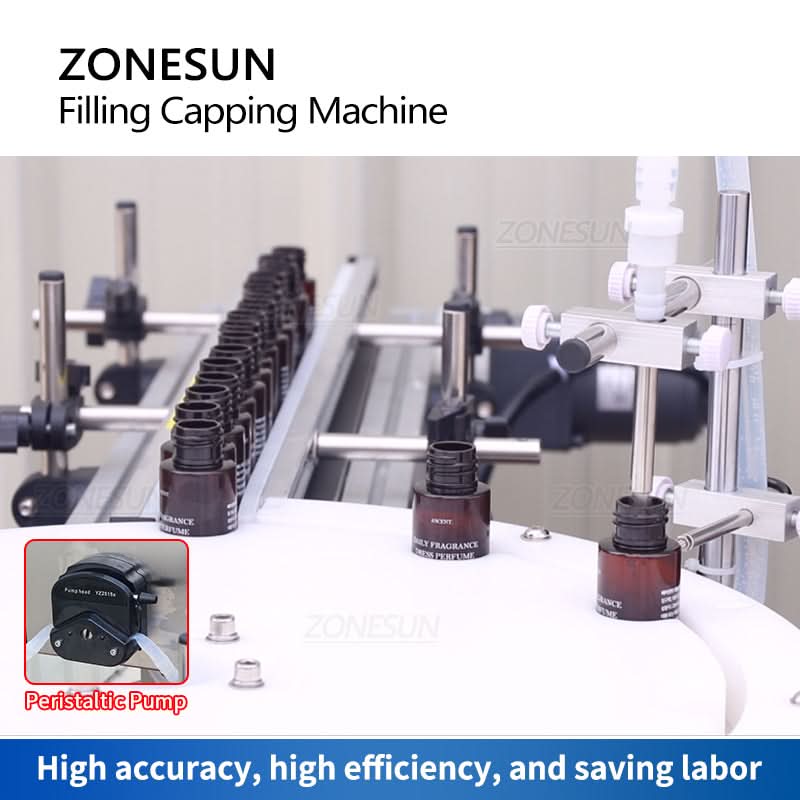

PERISTALTIC PUMP
Product contacts only the pump tubing, and the tubing can be changed quickly when switching materials.

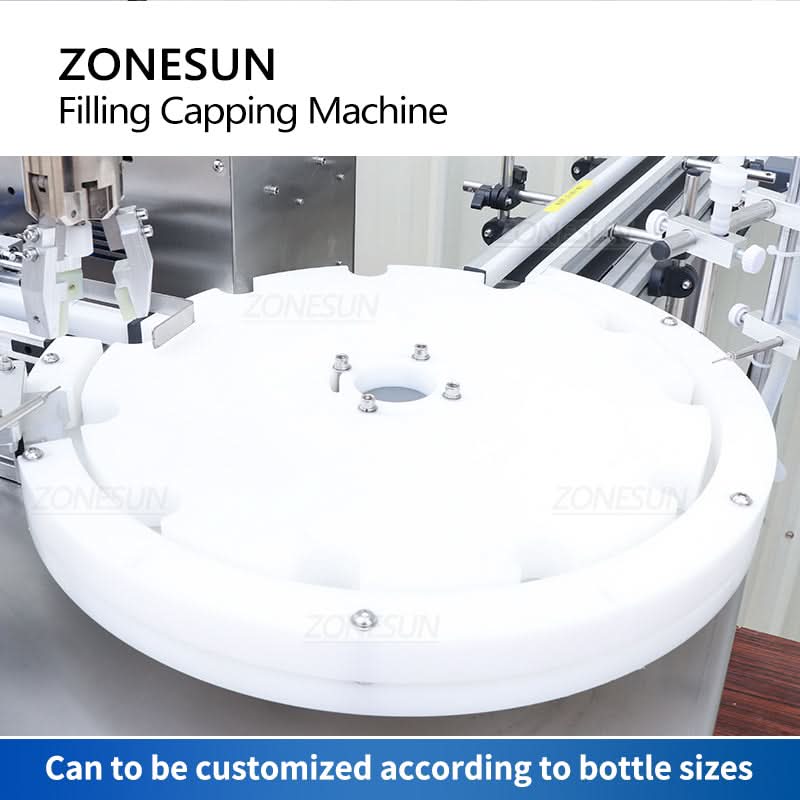

ROTARY PLATE
The rotary plate transfers bottles steadily to the next process and is customized to suit the bottle size.

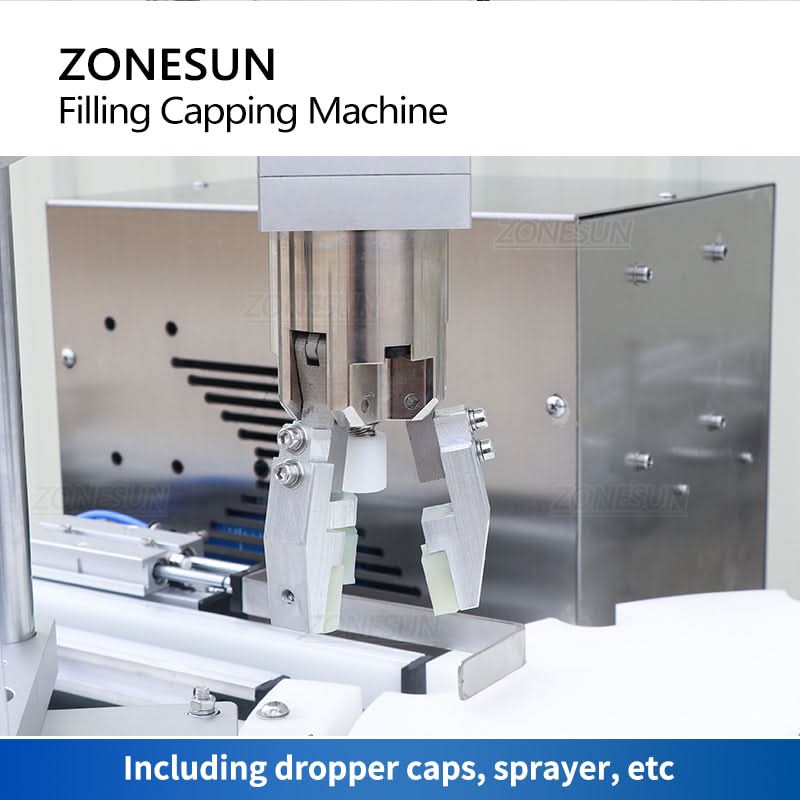

CAPPING CLAW
The capping claw closes different screw-cap styles, including dropper and spray caps.
TOUCHSCREEN CONTROL PANEL
Working parameters can be set and viewed on the touchscreen for straightforward operation.

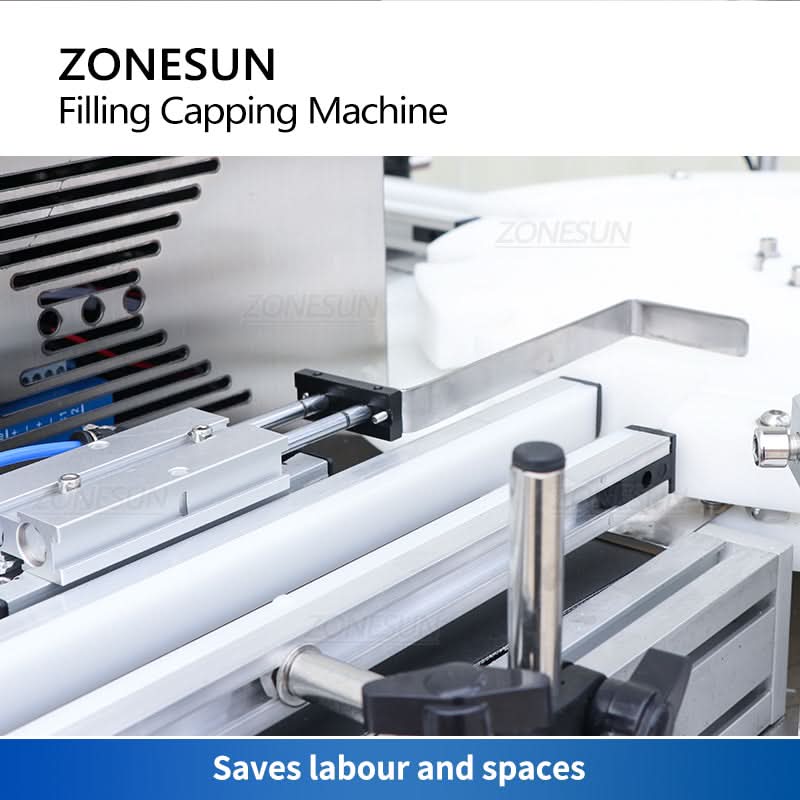

DUAL CONVEYORS
Conveyors at both ends of the machine support efficient bottle transfer through the process.
