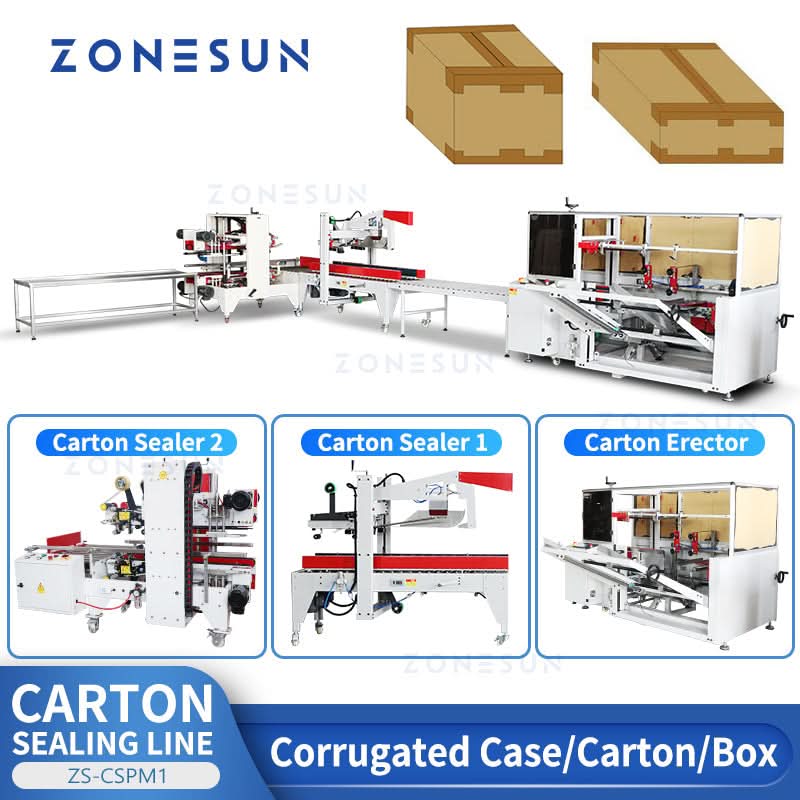

ZONESUN ZS-CSPM1 Automatic Carton Sealing Production Line carton sealing tape machine carton sealing tape dispensers
DESCRIPTION

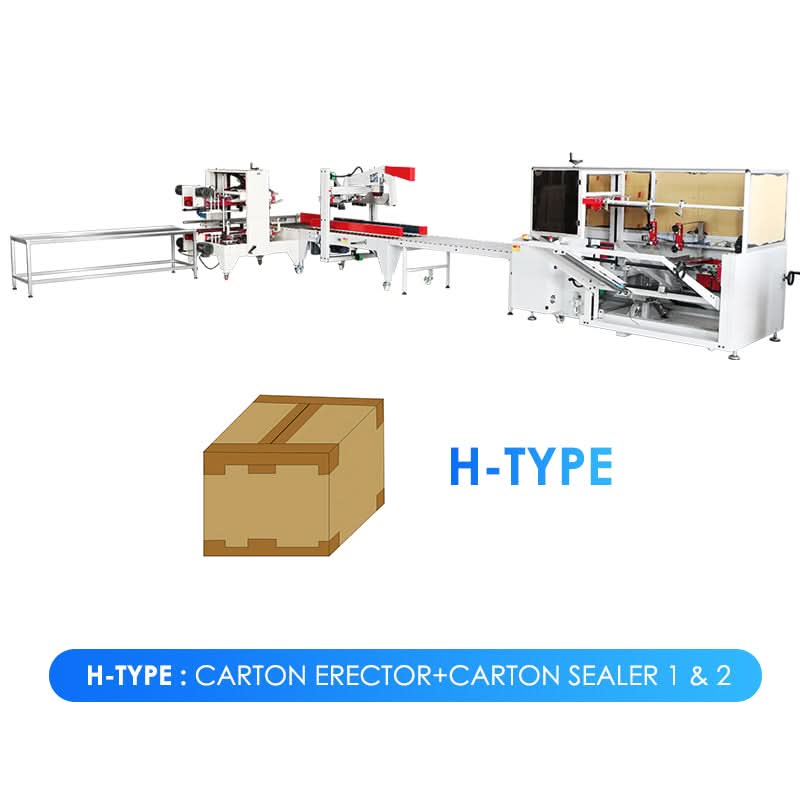

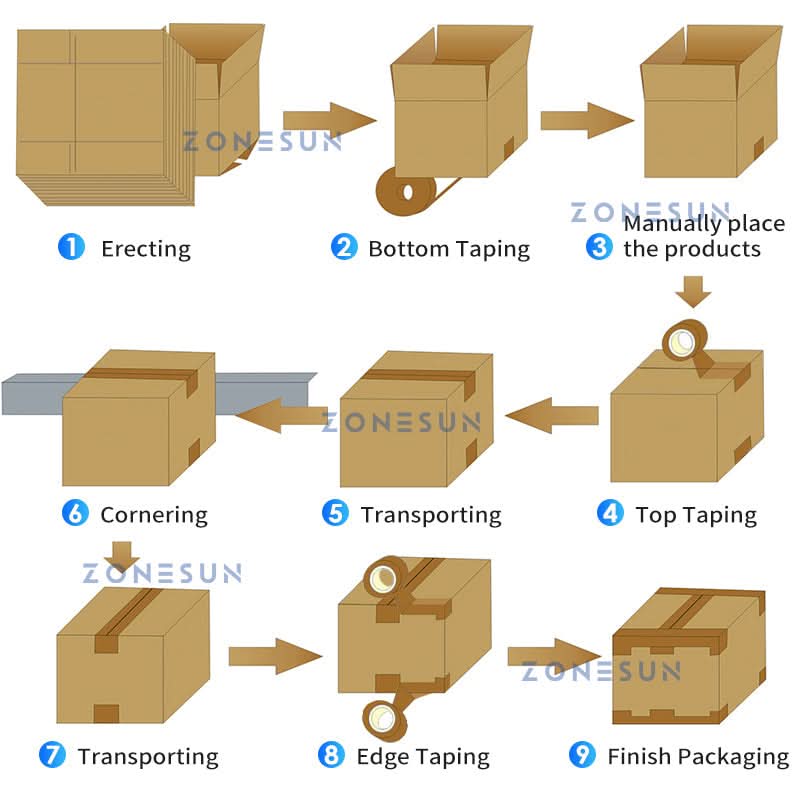

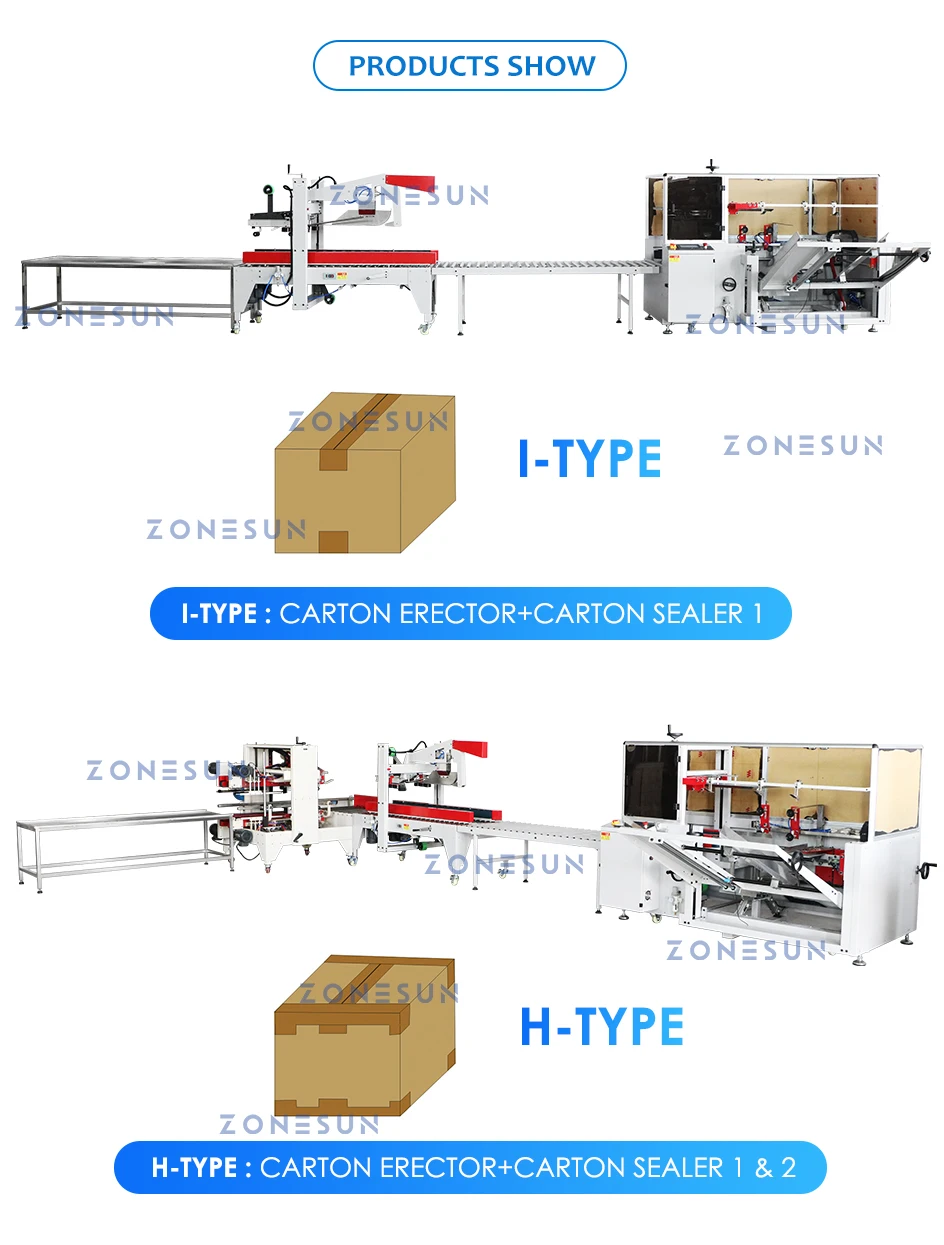

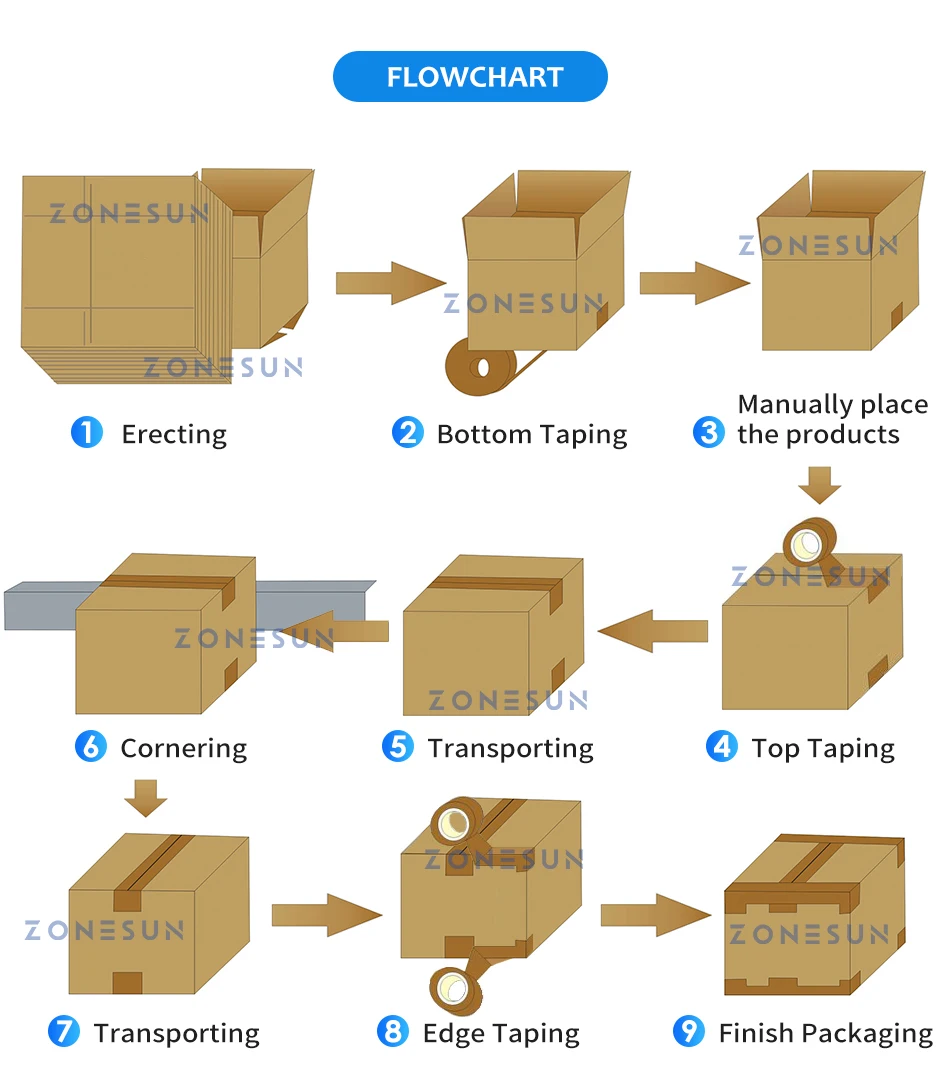

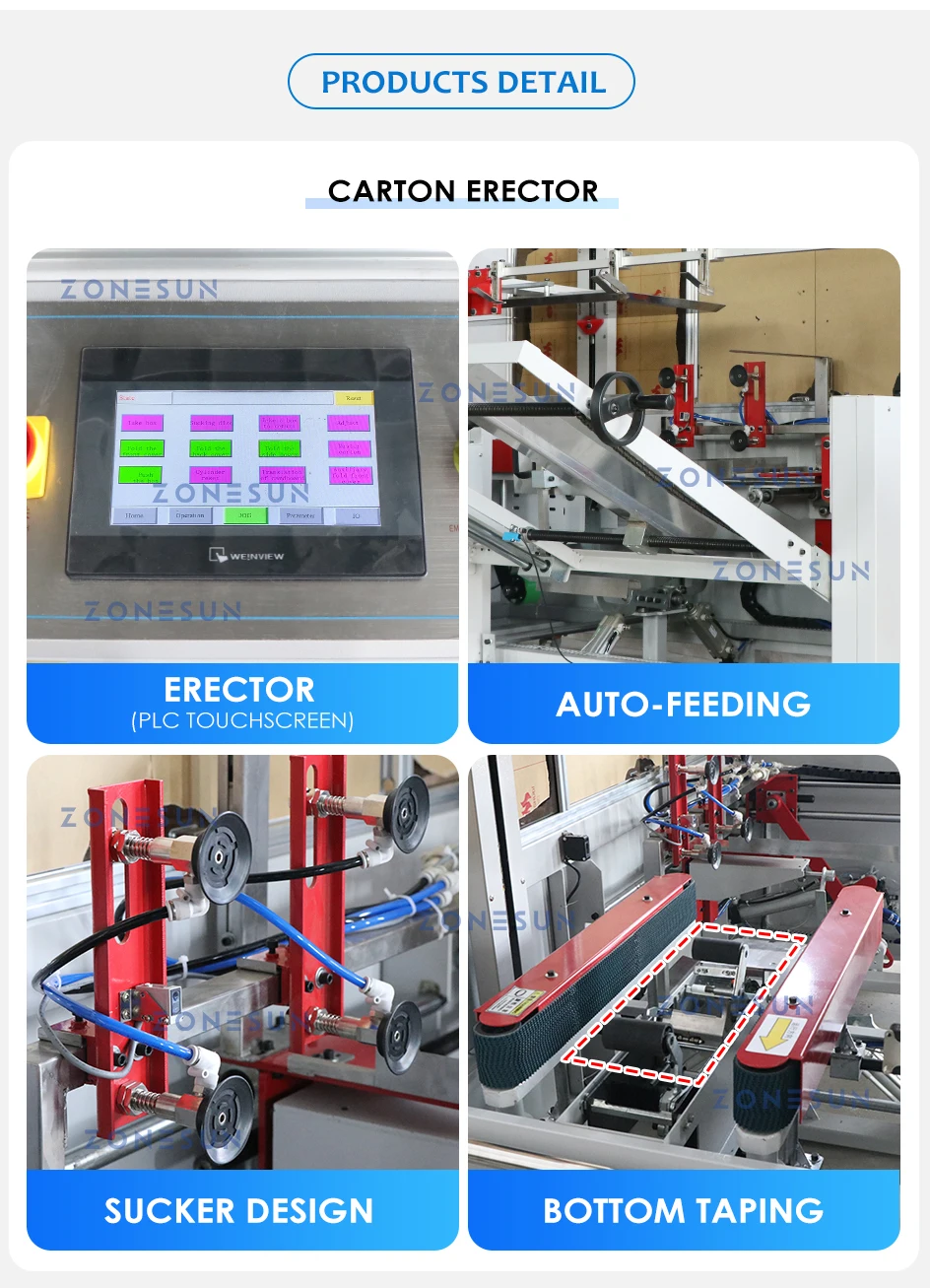

This is a packaging line that seals boxes closed. It includes a carton erector and 2 sealers. The erector forms the carton and do the bottom sealing. The carton sealers apply tape directly to a corrugated case and ensures that it is secured tightly so that it won't break open during shipping or handling. One major benefit is that the machine always knows the precise amount of tape to use, meaning that it will not waste unnecessary materials. This line can bring an H-type sealing effect.
PARAMETER
|
Machine |

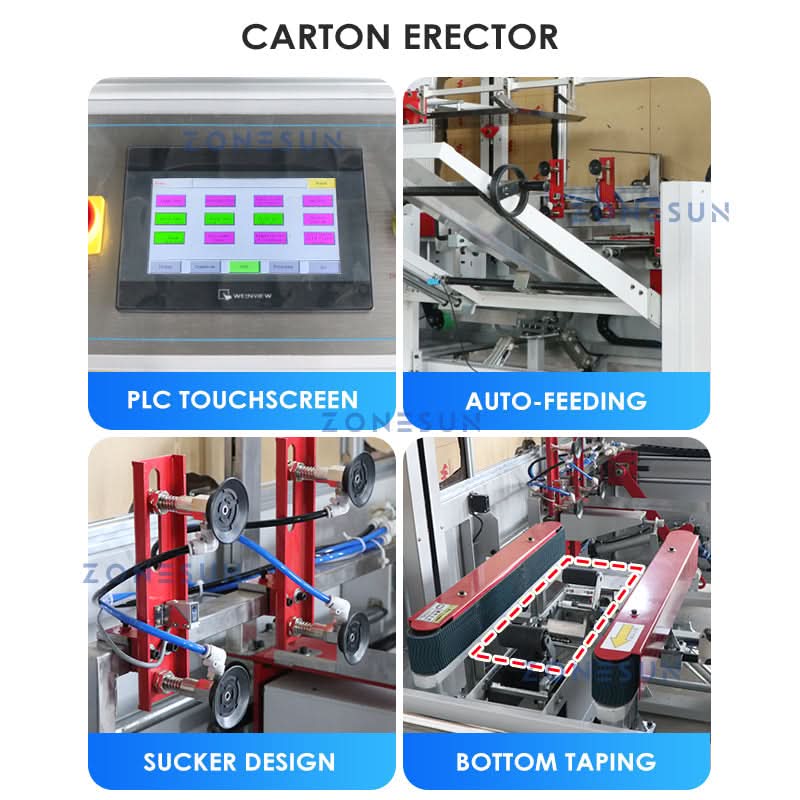

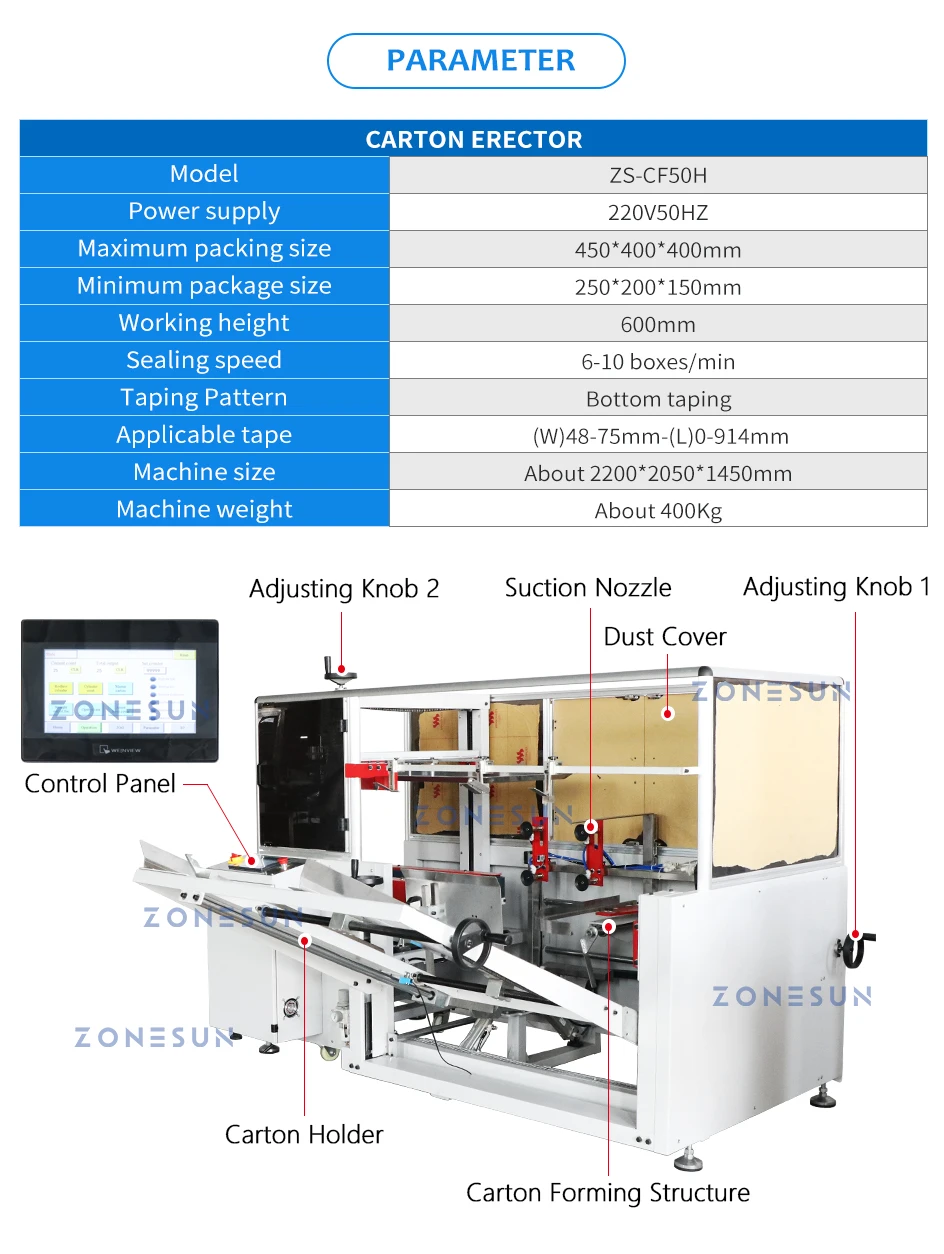

Carton Erector |
|
Model |
ZS-CF50H |
|
Power supply |
220V50HZ |
|
Maximum packing size |
450*400*400mm |
|
Minimum package size |
250*200*150mm |
|
Working height |
600mm |
|
Sealing speed |
6-10 boxes/min |
|
Taping Pattern |
Bottom taping |
|
Applicable tape |
(W)48-75mm-(L)0-914mm |
|
Machine size |
About 2200*2050*1450mm |
|
Machine weight |
About 400Kg |
|
Machine |

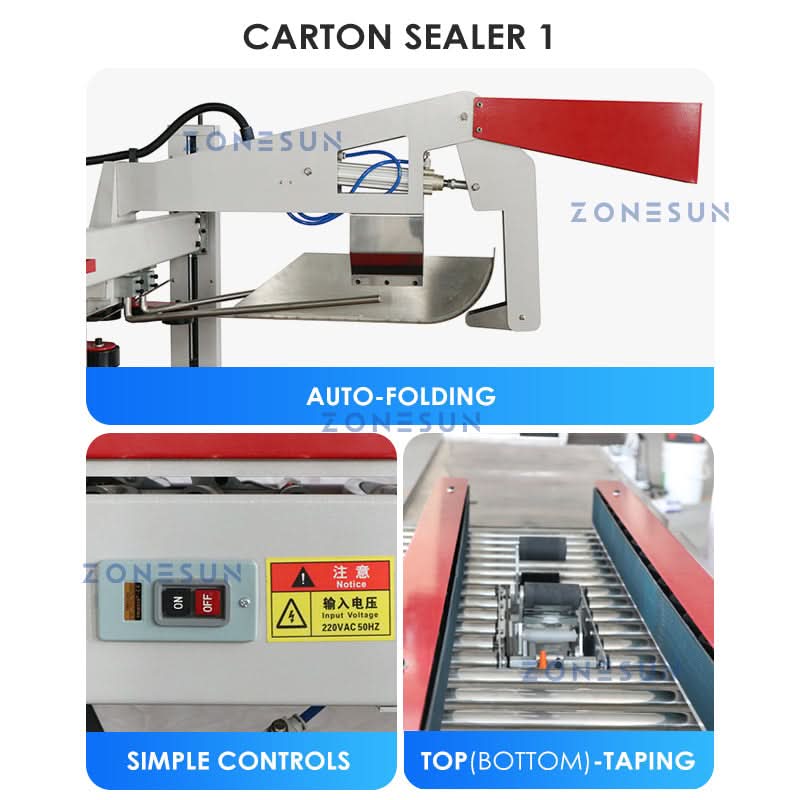

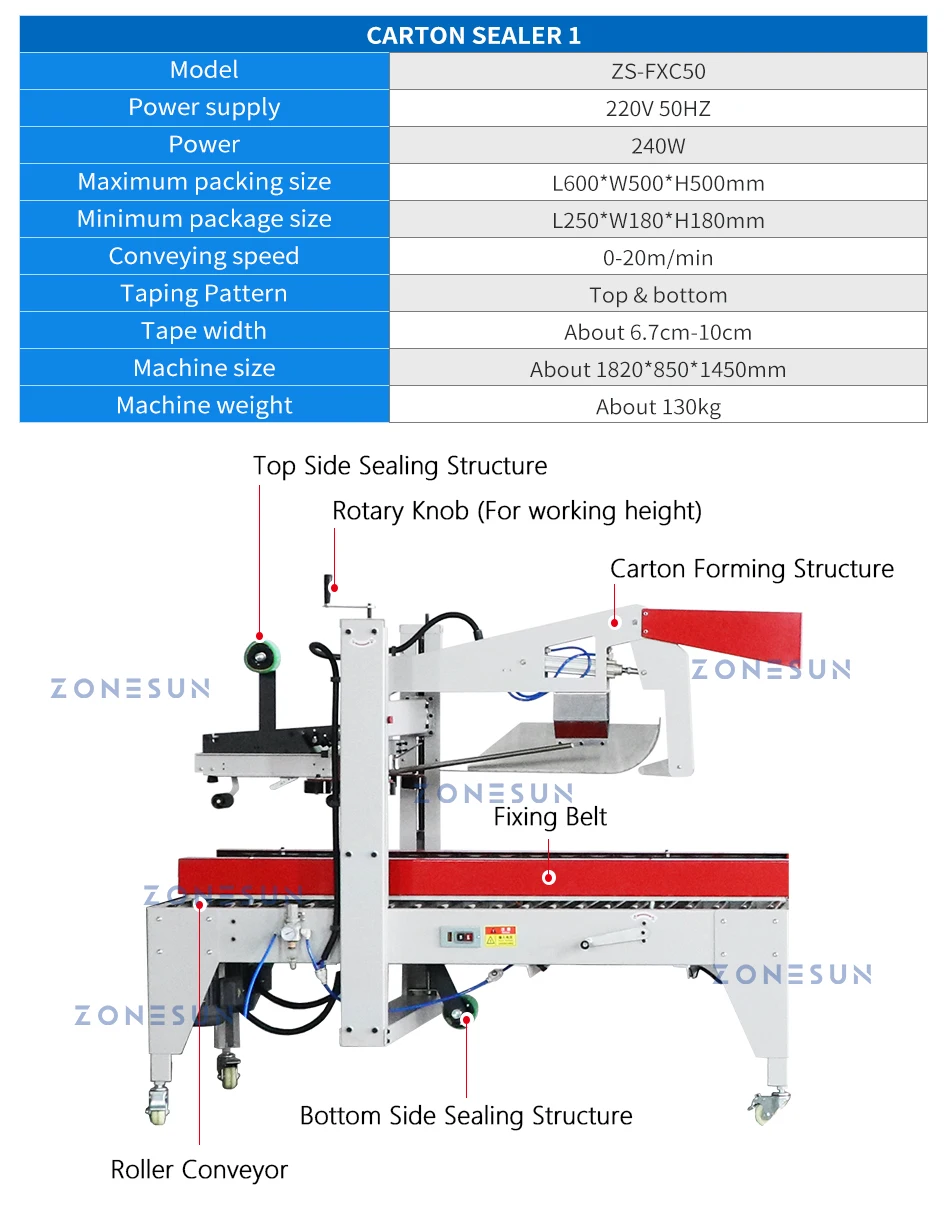

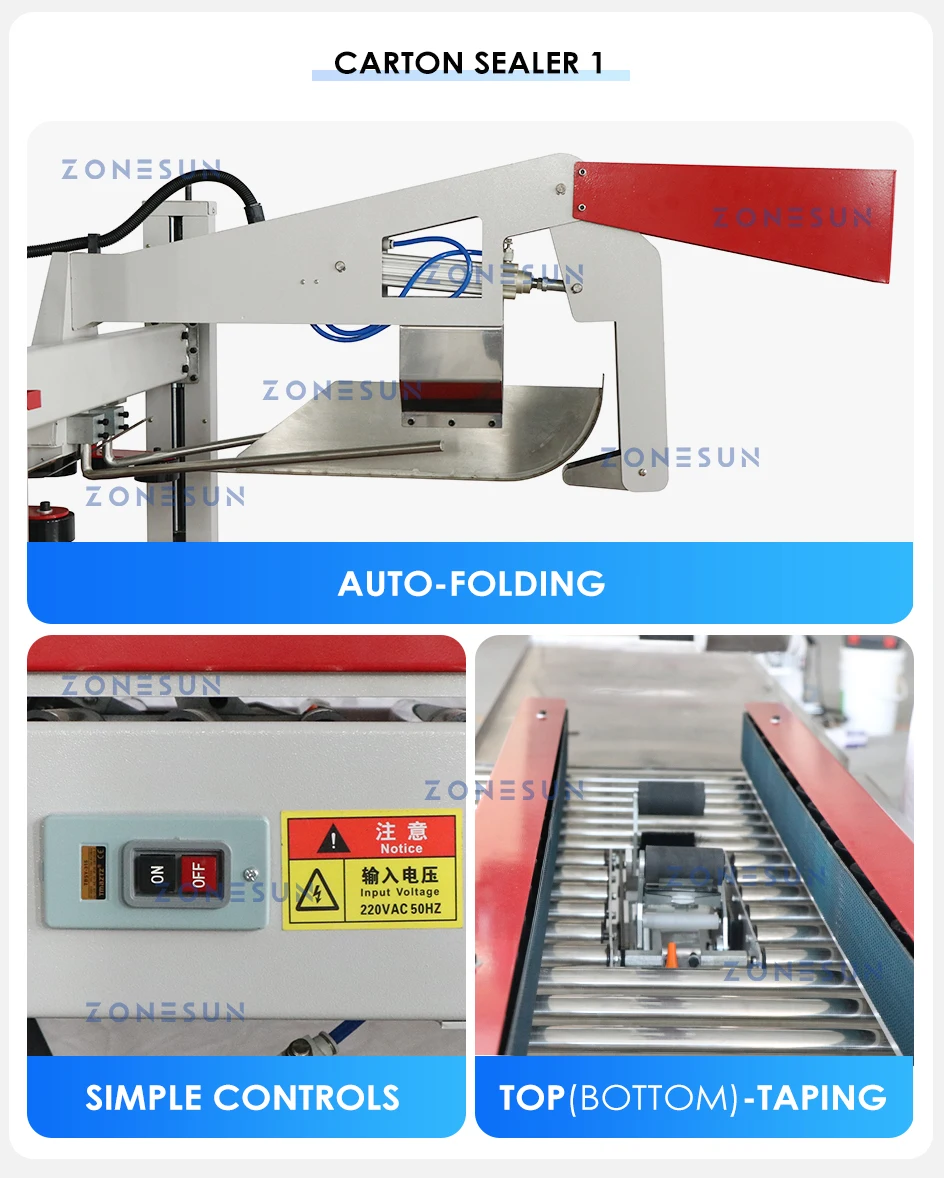

Carton Sealer 1 |
|
Model |
ZS-FXC50 |
|
Power supply |
220V 50HZ |
|
Power |
240W |
|
Maximum packing size |
L600*W500*H500mm |
|
Minimum package size |
L250*W180*H180mm |
|
Conveying speed |
0-20m/min |
|
Taping Pattern |
Top & bottom |
|
Tape width |
About 6.7cm-10cm |
|
Machine size |
About 1820*850*1450mm |
|
Machine weight |
About 130kg |
|
Machine |

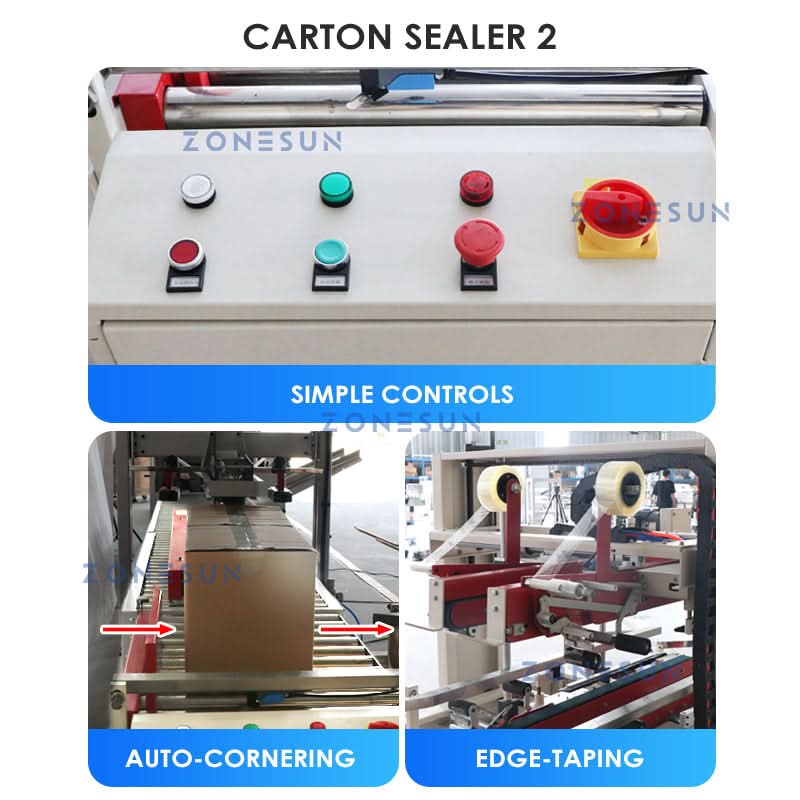

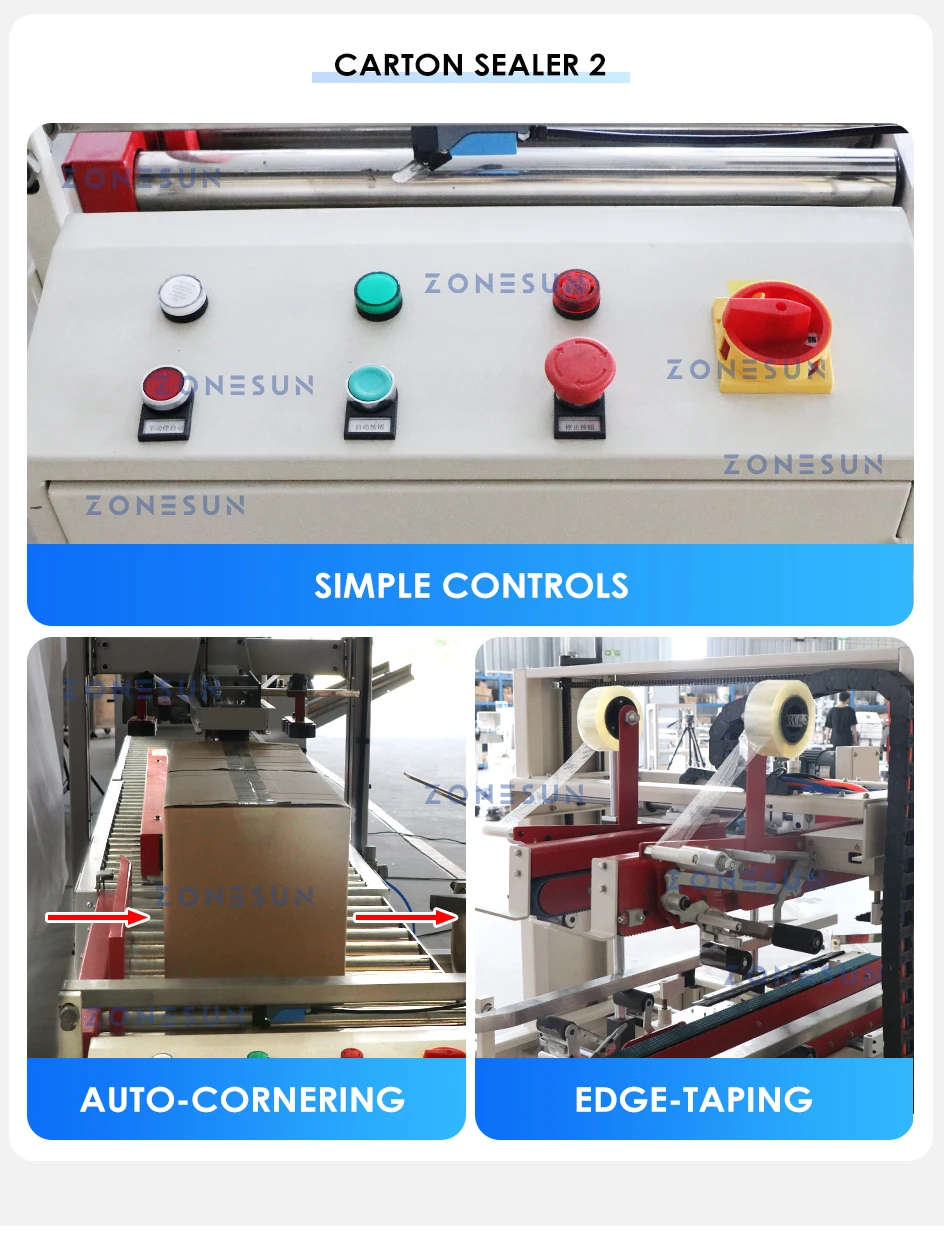

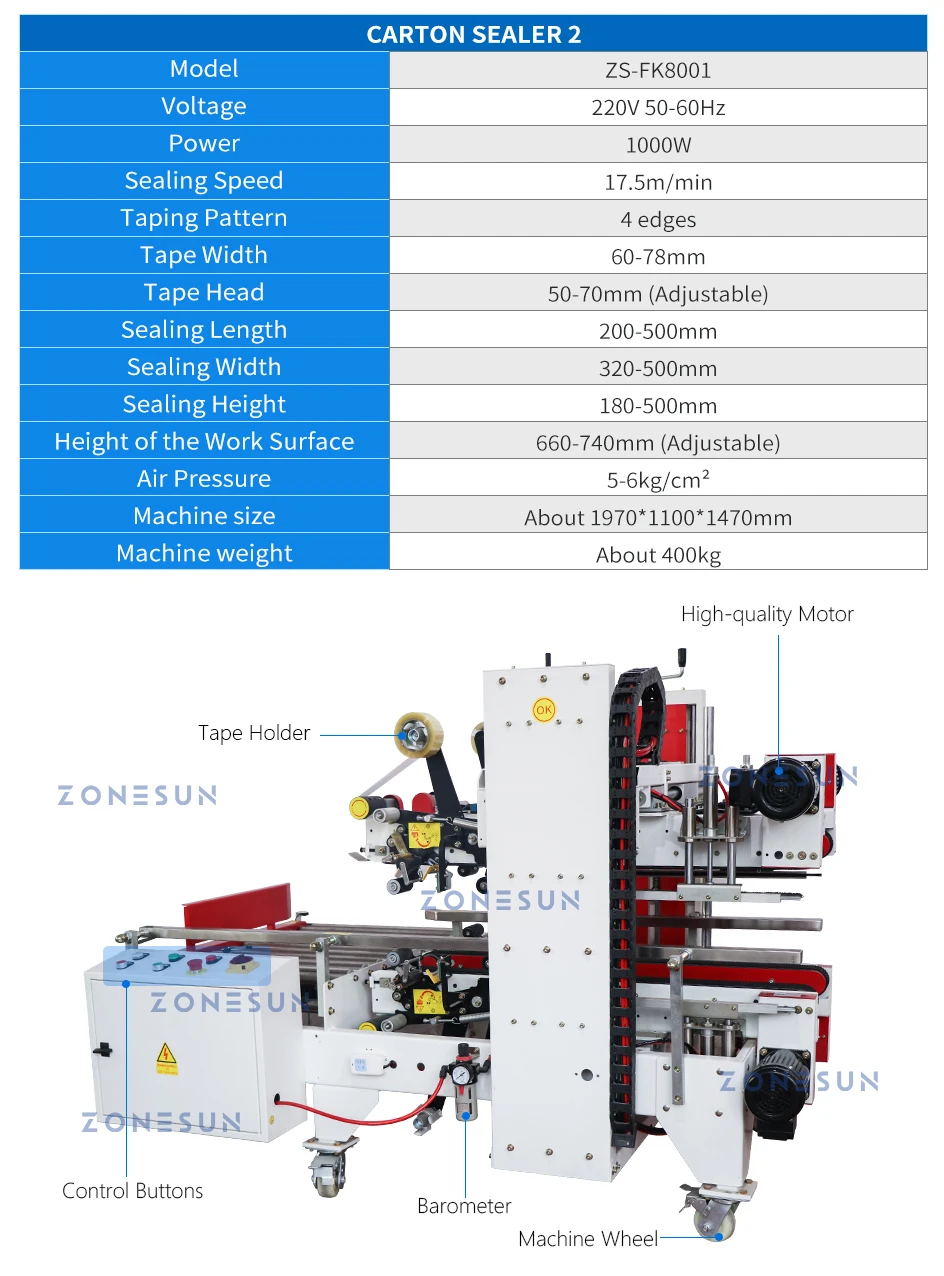

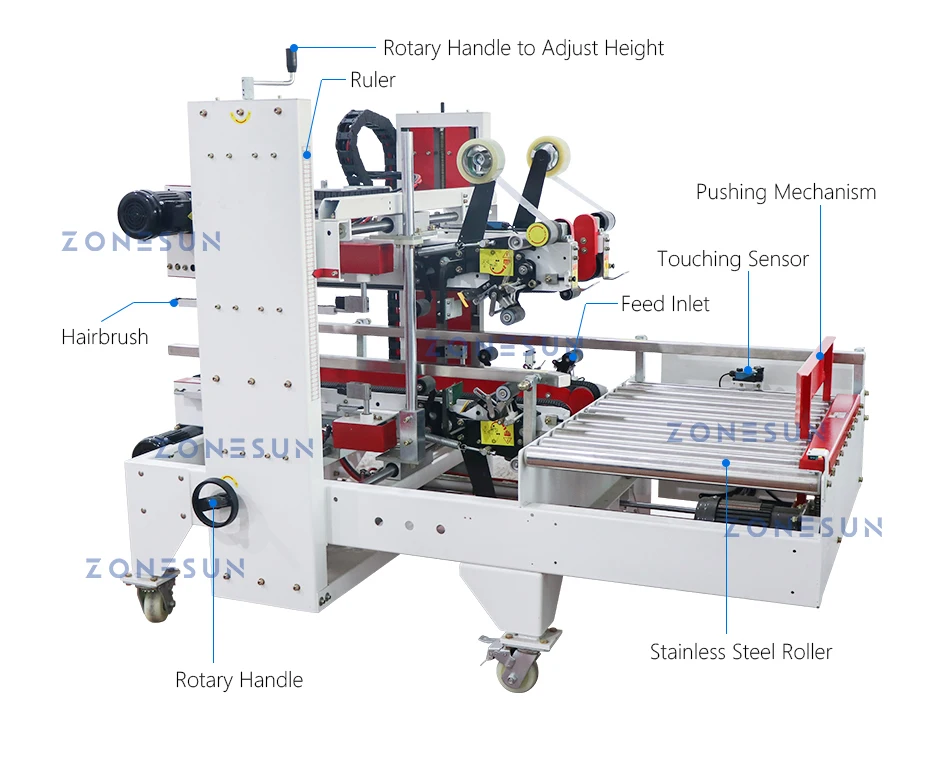

Carton Sealer 2 |
|
Model |
ZS-FK8001 |
|
Voltage |
220V 50-60Hz |
|
Power |
1000W |
|
Sealing Speed |
17.5m/min |
|
Taping Pattern |
4 edges |
|
Tape Width |
60-78mm |
|
Tape Head |
50-70mm (Adjustable) |
|
Sealing Length |
200-500mm |
|
Sealing Width |
320-500mm |
|
Sealing Height |
180-500mm |
|
Height of the Work Surface |
660-740mm (Adjustable) |
|
Air Pressure |
5-6kg/cm² |
|
Machine size |
About 1970*1100*1470mm |
|
Machine weight |
About 400kg |
