ZONESUN ZS-FE1 Automatic Dry Powder Fire Extinguisher Filling Sealing Labeling Production Line
DESCRIPTION

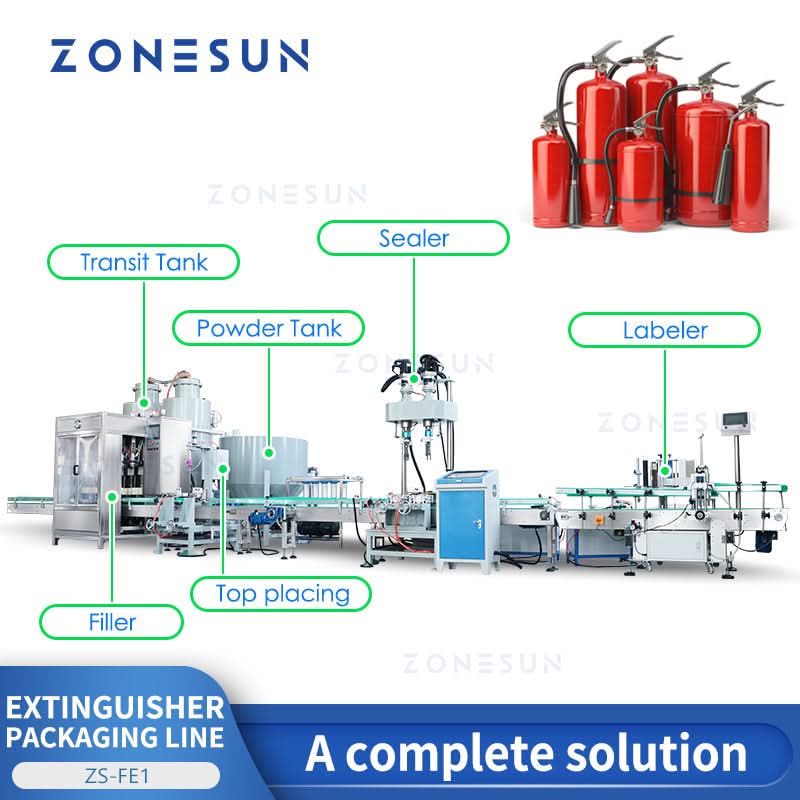

This is a dry chemical extinguisher packaging line for a buyer from Spain. The process including powder feeding, filling, oil greasing, top placing, body turning, top sealing and label applying. The angle between the handles and the wall hook can be 90 degrees. We offer a complete solution to any production needs.
PARAMETER
|
Filling Machine |
|
|
Model |
ZS-FM6A |
|
Power |
About 4KW |
|
Filling range |
6-8kg each head (Customizable) |
|
Quantity of filling head |
4 |
|
Working speed |
About 500 bottles/hour |
|
Machine size |
About 1300*1300*2000mm |
|
Sealing Machine |
|
|
Model |
ZS-XG22 |
|
Power |
About 3.5KW |
|
Quantity of capping head |
2 |
|
Working speed |
About 500 bottles/hour |
|
Machine size |
About 900*900*1850mm |
|
Labeling Machine |
|
|
Capacity |
15pcs/min |
|
Applicable Product Size |
Custom |
|
Label Size |
Custom |
|
Size |
215*110*144cm |
PRODUCT DETAILS

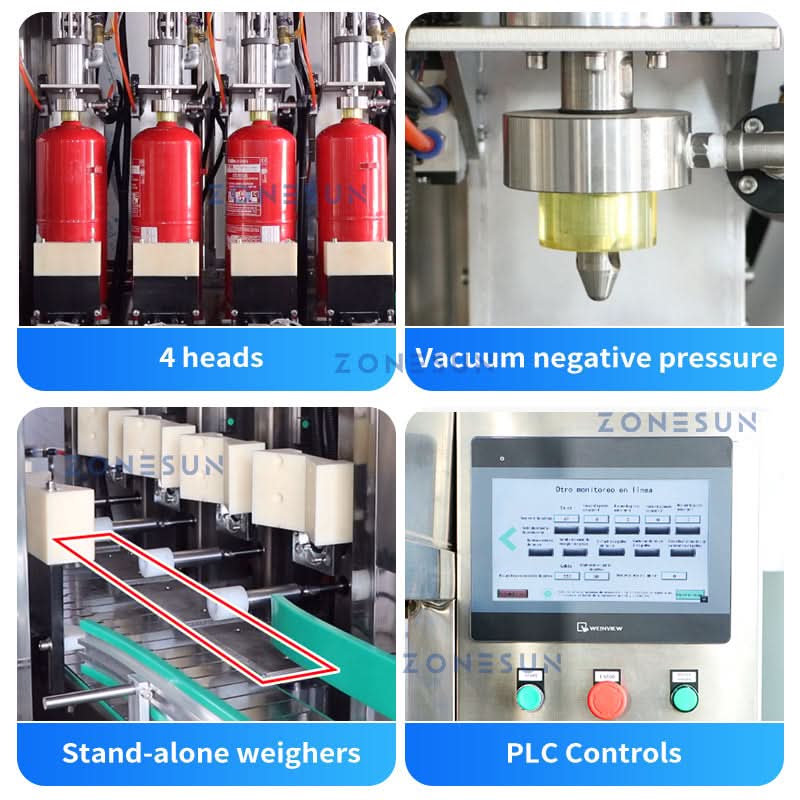

FILLER
4 heads, 4 stand-alone weighers, PLC controls. Vacuum negative pressure method, weigh-to-fill.

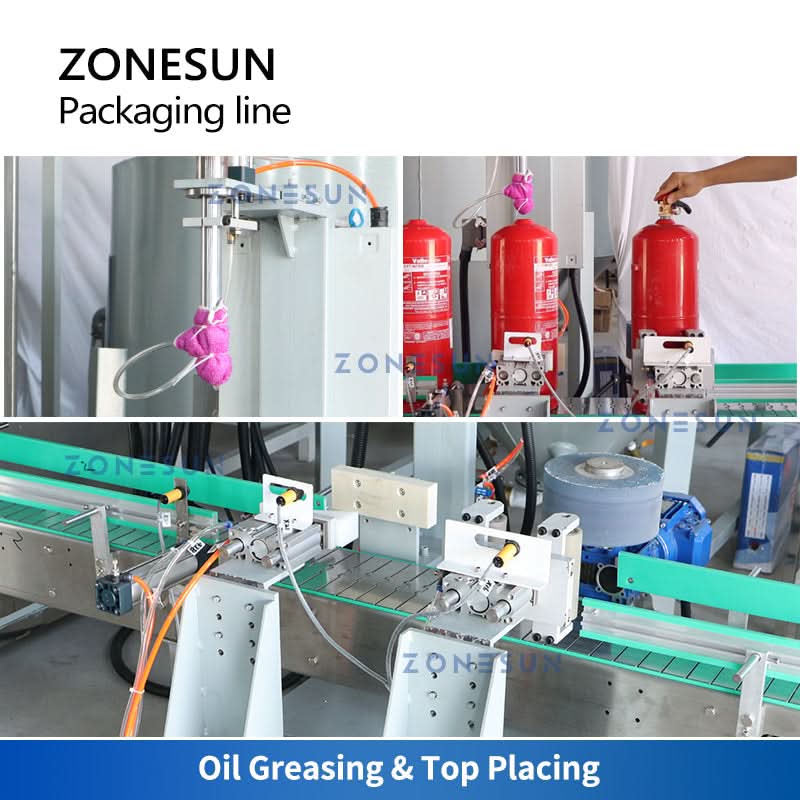

OIL GREASING & TOP PLACING
Automatically grease the opening, manually place the top with a footswitch.

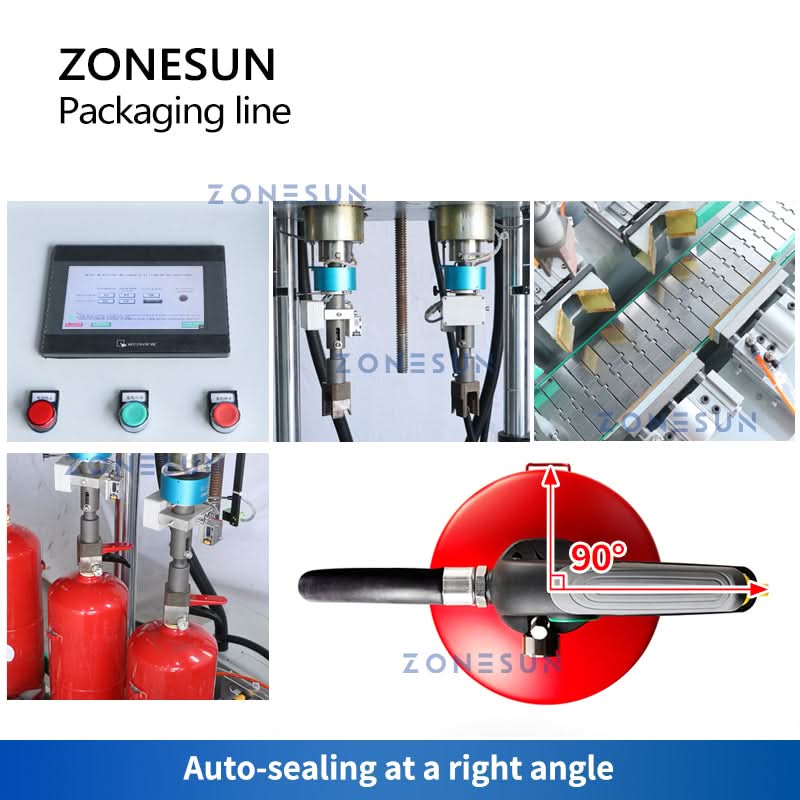

SEALING
Automatically detect the handles, clamp them and screw them to seal. The angle between the handles and the wall hook can be 90 degrees.

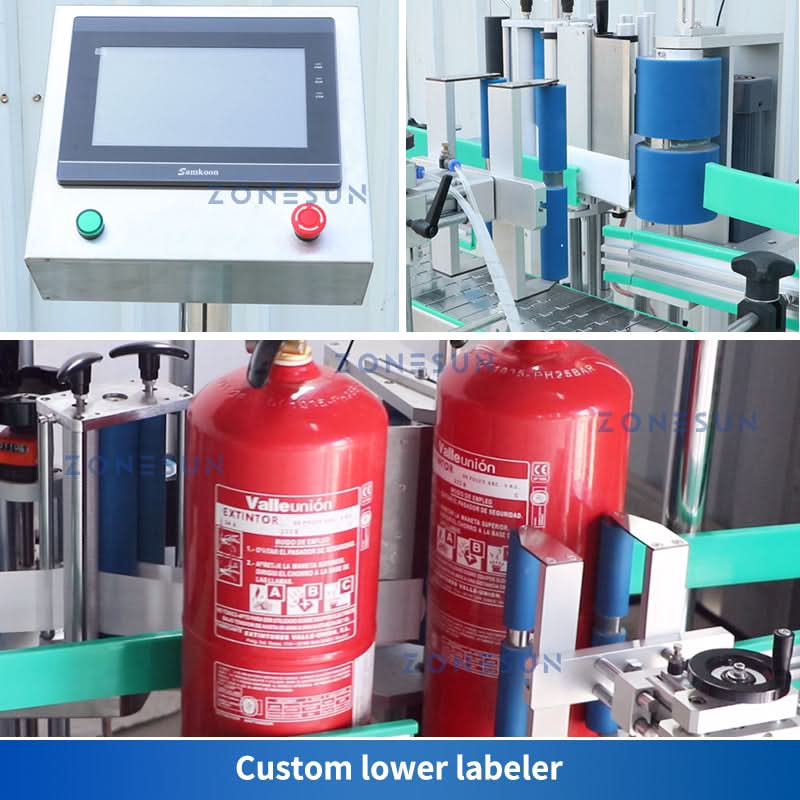

LABELING
Custom lower labeler, date coder as an optional extra.
