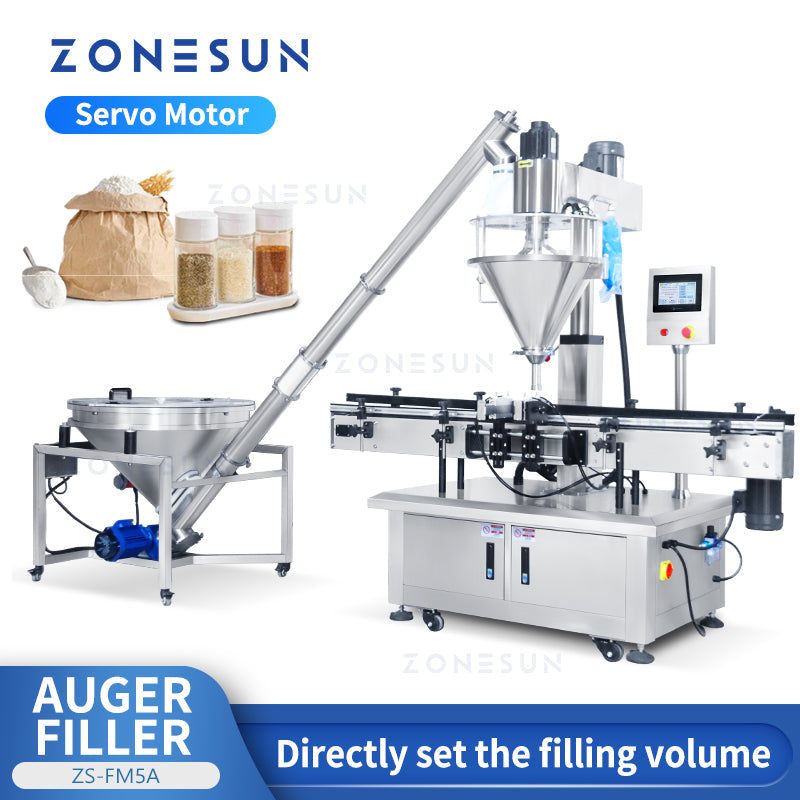

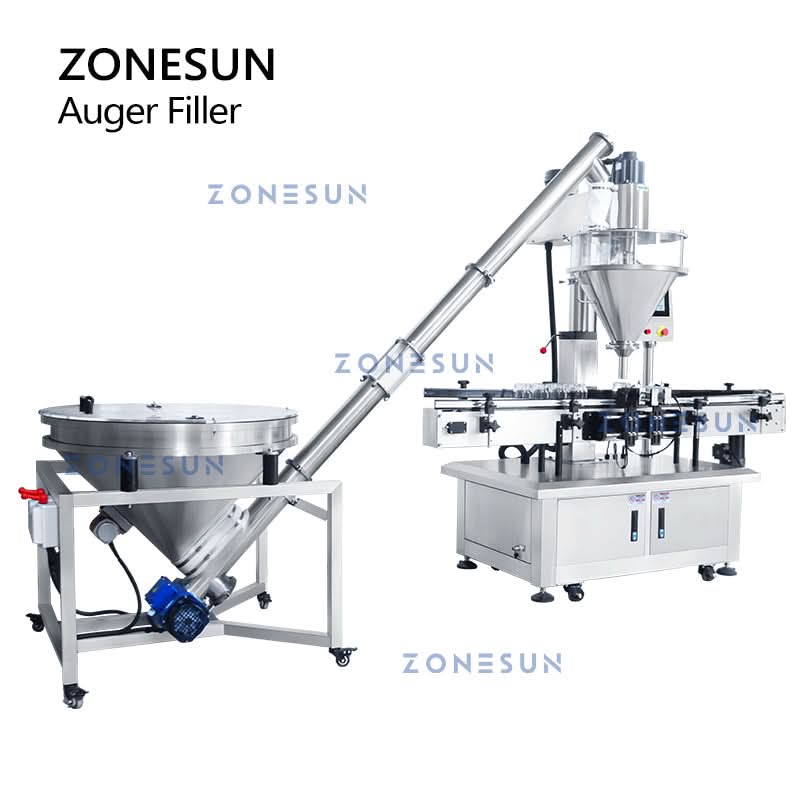

ZONESUN ZS-FM5A Servo Motor Automatic Auger Powder Feeding Filling Machine
DESCRIPTION
This filling machine is used to fill powder. With a servo motor, users can directly set the filling amount. It comes with a vibrating feeder. It can work with an automatic capping machine and a labeling machine to form a powder production line.
PARAMETER
|
Machine model |
ZS-FM5A |
|
Machine voltage |
380V 50Hz/60Hz |
|
Power |
2.2kW(Filler)+1.1kW(Feeder) |
|
Capacity |
15-30 jars/min |
|
Recommended Filling |
10-500g |
|
Hopper size of the feeder |
150L |
|
Feeder pipe diameter |
102mm |
|
Machine size |
About 2000*1000*1980mm |
|
Net weight |
About 200kg |
PRODUCT DETAILS

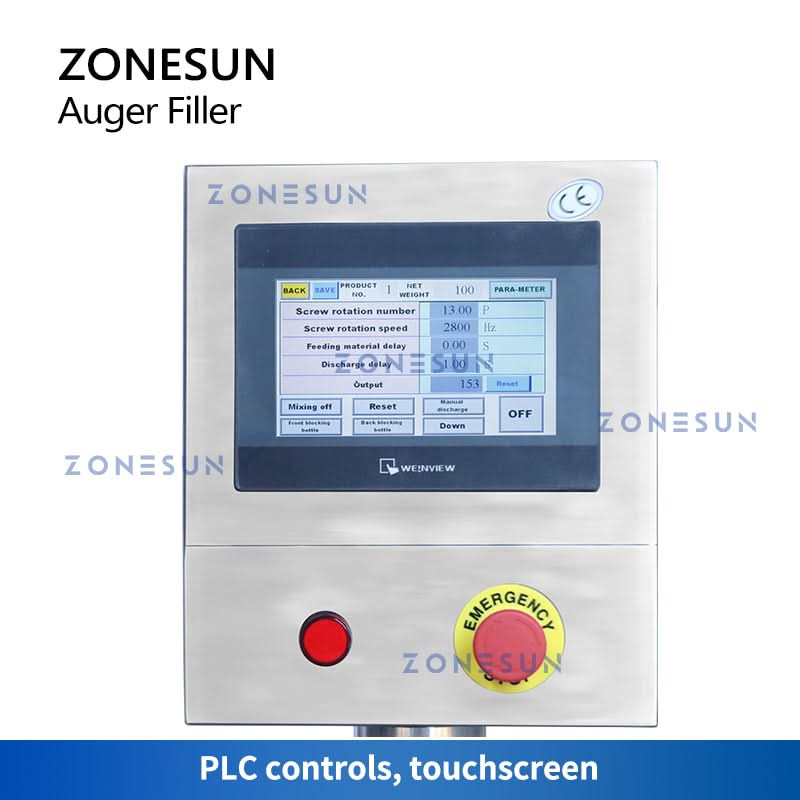

CONTROL PANEL
PLC controls, touch screen, precise selection and adjustment of filling amounts and machine functioning: providing easy setup, operation, and monitoring of the filling operation.

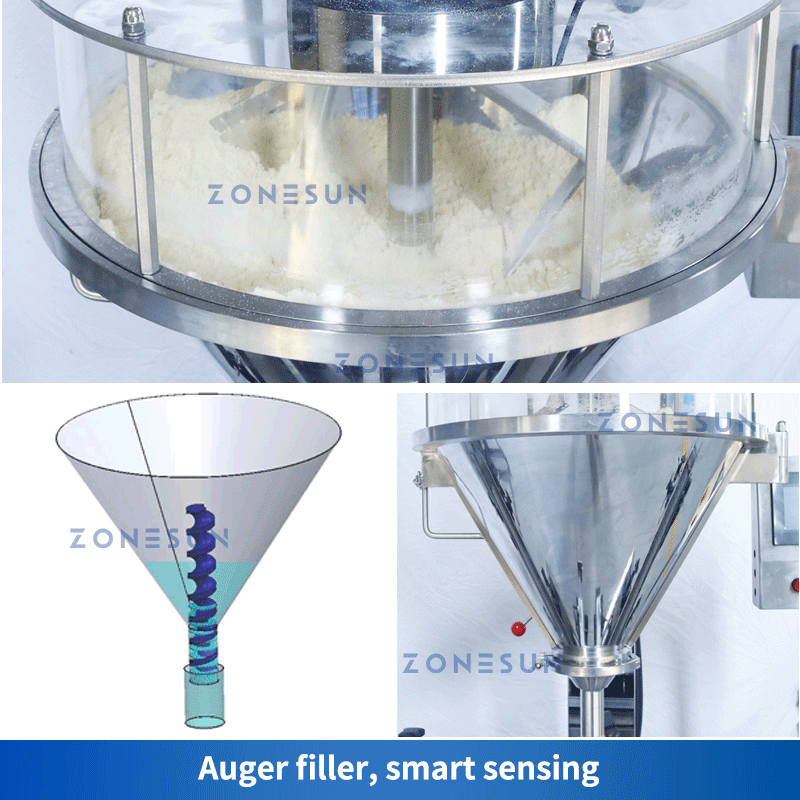

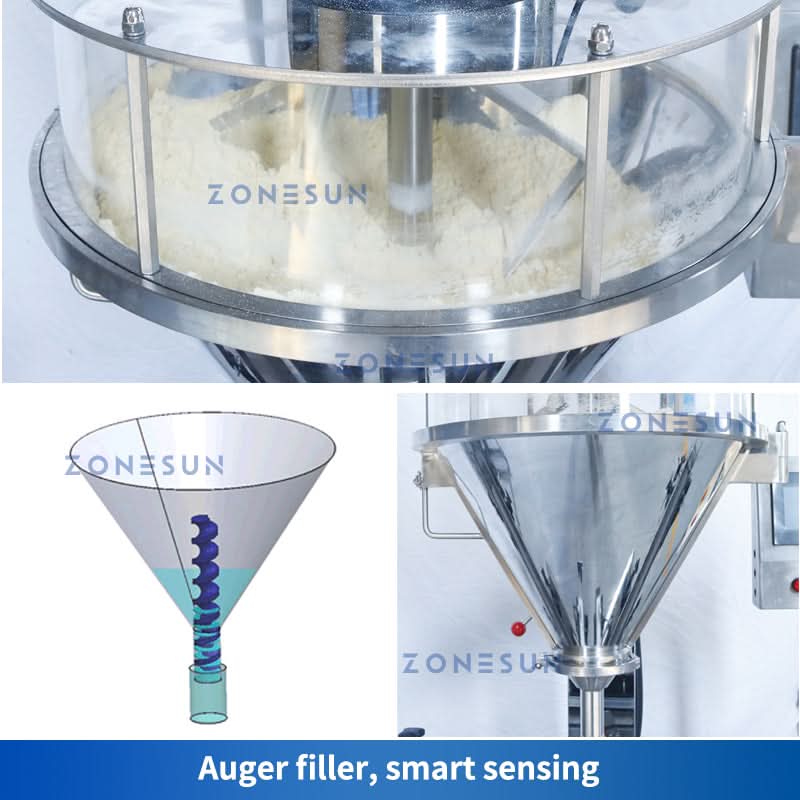

AUGER FILLING
Accurate, easy to adjust the filling head.

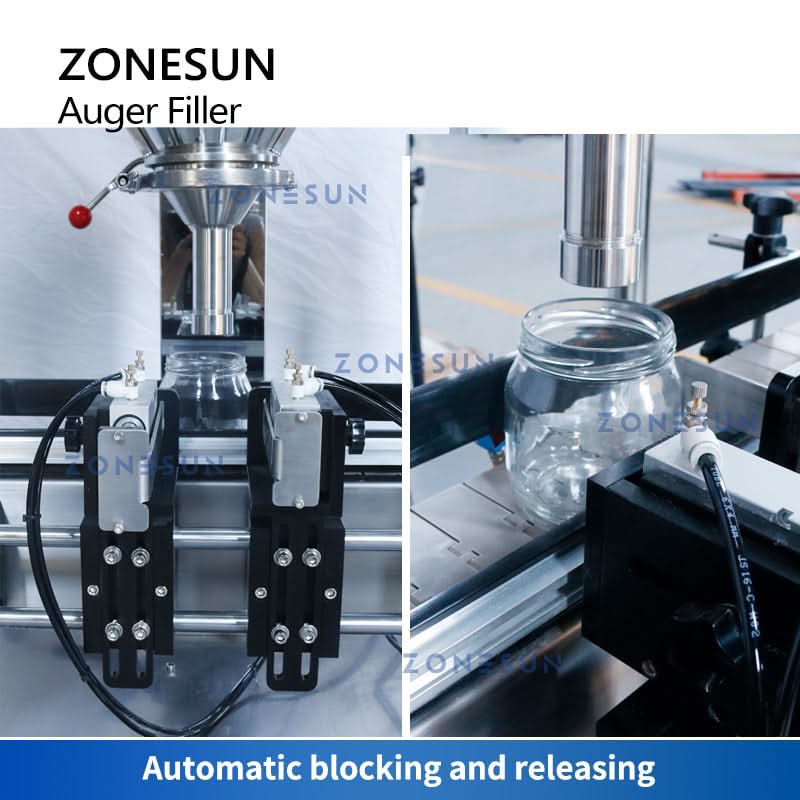

TRANSPORTING
Automatic blocking and releasing.

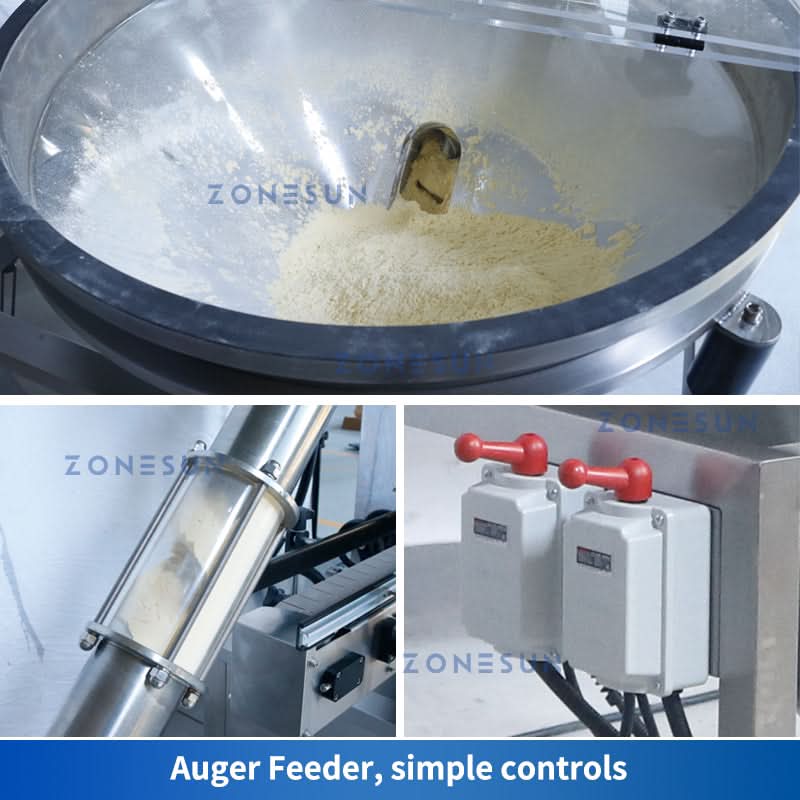

FEEDING
Auger Feeder, simple controls, visible design.
