ZONESUN ZS-GWF Semi-Automatic Granule Weighing Filling Machine - 4 & 6 Heads

Sale price
$1,200.00
List price
$2,400.00
You save
$1,200.00 (50%)

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

We can help coordinate shipping and customs clearance for eligible destinations. Please contact us before ordering to confirm availability, delivery arrangements, and applicable charges.

For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

Import duties, customs clearance fees, local taxes, and other destination charges may apply.

Voltage:110V
Head:4 heads

ZS-GWF Semi-Automatic Granule Weighing Filling Machine

The ZONESUN ZS-GWF is available in 4-head and 6-head configurations for weighing and dispensing granular materials. Select the required head configuration and a 110V or 220V power supply for your application. The product photographs, video and detailed specifications below show the 4-head ZS-GWF4 model. For the 6-head configuration, please contact us for the correct machine photographs and specifications before ordering.

Independent Weighing for Multi-Material Filling

The ZS-GWF4 uses four independent hoppers and weighing channels. Different materials can be weighed separately, then discharged together through a single outlet or released in sequence. This arrangement supports portioning and combining suitable nuts, seeds, grains and other dry granules.

  • Separate channel control: Set the required portion for each of the four weighing channels.
  • Digital adjustment: Use the control panels to adjust target weight and speed and monitor the count.
  • Visible feeding: Inspect material movement through the viewing window.
  • Cleaning access: Cover buckles provide access to the machine interior.

Example: For a four-ingredient pack, each channel can be set to a separate portion and the materials discharged into one container. The applicable weight range and consistency depend on each material; confirm your recipe and test the result before ordering.

Choose Your Configuration

Configuration Voltage Options Selection Guidance
4 heads — ZS-GWF4 110V or 220V Four weighing channels; see the specifications below.
6 heads 110V or 220V Contact us before ordering to confirm the weighing range, power, dimensions, weight and machine photographs for this configuration.

ZS-GWF4 Technical Specifications — 4-Head Model

Parameter Specification
Model ZS-GWF4
Weighing Range 1–100g × 4 channels
Hopper Quantity 4
Vibrator Quantity 4
Weigher Quantity 4
Housing Material 304L Stainless Steel
Voltage 110V or 220V; please confirm the required local frequency before ordering
Power 380W
Margin of Error ±0.2 g (reference; actual accuracy depends on the material and target weight)
Machine Size 80 × 49 × 86cm
Net Weight 50kg

Specification note: The table above applies to the 4-head ZS-GWF4 only. The stated 1–100g range is per weighing channel; it is not a guaranteed fill weight for every material or container. Please confirm the achievable accuracy for your material and target weight before ordering; do not apply these specifications to the 6-head version.

Materials and Application Checks

Typical applications include nuts, seeds, grains and similar dry granular products. For fine powders, damp or sticky products, or irregular pieces, contact us with your material details and target fill weight to confirm suitability and arrange a filling test where needed.

Frequently Asked Questions

Is this a complete automatic bag packing machine?

This is a semi-automatic weighing and dispensing machine. Plan for operator handling of the receiving containers. Bag forming and sealing require separate equipment.

How does the 4-head filling process work?

Load the materials into the hoppers, set the required weights and speeds, position a receiving container beneath the outlet, and operate the machine. The four channels can discharge together or in sequence.

Does the machine mix ingredients evenly?

The ZS-GWF4 can weigh different materials separately and discharge them through a shared outlet. Even mixing is not guaranteed; please confirm your product requirements and request a test if needed.

How fast can it fill?

Output depends on material flow, fill weight, the number of ingredients and operator handling. Contact us with your product and required output for a suitable test or recommendation.

What should I confirm before choosing a configuration?

Provide the material name, particle size, target weight per ingredient, receiving container and required output. Confirm the head configuration, voltage and local power frequency with us before ordering.

Explore our granule filling machines or powder and granule filling machines to compare other options.

ZS-GWF4 Machine Details — 4-Head Model Shown

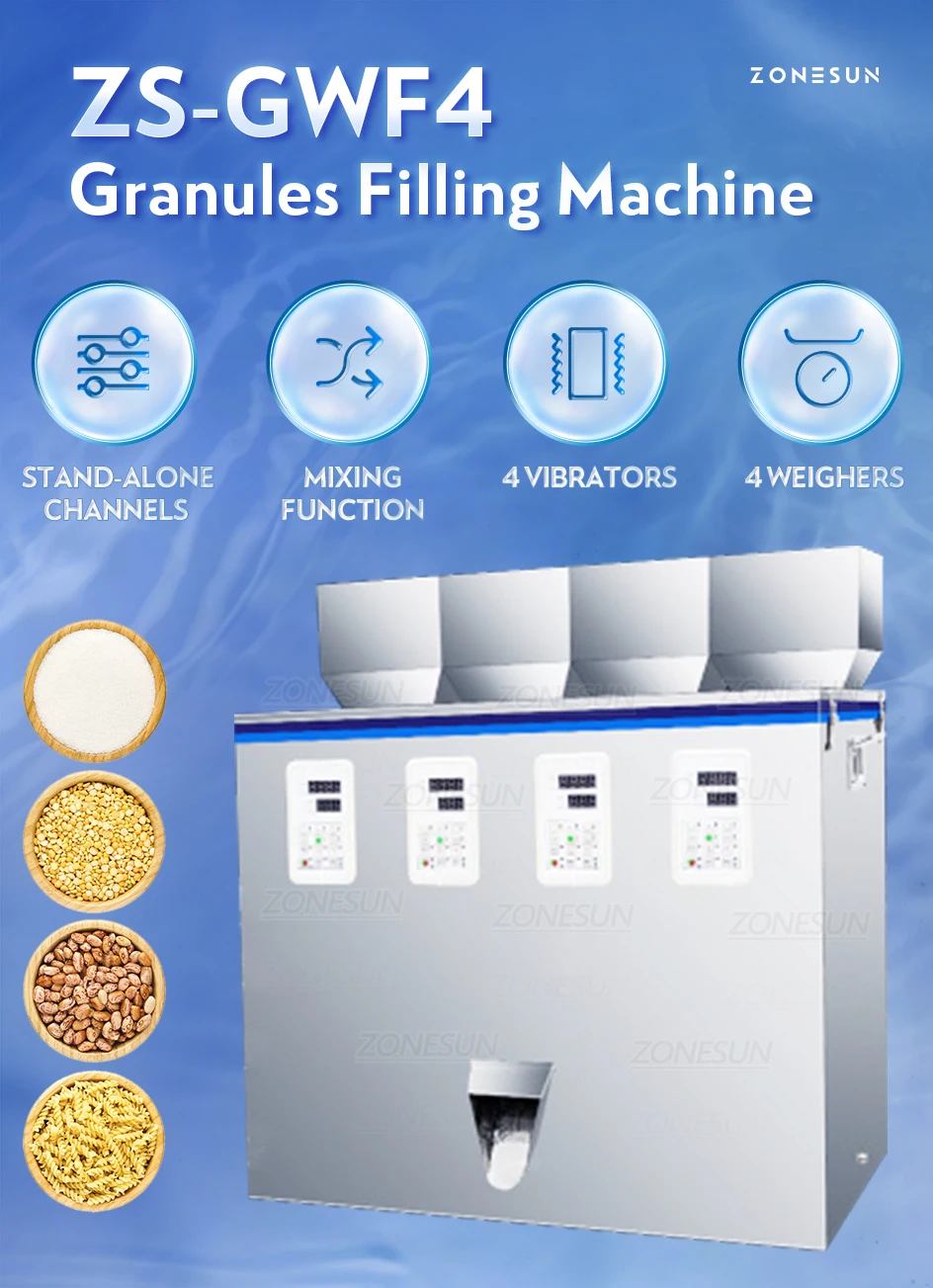

ZONESUN ZS-GWF4 four-channel granule weighing filler and example materials
Example dry granular materials including nuts, spices and small hardware
ZS-GWF4 four-head technical specifications and main machine components

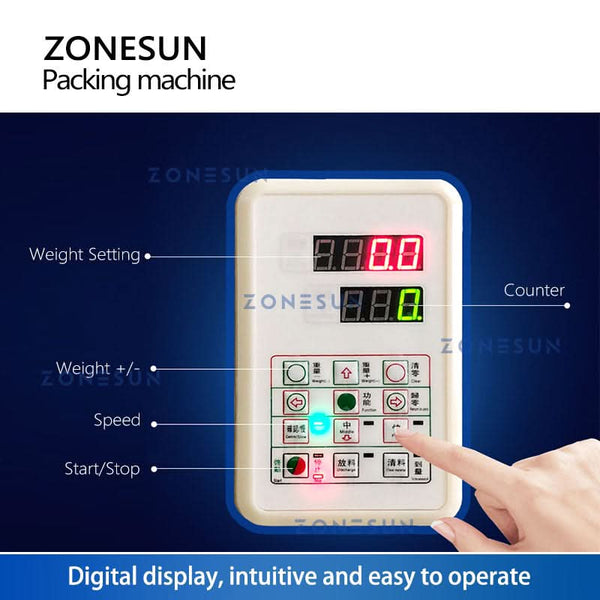

ZS-GWF4 digital control panel with weight, speed and counting controls

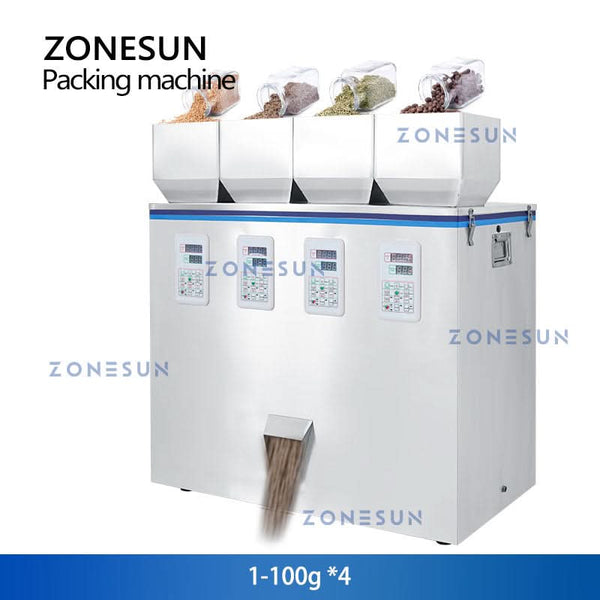

Four independent weighing channels feeding a single discharge outlet

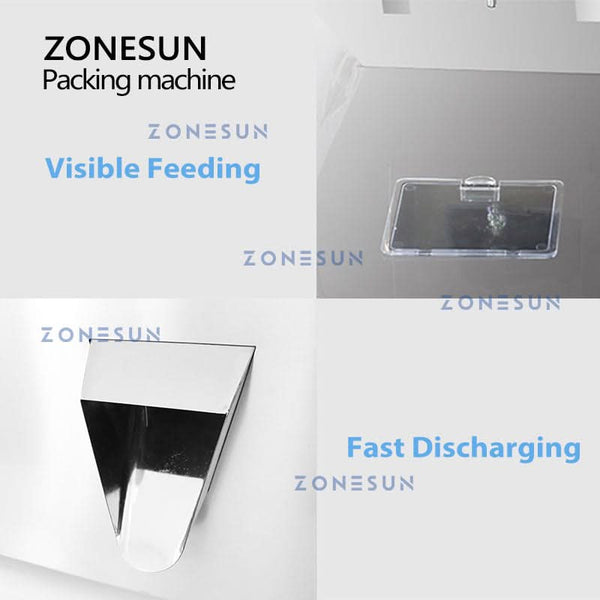

ZS-GWF4 inspection window and adjustable discharge outlet

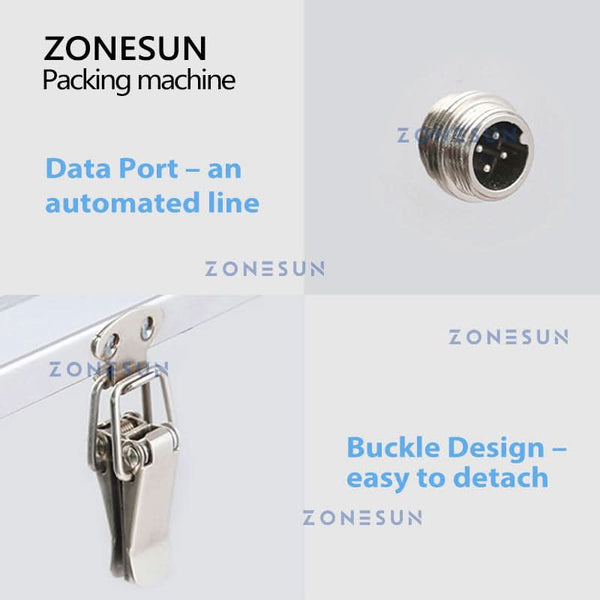

ZS-GWF4 equipment interface and cover buckles for cleaning access
ZS-GWF4 setup and operating steps for granule weighing and filling

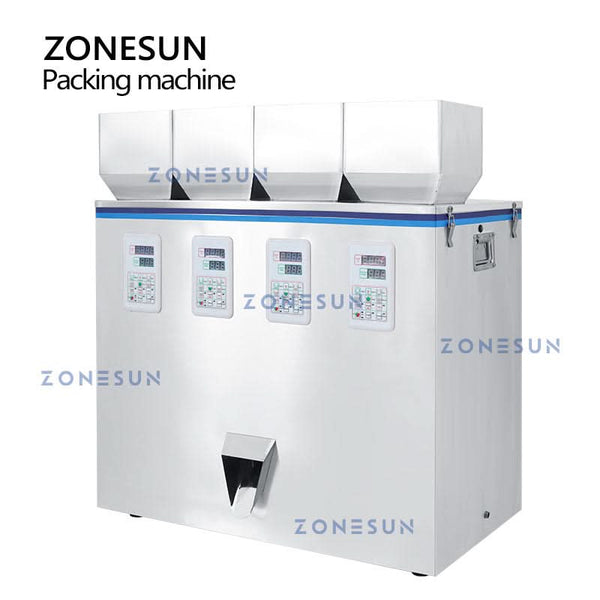

Front and angled views of the ZONESUN ZS-GWF4 granule filling machine
