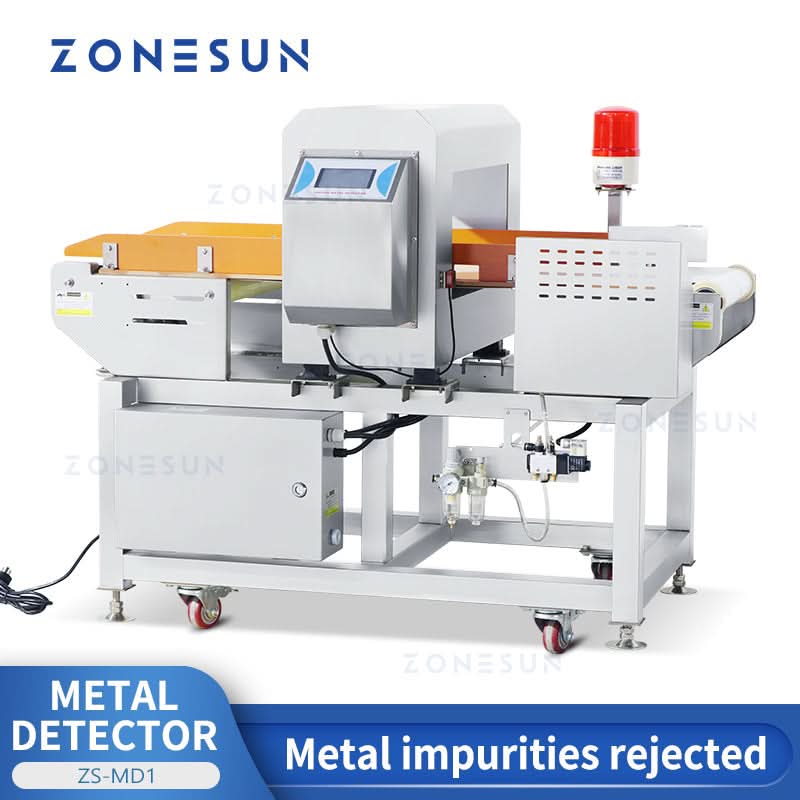

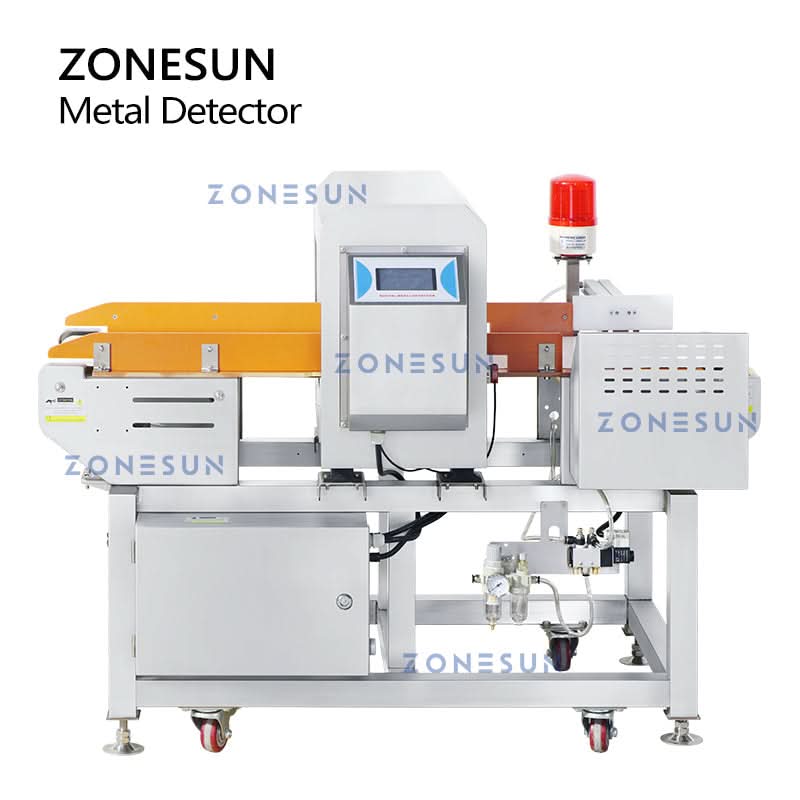

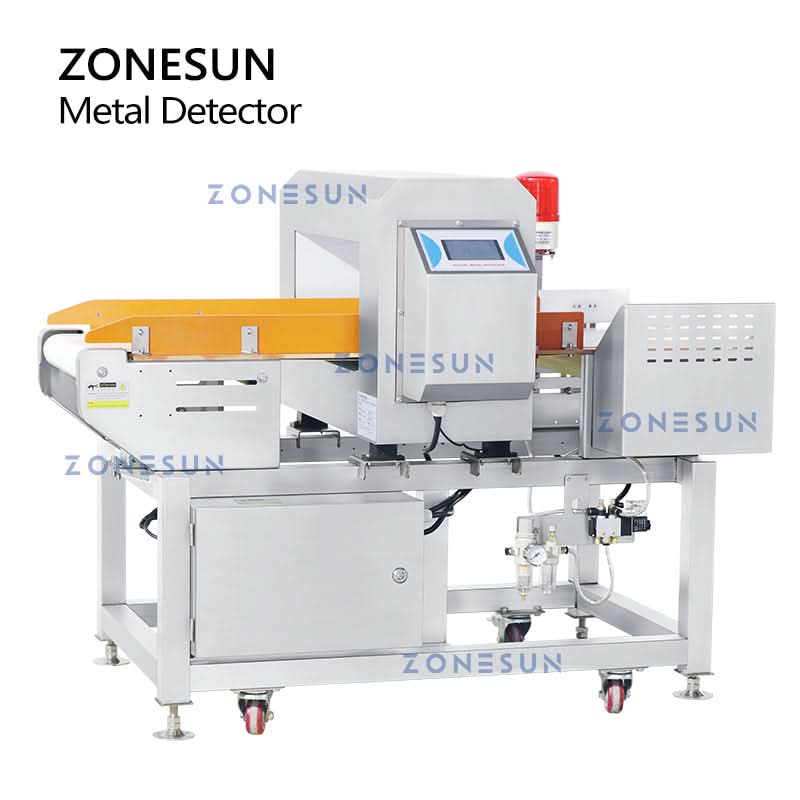

ZS-MD1 Metal Detector

$0.00 $3,700.00
Shipping calculated at checkout.
Voltage: 110V
Pre-sale Support Quality Guarantee About Shipping

DESCRIPTION

The conveyor belt metal detector is used to detect metal objects mixed in the production process of food, cosmetics, and so on. The system can use the alarm signal to drive an automatic rejection device, so as to exclude metal impurities from the production line. It can detect magnetic and non-magnetic metal impurities, even if the metal is sealed in the product. Therefore, it protects downstream equipment, reduces downtime, protects product quality, and recovers investment costs in the shortest time.



PARAMETER

Model

ZS-MD1

Voltage

220V, 50~60Hz

Power

90W

Conveyor Width

400mm (Customizable)

Max Load

15kg

Detection Height

200mm (Customizable)

Applicable Metal

Ferrous (φ≥1.2mm),

non-ferrous (φ≥1.8mm)

stainless steel (φ≥2.3mm)

Speed

25-30m/min

Machine weight

220kg

Size

133*72*100cm







PRODUCT DETAILS



DETECTING



It can detect magnetic and non-magnetic metal impurities, even if the metal is sealed in the product.

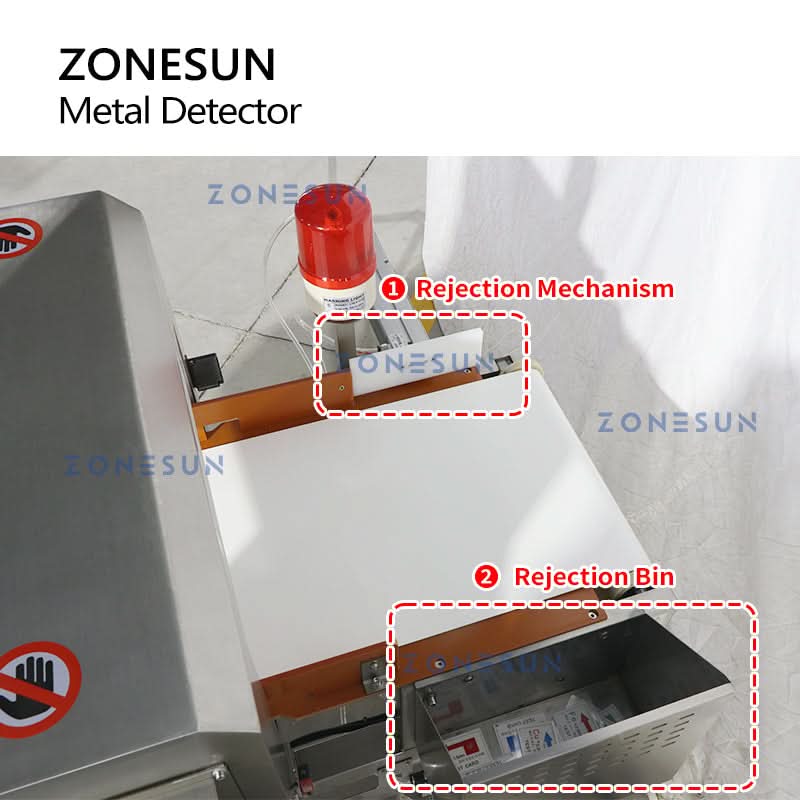

REJECTION



The system can use the alarm signal to drive an automatic rejection device, so as to exclude metal impurities from the production line.

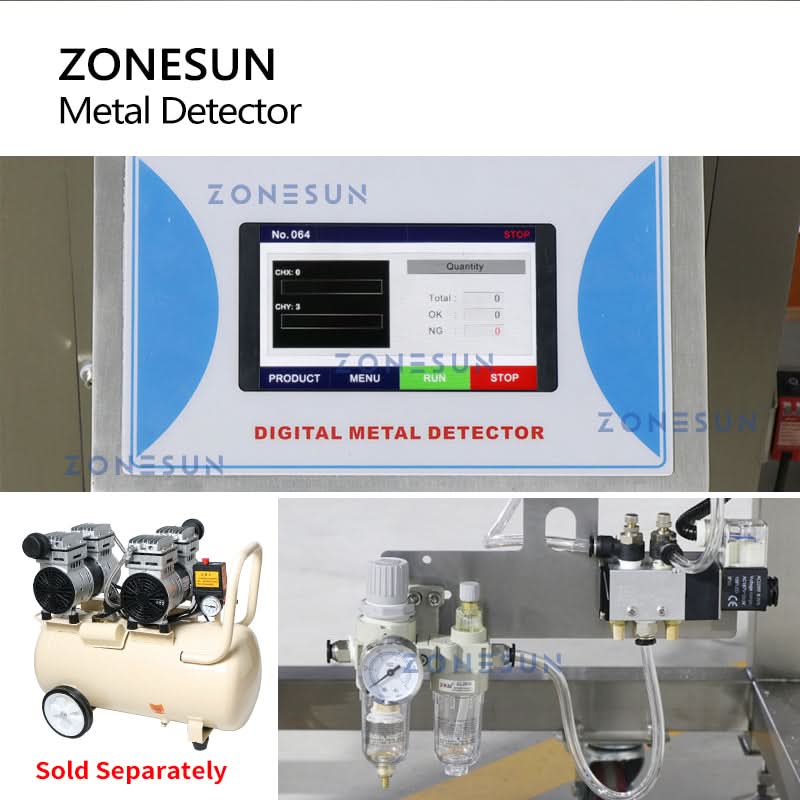

CONTROL PANEL



PLC control, color display touchscreen, records traceable.
It works with an extra air compressor that is sold separately.
