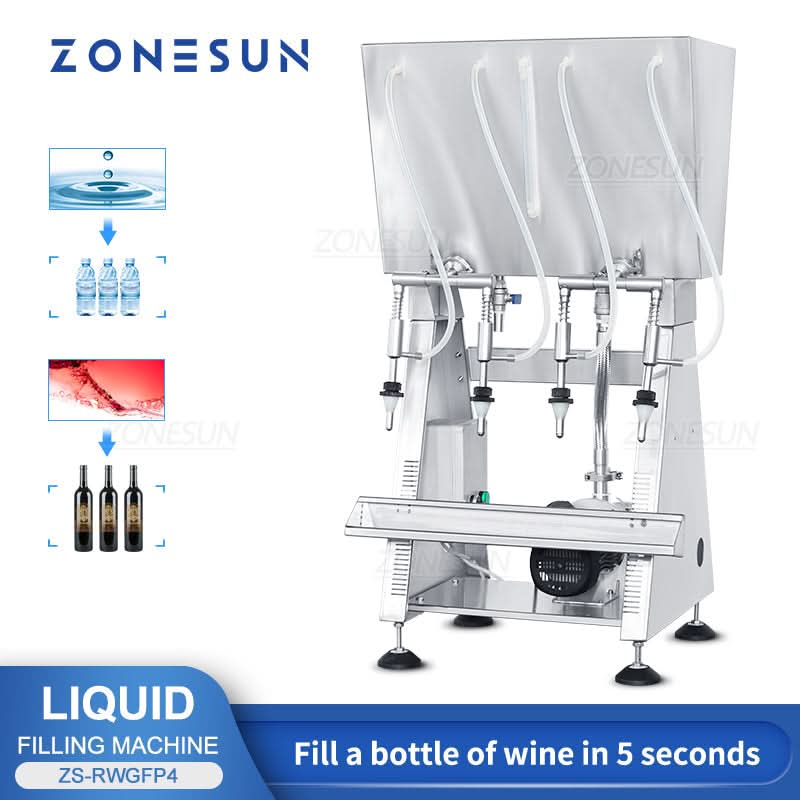

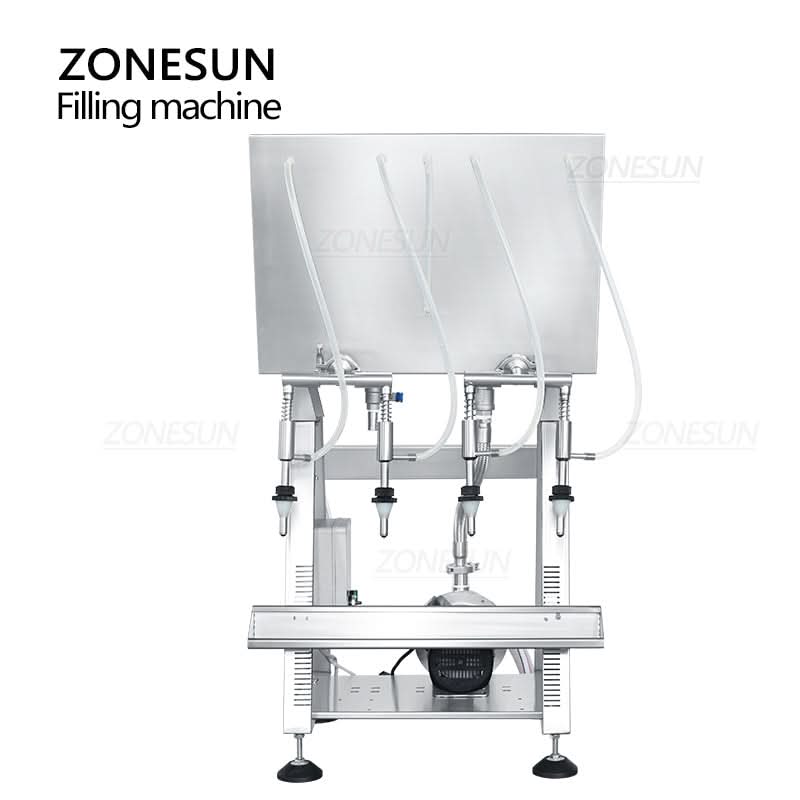

ZONESUN ZS-RWGFP4 Automatic Wine Liquid Filling Machine Enolmatic Bottle Filler
DESCRIPTION
With intelligent sensors, this machine can automatically fill liquid and stop when the bottle is full. It can fill 375ml red wine in 5 seconds. It is widely used in food and beverages industries. We have an entire solution for automated production line.
APPLICATION
This machine is suitable for filling liquid such as wine, soy sauce, olive oil, Baijiu, etc.
PARAMETER
|
Product model |
ZS-RWGFP4 |
|
Rated power |
0.37kw (with pump) |
|
Machine weight |
35kg |
|
Production capacity |
500-1000 bottles/hour |
|
Bottle Height |
160-350mm |
|
Bottle body diameter |
60-100mm |
|
Bottle opening |
Inner diameter≥16mm |
|
Size |
610*550*1050mm |
|
Net Weight |
45kg |
|
Package size |
About 710*580*1160mm |
|
Package weight |
About 50kg |
PRODUCT DETAILS

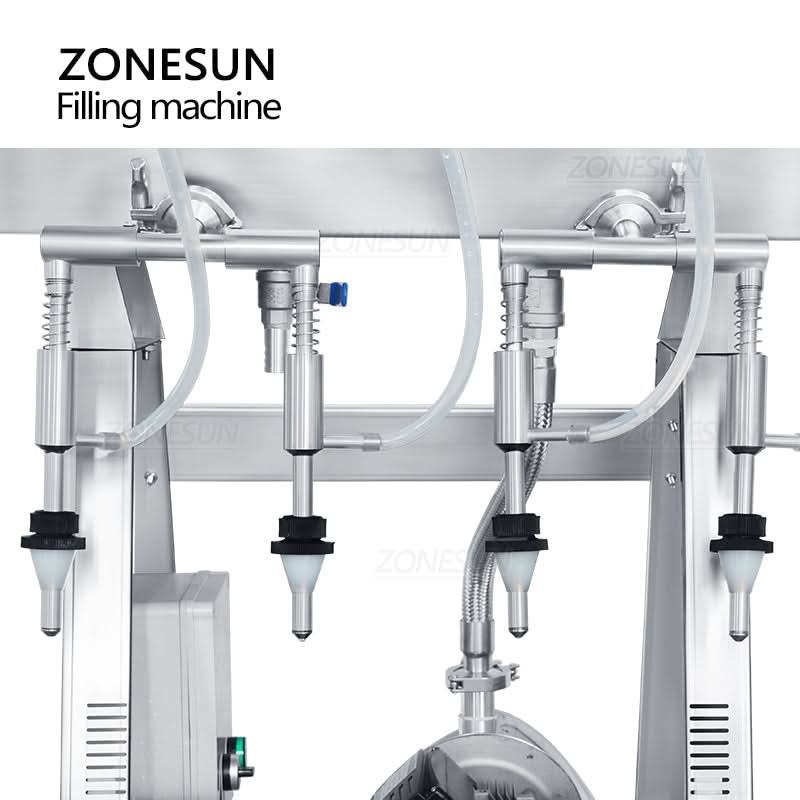

FILLING HEAD
Four-head design, stainless steel casing, stable and durable. High working efficiency, high precision and anti-dripping system.

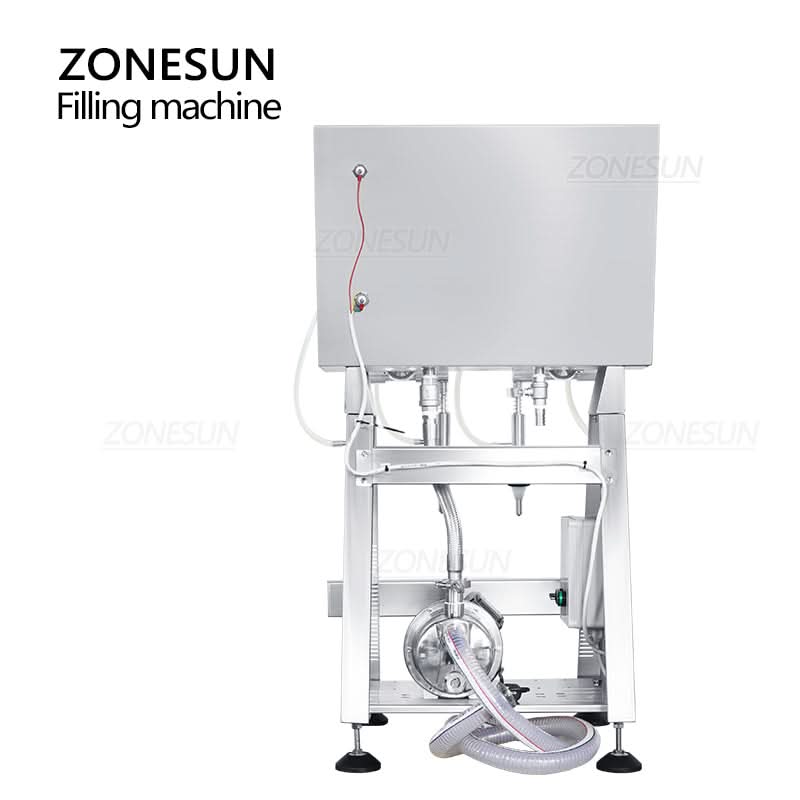

PUMP
370W, 2860r/min, max flow rate: 2.73m3/h, heat-resistant and durable.

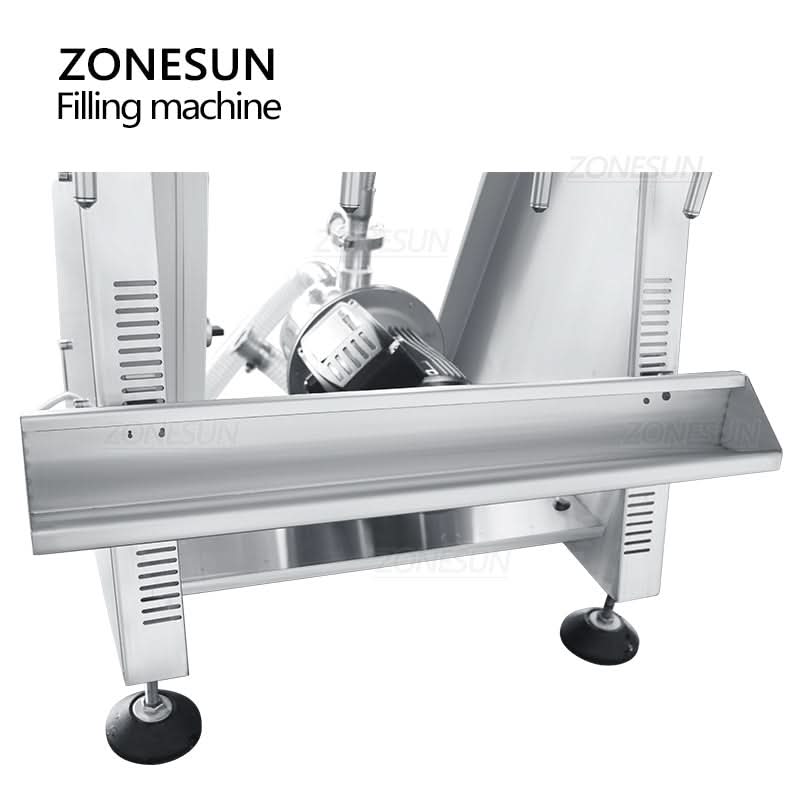

ADJUSTABLE TRAY
The thickened and height-adjustable stainless-steel tray is suitable for bottles in different heights.
WATER LEVEL
Easy to see the water level in the tank, with 2 level sensors.
