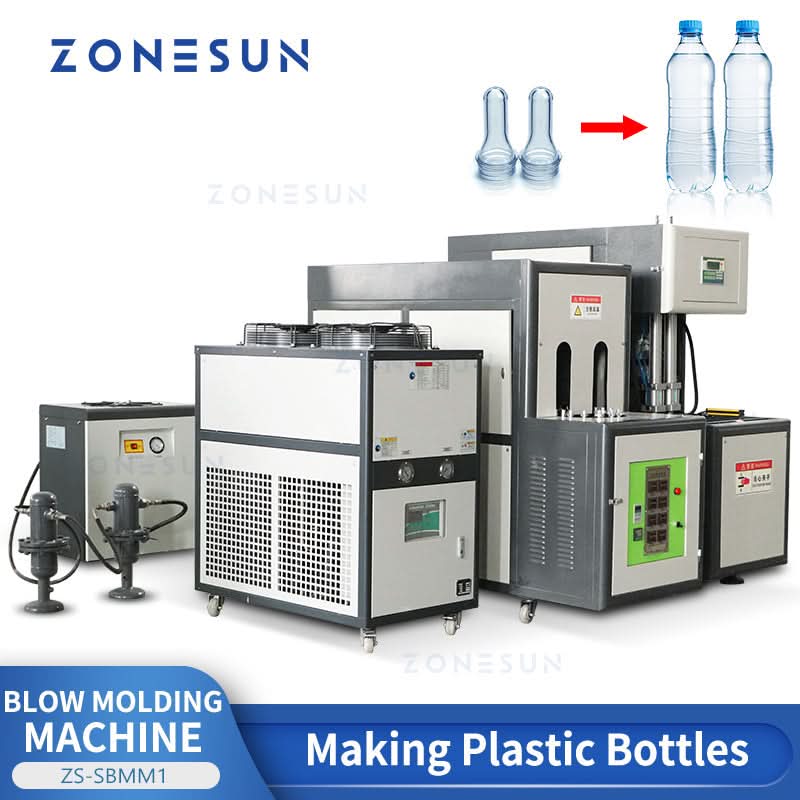

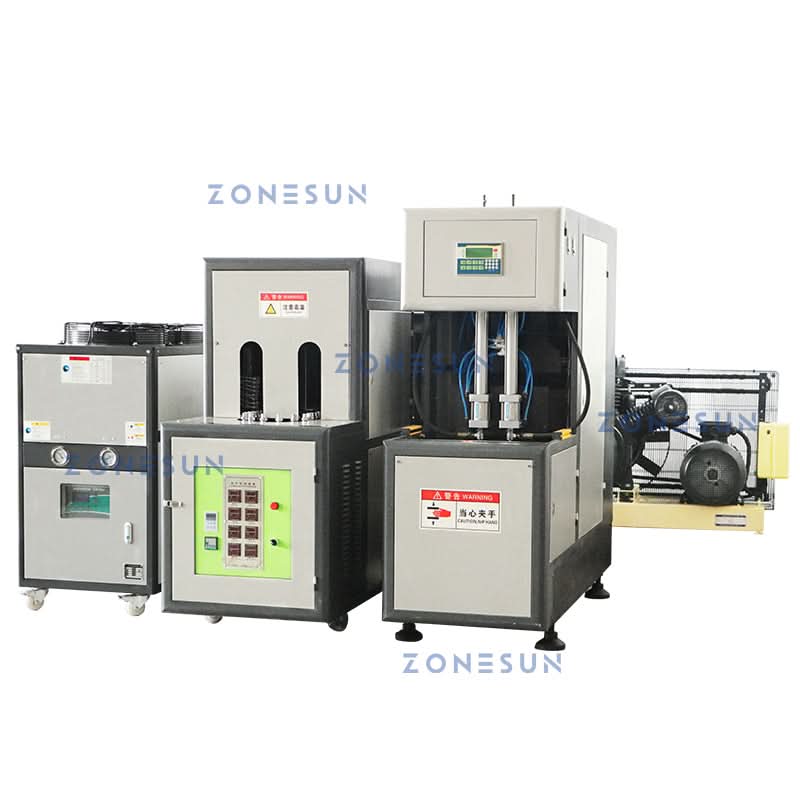

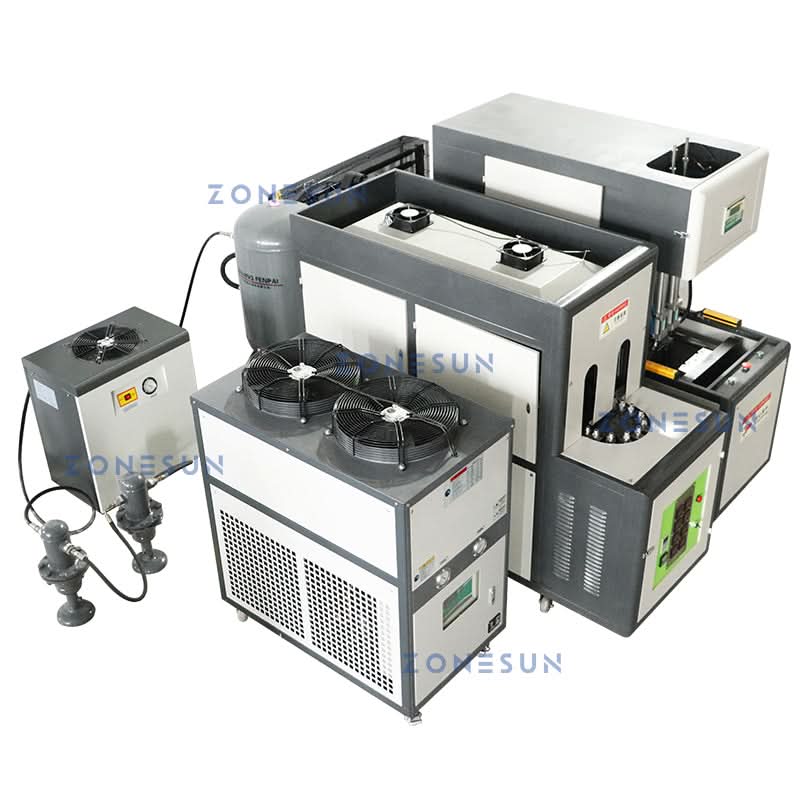

ZS-SBMM1 Blow Molding Machine

$0.00 $12,999.00
Shipping calculated at checkout.
Voltage: 380V
Pre-sale Support Quality Guarantee About Shipping

DESCRIPTION

This is a set of blow molding machines. It is typically used to make containers for cosmetics and for other uses.



FEATURES

  • The machine provides fast molding performance without scrap or connecting lines on bottle bottom or side.
  • Maximum uniformity of bottle weight, thickness and volume.
  • Extremely smooth and elegant bottle surface is ideal for high-quality and high-price packaging.
  • Infrared heating tubes combined with rotary design ensures extremely uniform heating for PET preforms, superior molding performance, and minimizes product defects.
  • Full-time stabilized heating system. Heating temperature and speed are adjustable according to sizes and features of preforms.
  • Consistent operation, minimal trouble and easy maintenance.
  • Requires little floor space, suitable for small to middle size factories.



PARAMETER

Molding Machine

Cavity

2

Container
Volume

3000ml

Production Capacity

About 1200pcs/h

Clamping
Stroke

150mm

Max Thickness of Mold

200mm

Max
Container Height

350mm

Max Container Diameter

125mm

Machine
Size

About 610*1905*1630mm

Heating Machine

Voltage

380V 50-60Hz

Heating Power

12kW

Quantity of
Preform Holders

72

Machine Size

About 665*1730*1455mm

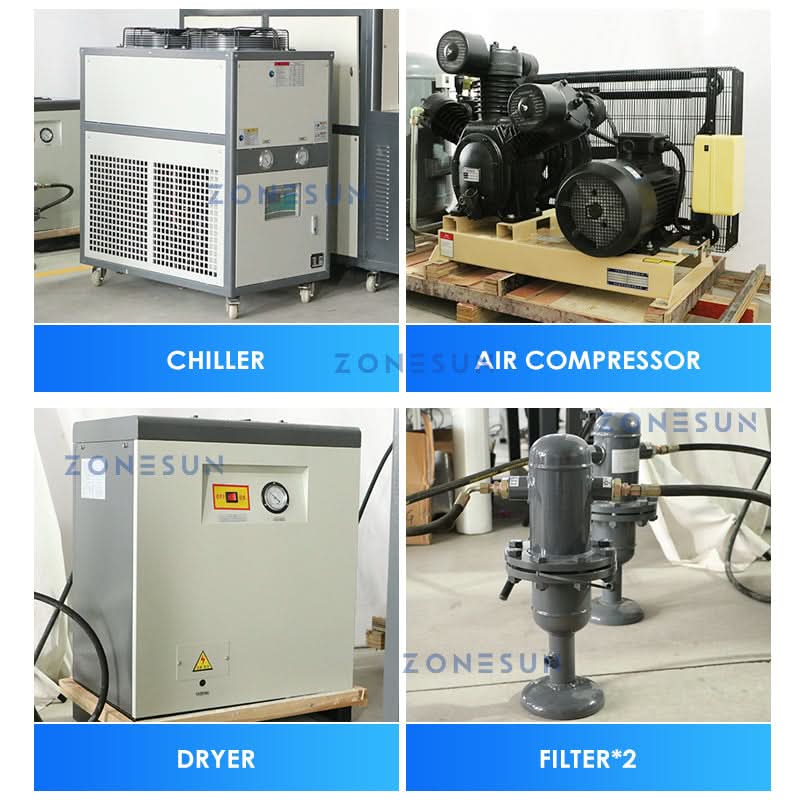

Air Compressor

Air Consumption

0.8L/min

Working
Pressure

3Mpa

Motor Power

15kW

Machine
Size

About 1800*800*1150mm

Configuration

Component

Brand

Origin

PLC

XINJE

China

Blow Valve

Parker

United States

Electromagnetic Valve

SMC

Japan

Breaker

Schneider

France

Contactor

Schneider

France

Switch

Schneider

France

Oil-water Separator

FESTO

Germany

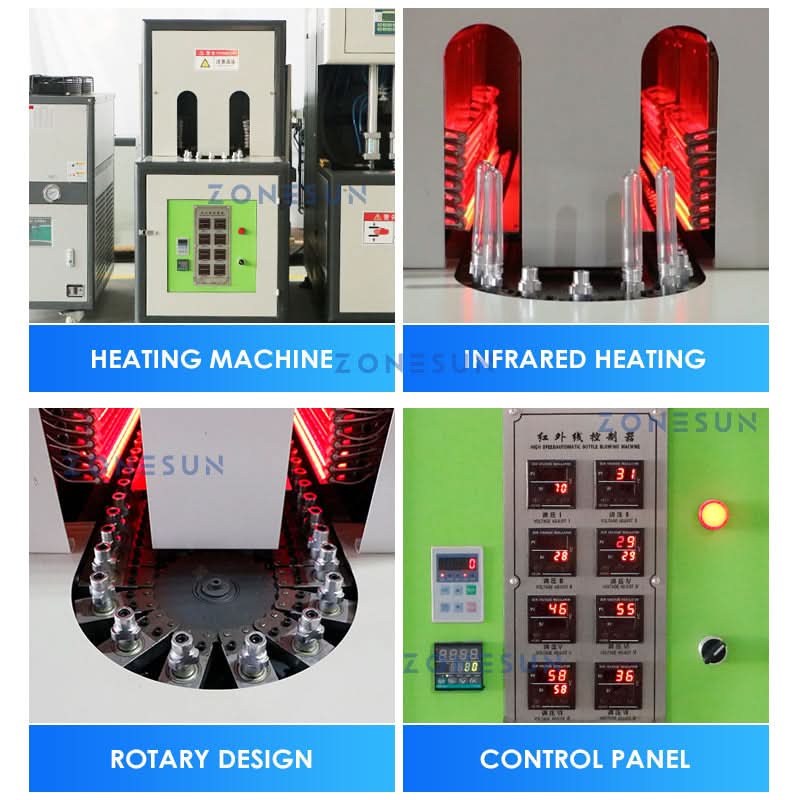

HEATING



Infrared heating tubes combined with rotary design ensures extremely uniform heating for PET preforms, superior molding performance, and minimizes product defects.





BLOW MOLDING



The machine provides fast molding performance without scrap or connecting lines on the bottle bottom or side.
