ZS-TB170 Automatic Flat Surface Labeling Machine
The ZONESUN ZS-TB170 is a floor-standing automatic label applicator designed to work alongside a compatible conveyor. It applies self-adhesive labels to accessible flat surfaces of boxes, cartons, pouches, books and other suitable products as they pass the labeling head.
Important: Conveyor belt is NOT included. The standard machine includes the labeling head, touchscreen controller, adjustable column and floor-standing support frame shown in the product photos. Confirm conveyor compatibility before ordering.
Key Features
- Conveyor-ready automatic labeling: Position the labeling head beside a compatible conveyor for automatic label application as products pass.
- Adjustable positioning: The support column and adjustment handles help align the labeling head with the product surface.
- Touchscreen controls: Convenient access to machine settings.
- Label and product sensing: Sensors support label dispensing and product detection.

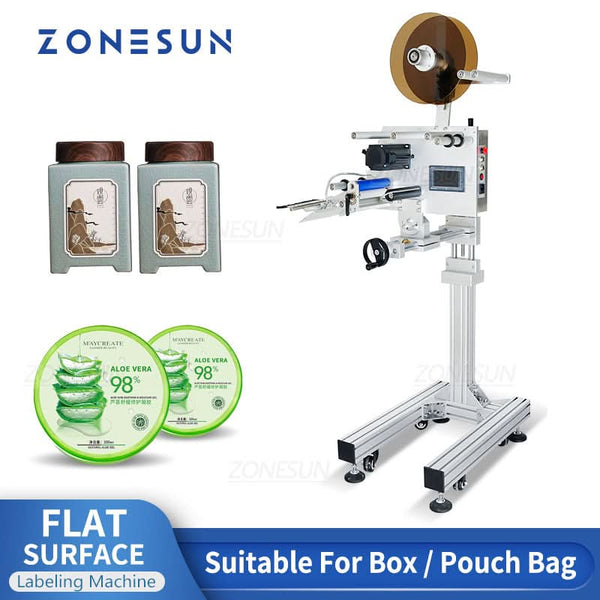

- Flexible flat-surface applications: Suitable for many flat-sided cartons, boxes, books and pouches, subject to product stability and testing.
How Top and Bottom Surface Labeling Works
The machine can label an accessible top-facing surface. To label the opposite side of a flat-sided product, turn the product over and run it through the labeling area again. This is a two-pass process: the machine does not automatically flip products or label both sides simultaneously.
Control and Adjustment

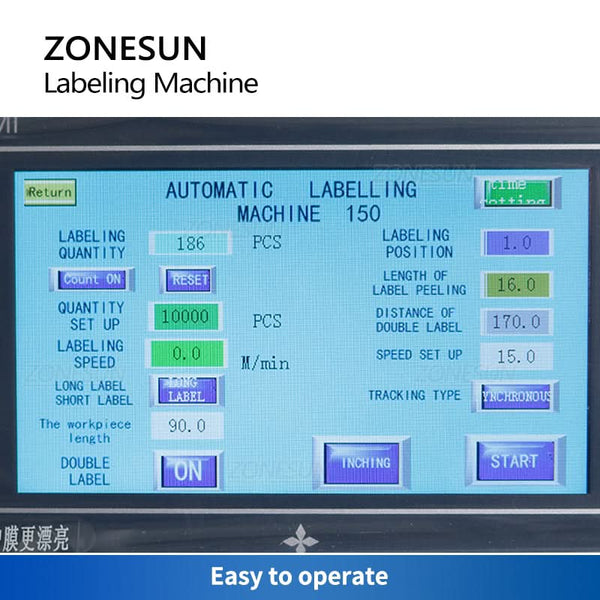

Touchscreen controller: Used to operate and adjust the labeling machine.

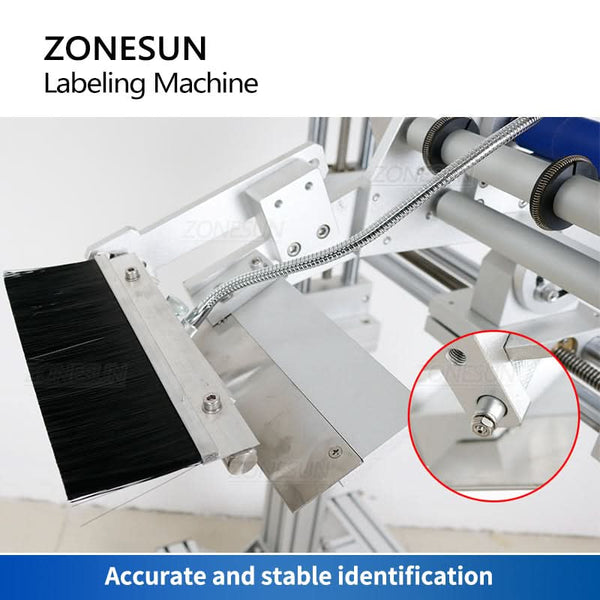

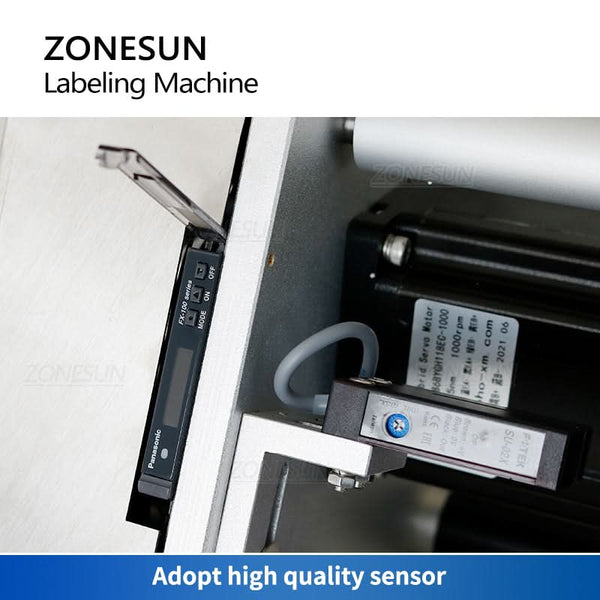

Label sensor: Adjustable sensing supports consistent label detection and dispensing.
Photoelectric sensor: Helps detect products approaching the labeling area.

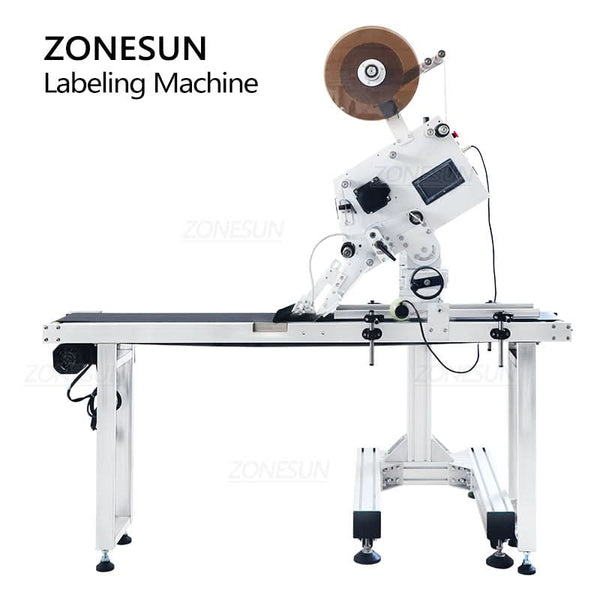

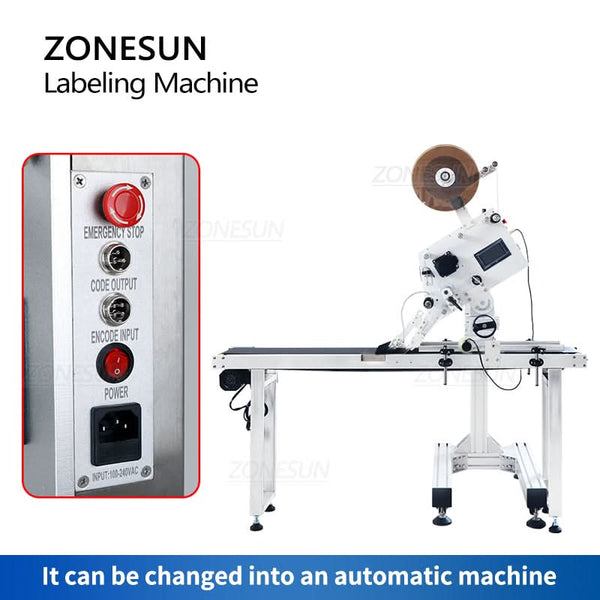

Conveyor integration: Use with a compatible customer-supplied conveyor. The conveyor is sold separately and is not part of this listing.

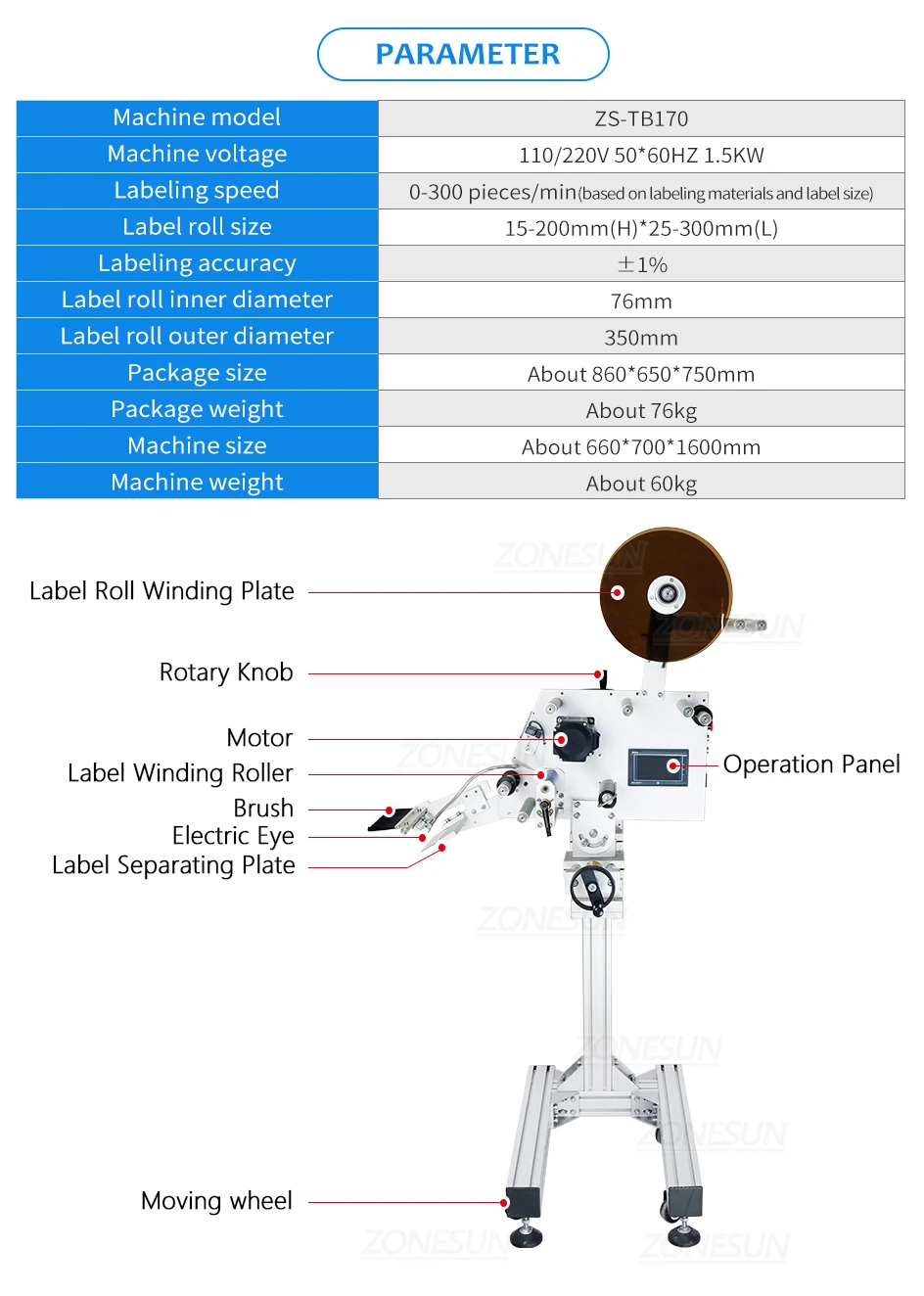

Technical Specifications
| Model | ZS-TB170 |
|---|---|
| Voltage | 110V or 220V, 50/60Hz (select variant) |
| Listed Power | 1.5 kW |
| Listed Labeling Speed | Up to 300 products/min; actual output depends on conveyor speed, product spacing, label size and setup |
| Listed Label Size | 15–200 mm (H) × 25–300 mm (L); confirm required size before ordering |
| Label Roll Core | 76 mm inner diameter |
| Maximum Label Roll Outer Diameter | 350 mm |
| Machine Dimensions | Approx. 660 × 700 × 1600 mm |
| Machine Weight | Approx. 60 kg |
| Listed Package Size | Approx. 860 × 650 × 750 mm |
Performance figures and label-size range are existing listing specifications and should be confirmed for your product and label before purchase. Labeling accuracy specification is pending confirmation.
What's Included?

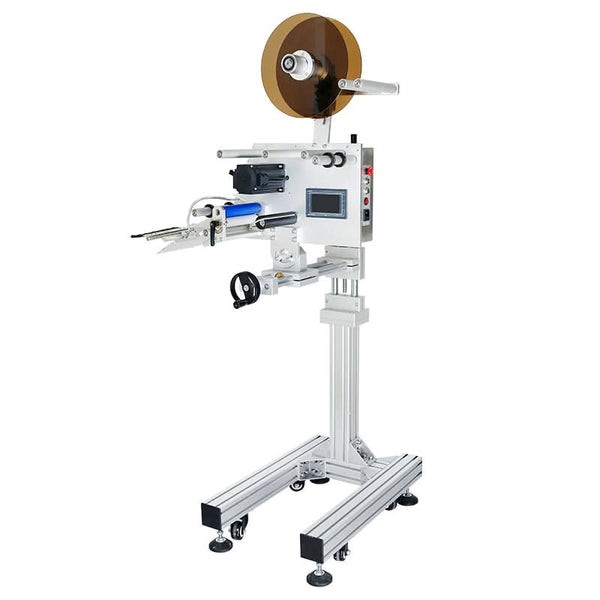

One ZS-TB170 labeling machine with integrated labeling head, touchscreen controller, adjustable stand and floor support frame as pictured. Conveyor belt and automatic product-turning equipment are not included.
Frequently Asked Questions
Does this machine include a conveyor?
No. It can be placed alongside a compatible existing conveyor for automatic labeling.
Can it label both sides of a box?
Yes, in separate passes. Flip the box between passes to present the opposite flat surface to the labeling head.
Will it fit my conveyor and labels?
Please share your conveyor dimensions, product dimensions, label dimensions and expected production speed so our team can check suitability.
