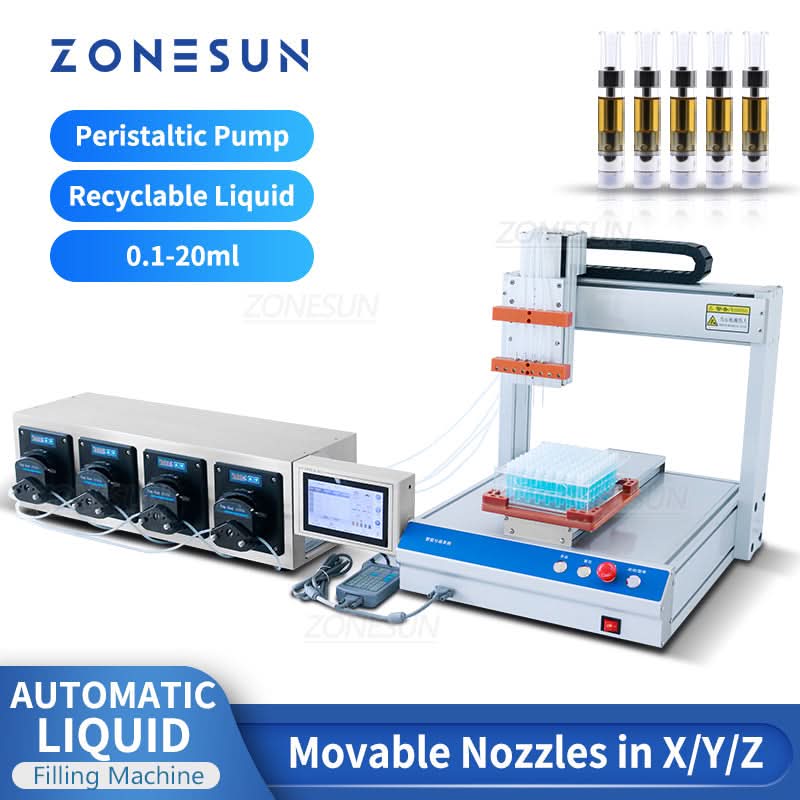

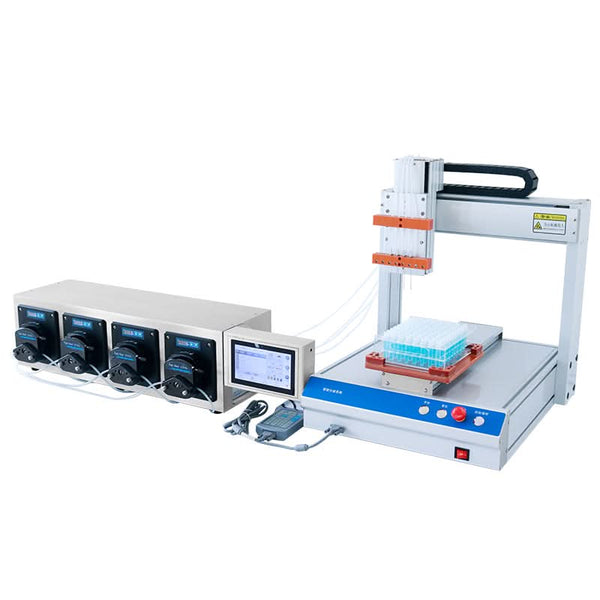

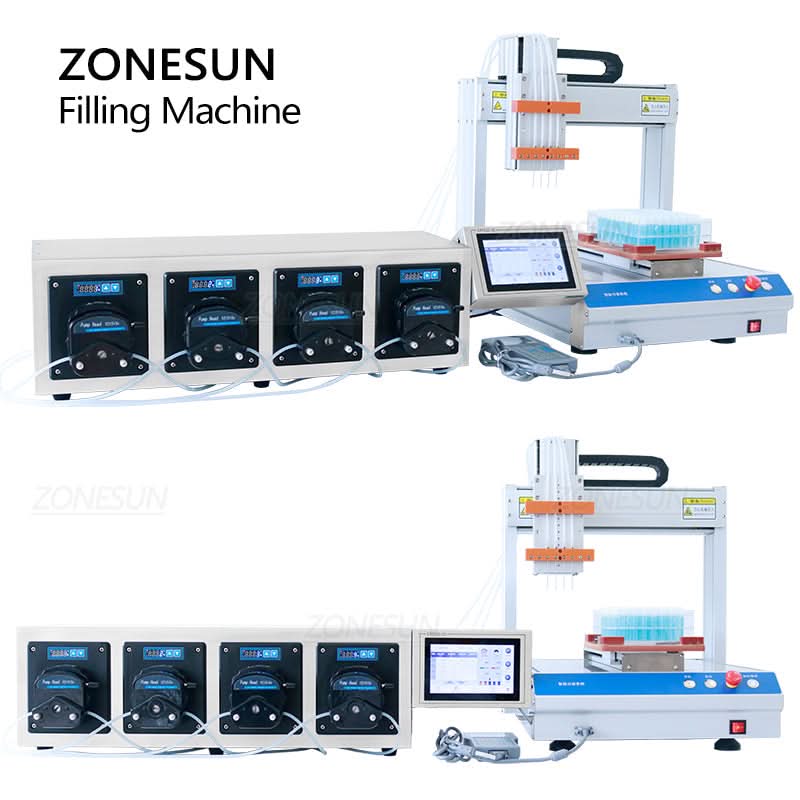

The ZONESUN ZS-XYZ4A is a precision small-dose liquid filling machine equipped with four peristaltic pumps and multiple nozzles. Its intelligent nozzle system moves along the X, Y, and Z axes for flexible, accurate filling. Ideal for handling vials, ampoules, and narrow tubes, this compact device delivers high-speed dosing with minimal contamination risk—perfect for pharmaceutical, cosmetic, and laboratory applications.
Specification Details
Machine Model ZS-XYZ4A
Voltage 110V / 220V, 50–60Hz
Power Consumption 400W
Filling Range 0.1–20ml
Filling Nozzle Quantity 1 / 2 / 3 / 4
Filling Speed Approx. 60–120 bottles/min (depends on liquid & volume)
Filling Pump Type Peristaltic Pump
Machine Size Approx. 720 × 250 × 210mm
Machine Weight Approx. 17kg

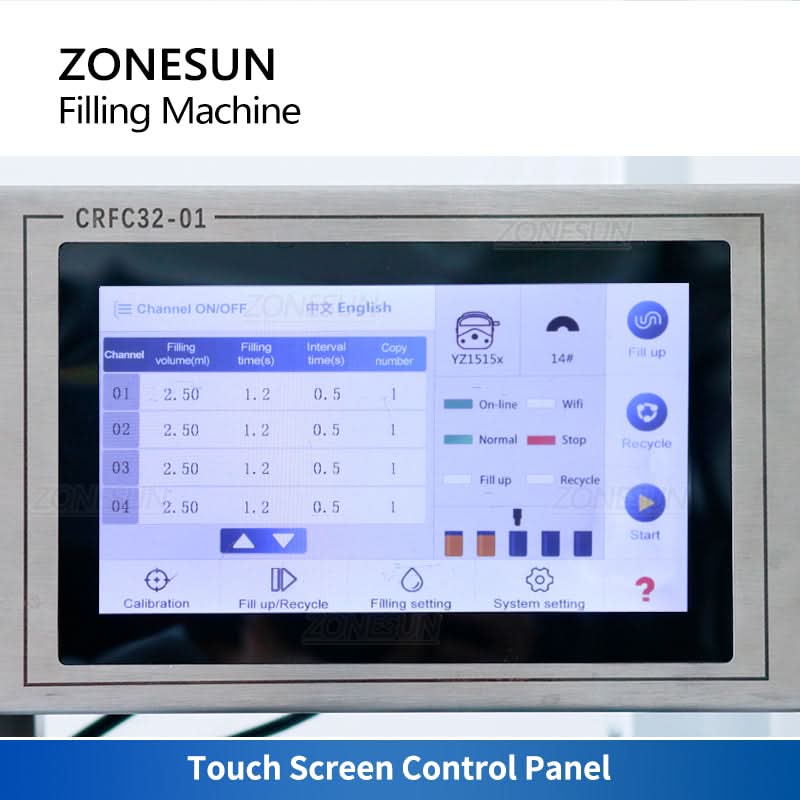

TOUCHSCREEN CONTROL PANEL
The touchscreen provides clear, convenient visual parameter setting.

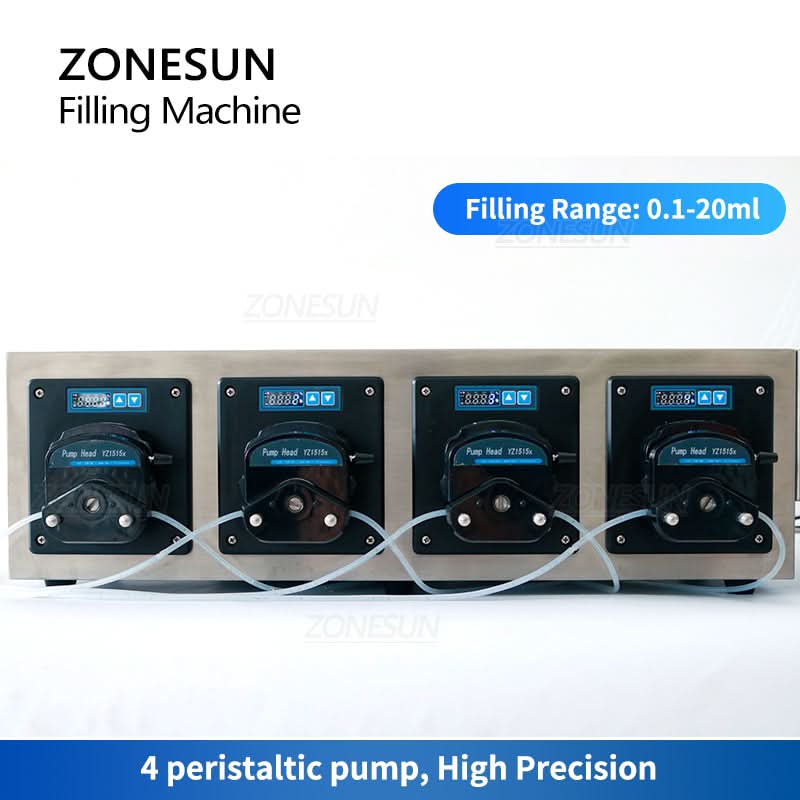

FOUR PERISTALTIC PUMPS
Four modular peristaltic pumps support accurate filling while keeping liquid confined to the tubing for clean product handling. The system is suitable for pharmaceutical and chemical solutions.

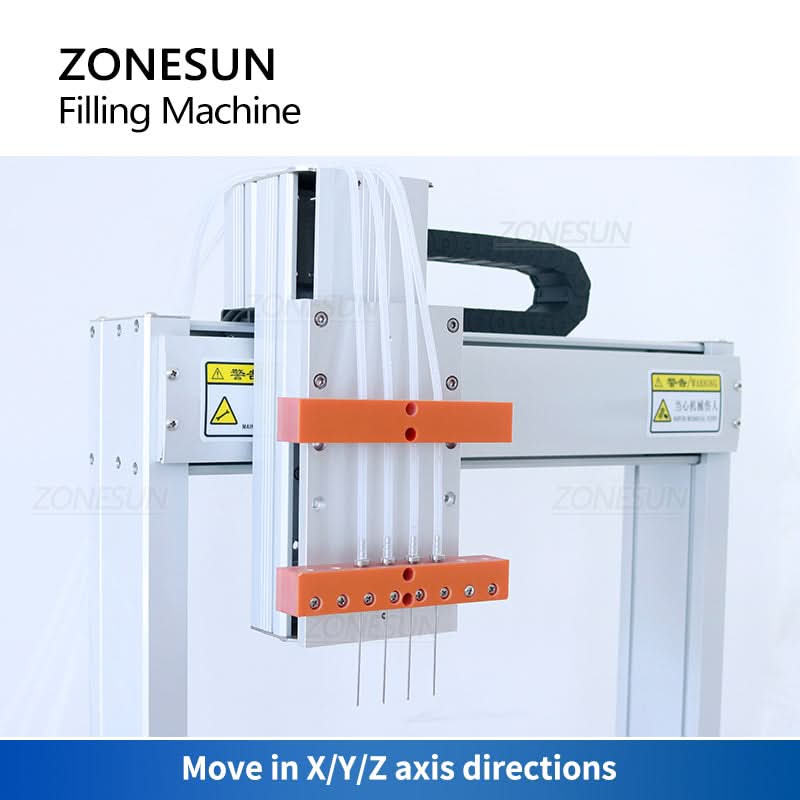

MOVABLE FILLING NOZZLES
Multiple nozzle and hose sizes support small-volume filling. Once configured, the filling nozzles move automatically along the X, Y, and Z axes.

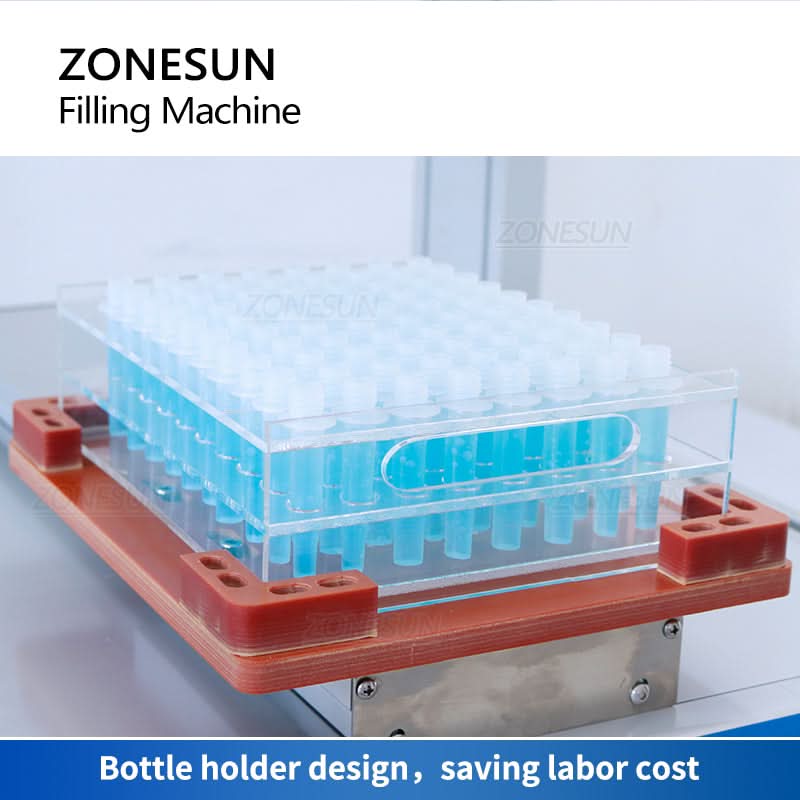

CUSTOM BOTTLE HOLDER
The bottle holder keeps containers arranged in order and is customized to match the bottle dimensions. Please provide bottle sizes when ordering.
