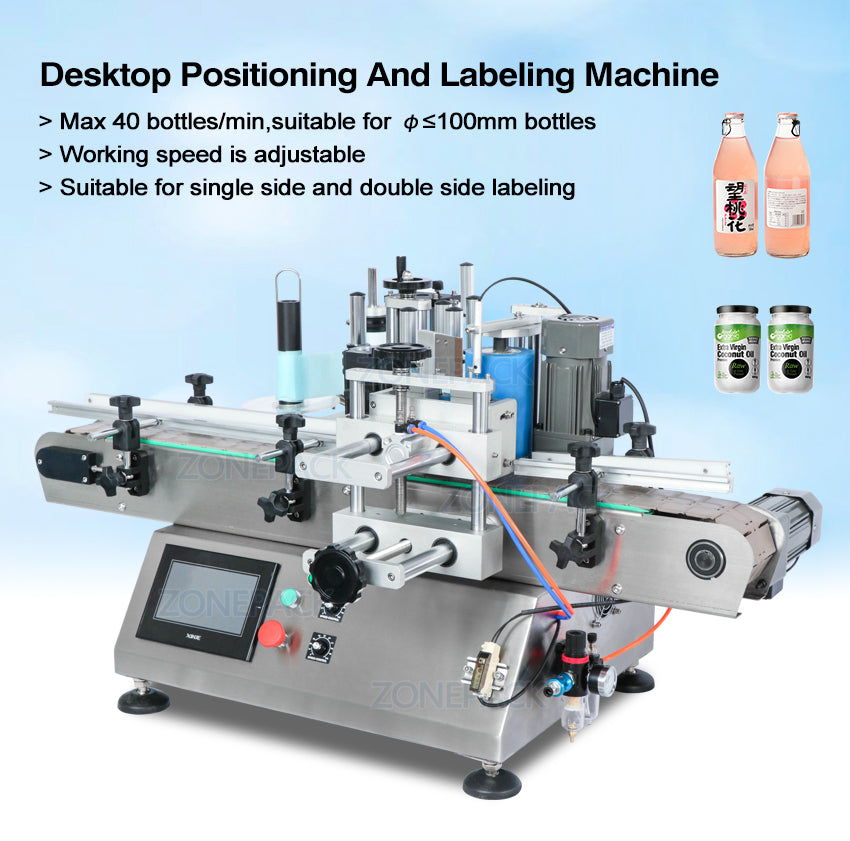

The ZONESUN ZS-TB500 is a fully automatic pneumatic labeling machine designed for round bottles. It supports both single-side and double-side labeling with high precision and speed. Its compact desktop design saves workspace while maintaining full automation. Ideal for labeling wine bottles, cosmetics, beverages, and more, the machine features adjustable settings for different label sizes and bottle diameters, making it a versatile solution for small to medium-scale production.

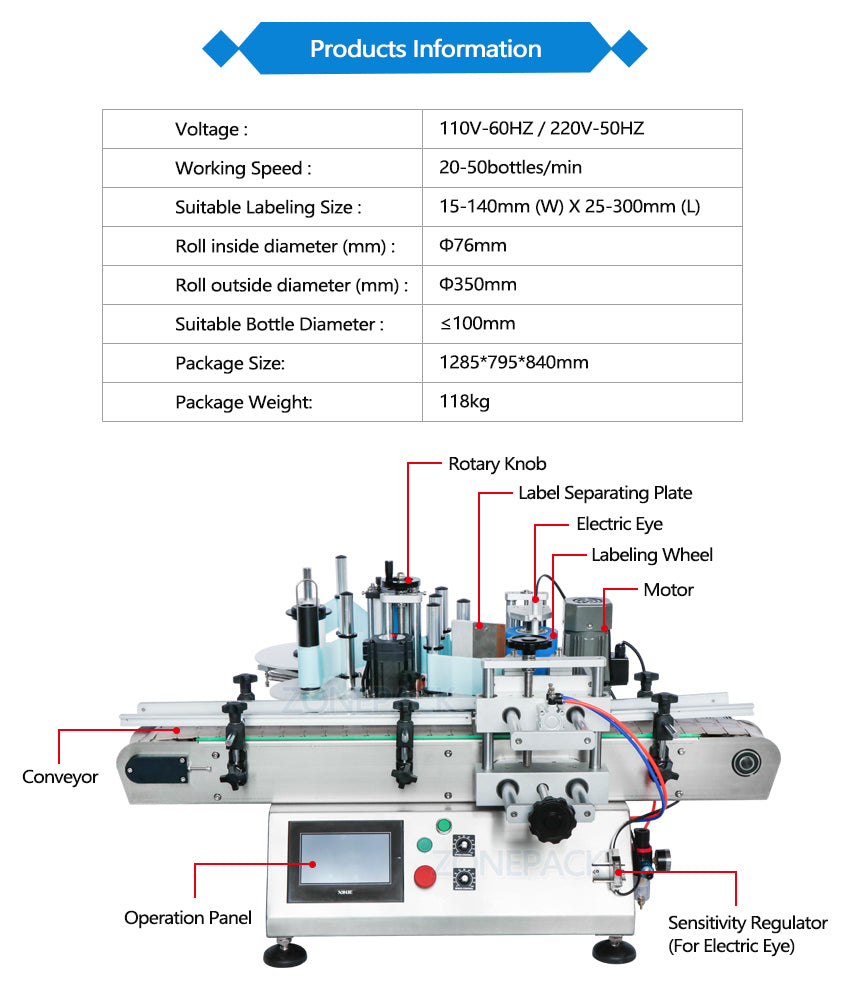

Parameter Specification
Voltage 110V–60Hz / 220V–50Hz
Working Speed 20–50 bottles/min

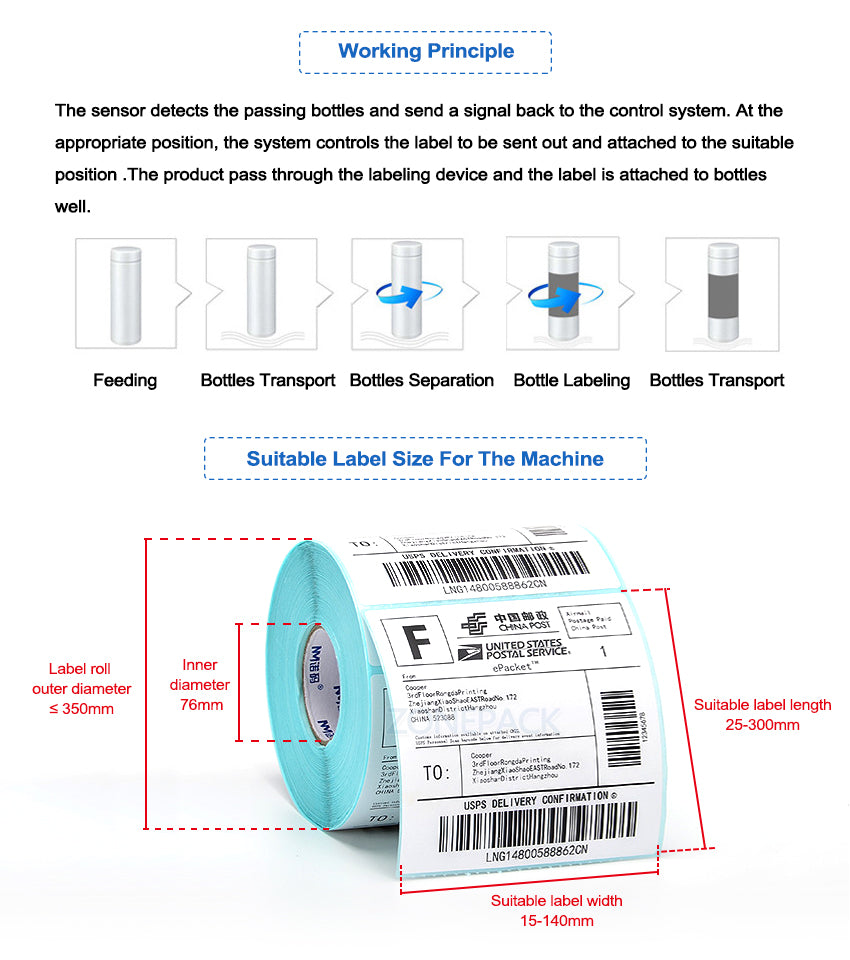

Suitable Labeling Size 15–140 mm (W) × 25–300 mm (L)
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Suitable Bottle Diameter ≤100 mm
Package Size 1285 × 795 × 840 mm
Package Weight 118 kg
Voltage 110V–60Hz / 220V–50Hz
Working Speed 20–50 bottles/min
Suitable Labeling Size 15–140 mm (W) × 25–300 mm (L)
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Suitable Bottle Diameter ≤100 mm
Package Size 1285 × 795 × 840 mm
Package Weight 118 kg
