The ZONESUN ZS-PK960 and ZS-PK990 integrate pleated wrapping and flat labeling in one automated system, making them ideal for packaging round and sphere-shaped products like hotel soap, cakes, and toilet cleaners. Capable of double-sided labeling and compatible with various wrapping materials, these machines boost production efficiency across food, cosmetics, and pharmaceutical industries. Custom mold sizing and material flexibility ensure smooth adaptation to diverse product lines. Sea shipping available; contact us for faster delivery options or customization inquiries.
| Parameter | ZS-PK960 | ZS-PK990 |
|---|---|---|
| Voltage | 110V / 220V, 50–60Hz | 110V / 220V, 50–60Hz |
| Power | 2000W | 2000W |
| Air Pressure | 0.5–0.6 MPa | 0.5–0.6 MPa |
| Working Speed | 50 pieces/min | 50 pieces/min |
| Mold Size | Customized | Customized |
| Suitable Material Size | φ40–70 mm (Dia) × 8–35 mm (Thickness) | φ40–70 mm (Dia) × 8–35 mm (Thickness) |
| Suitable Film Material | Pearl film, recycled paper, tissue paper etc. | Tissue paper, tin foil, aluminum foil |
| Film Diameter | 80–150 mm | 80–150 mm |
| Film Roll Inner Diameter | ≤75 mm | ≤75 mm |
| Film Roll Outer Diameter | ≤500 mm | ≤500 mm |
| Label Diameter | ≤40 mm | ≤40 mm |
| Label Roll Inner Diameter | ≤75 mm | ≤75 mm |
| Label Roll Outer Diameter | ≤300 mm | ≤300 mm |
| Machine Dimensions (L×W×H) | Approx. 2100 × 1000 × 1700 mm | Approx. 2100 × 1000 × 1700 mm |
| Package Weight | Approx. 600 kg | Approx. 600 kg |

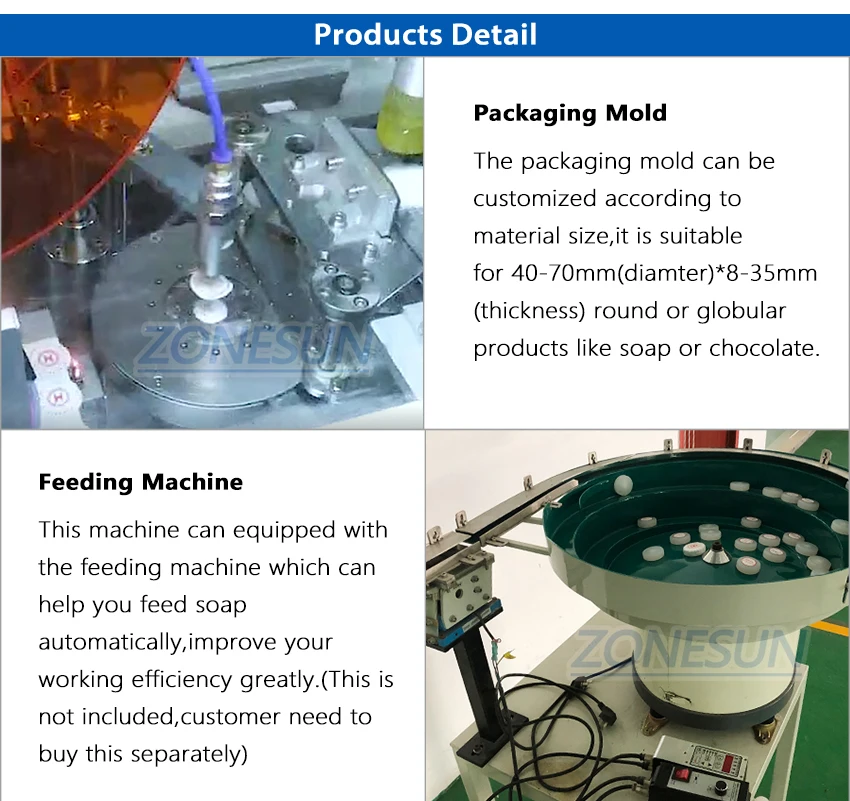

OPTIONAL AUTOMATIC FEEDER An optional feeding machine can automatically supply soap to the packaging unit, helping improve working efficiency. This feeder is sold separately. CUSTOMIZED PACKAGING MOLD The packaging mold can be customized to suit the material size. It is designed for round or spherical products such as soap and chocolate measuring 40–70 mm in diameter and 8–35 mm in thickness. INTELLIGENT ELECTRIC EYE When the electric eye detects a passing product, it signals the control system to apply the label. This helps prevent missed labels and unnecessary label waste. LABELING STRUCTURE The labeling structure is suitable for flat and slightly curved surfaces. Its roller helps prevent bubbles beneath the label for a consistent labeling result. DRIVE MOTOR The motor provides reliable power for continuous machine operation.
