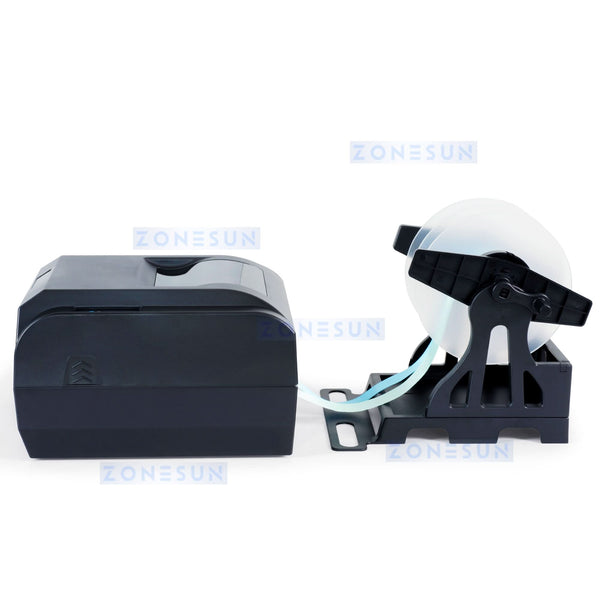

This printer is used for personalizing satin ribbon. You can edit by common software, such as Bartender and print. It is widely used in gift wrapping, name badges, and decoration.
Specifications
|
Printing parameters |
Print Method |
Heat-sensitive / heat-transfer printing printer |
|
Maximum print width |
108mm |
|
|
Maximum speed |
150mm/s (203dpi) |
|
|
Thermal head |
Spacing 0.125mm |
|
|
Resolution ratio |
203DPIx203DPI |
|
|
Figure |
graph manipulation |
Monochrome PCX, BMP, and equal image data |
|
Printer ribbon |
Maximum diameter |
68mm (2.68 inch) |
|
Ribbon core size |
1 inch (25 mm) |
|
|
Maximum length |
300 m |
|
|
Width |
33~110mm |
|
|
Medium
|
Maximum diameter |
127mm (5 inch) |
|
Medium core size |
25.4 mm (1 inch), 38.1 mm (1.5inch) |
|
|
Width |
25mm ~118mm |
|
|
Thickness |
0.06mm ~0.18mm |
|
|
Length |
8.9mm ~400mm |
|
|
Media separation mode |
Manual tearing paper, automatic cutting paper, stripping way |
|
|
Medium type |
Roll type, folding type (continuous paper, noncontinuous paper, continuous tag, wristband, ordinary paper or various bills) |
|
|

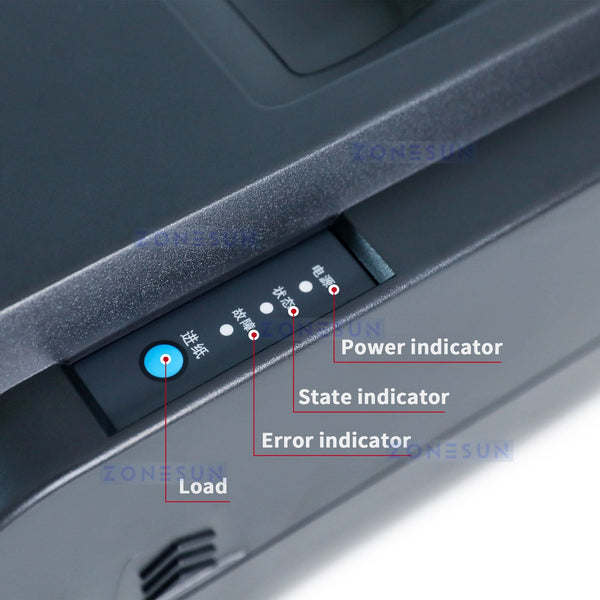

Control Panel |
Key |
One key (paper feed) |
|
Indicator light |
Three(power supply、fault, status (paperless / carbon belt)) |
|
|
Detection function |
Standard sensor |
Black mark detection, label detection, organization detection, carbon belt detection |
|
Optional sensor |
Label peel-off test |
|
|
Simulation |
|
TSPL |
|
Power supply |
Input |
100~240V AC @ 50~60 Hz |
|
Output |
24VDC； 3A |
|
|
Memory |
SDRAM |
32MB |
|
FLASH |
8MB |
|
|

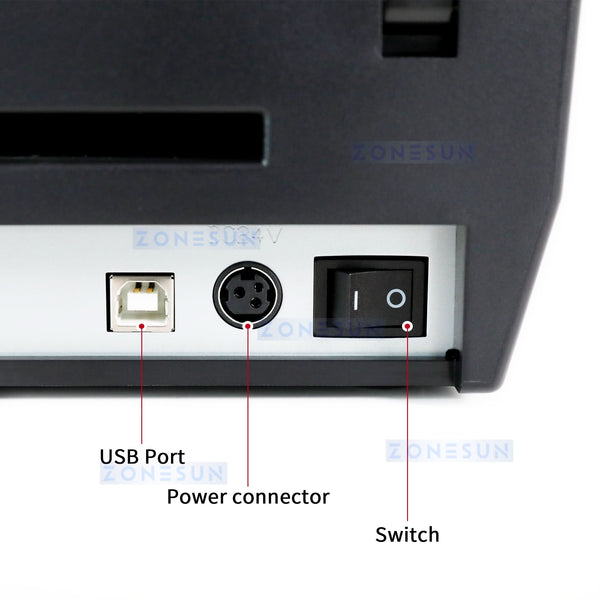

Interface
|
Standard |
USB port（2.0 Full Speed) |
|
Optional |
RS-232 serial port (DB 25) |
|
|
Parallel port Centronics (IEEE-1284) |
||
|
Ethernet:10M/100M |
||
|
Wi-Fi （802.11b/g） |
||
|
Bluetooth： SPP |
||
|
Software |
|
Driver:Windows 32bit/64bit(Not compatible with Apple systems） |
|
Physical characteristic |
Size |
230（L） ×290（W） × 176（H）mm |
|
Color |
Black |
|
|
|
Weight |
About 3kg |
|
Suitable Environment |
Operating environment |
Temp： 5~40℃ |
|
Temp： 20% ~95%RH（no condensation） |
||
|
Storage environment |
Temperature： -20~60℃ |
|
|
Temperature： ≤95%RH（40℃ ,no condensation） |
||
|
Licensing certification |
Safety Standard |
GB 4943.1-2011 |
|
（EMC） |
B Grade |
|
|
Certification |
3C certification, UL, FCC, CE, Energy Star
|
|
|
Optional |
|
Stripper (factory optional, not secondary assembly) |
|
Life time |
Heat head |
150KM （calculated by the specified thermal paper use and printing rate 12.5%) |
Features
Can provide free barcode professional label software for customers to download
and use, the software is perfectly compatible with the mobile barcode printer,
easily realize the design and printing of various barcode labels under the windows system, is the best solution for barcode label users to improve work efficiency.

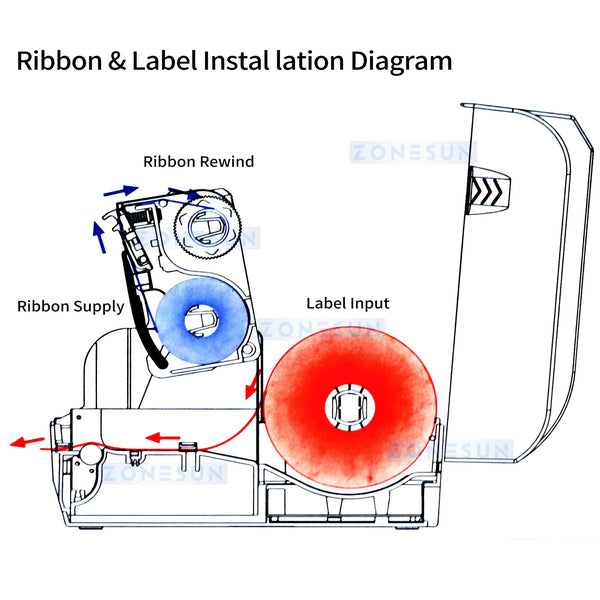

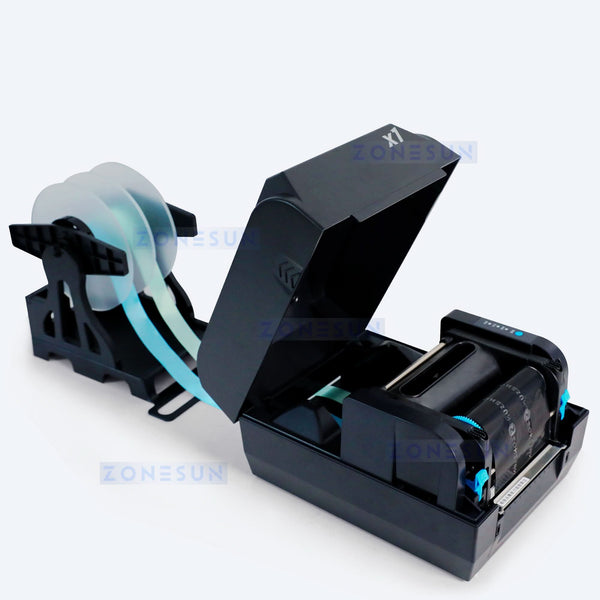

Open structure design, close to 90 degrees of movement opening, convenient for users to replace the paper roll and carbon belt, simple operation and maintenance.
The upper and lower tear paper structure design, can correspond to the very narrow label tear paper,respect the user's use habits, more convenient to use.
Large-capacity paper warehouse design. Support 300 meters large capacity carbon belt and 127mm diameter paper roll, greatly reduce the frequency of users replacing consumables, improve work efficiency.
Movable black mark sensor design, can adapt to different specifications of label accurate positioning, printing effect is excellent.
Multiple interfaces are optional. Standard USB interface, optional parallel port, serial port, Ethernet, wireless network port card,Bluetooth interface card, to meet the needs of different devices.
