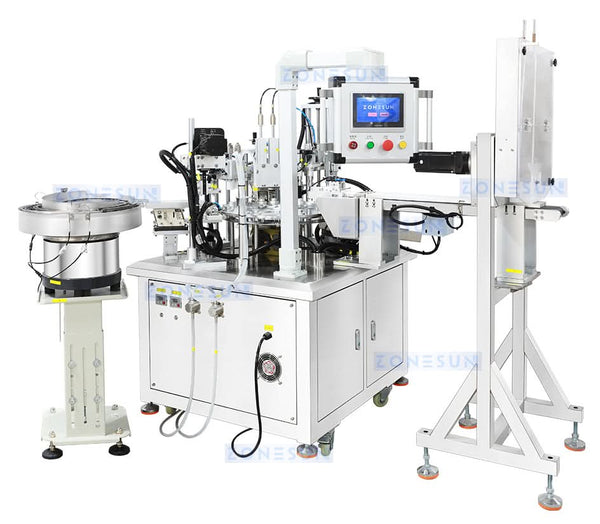

This automatic roller ball bottle filling and capping machine is a high-efficiency, fully automated device designed specifically for small roll-on bottles (can not stand upright during conveying), ideal for filling and sealing liquids such as perfumes and essential oils. This machine integrates bottle feeding, liquid filling, roller ball pressing, and outer cap sealing, enabling a fully automated production process from empty bottles to finished products. Equipped with a SUS316 magnetic pump, it ensures a filling accuracy of ±1%, suitable for filling volumes of 5-20 ml. Compact design not only saves space but can also be connected to a horizontal labeling machine to complete the entire packaging process.
Parameter
- Machine Model: ZS-AFC17R
- Voltage: AC110V/220V, 50-60Hz
- Power: ~2.5KW
- Filling Pump: Magnetic Pump
- Number of Filling Heads: 2
- Suitable Bottle Size: Φ15-30 mm, H=50-120 mm
- Suitable Cap Size: Φ15-25 mm
- Working Speed: ~25-40 BPM
- Recommended Filling Volume: 5-20 ml
- Filling Accuracy: ±1%
- Air Pressure: 0.4-0.8 MPa
- Machine Size: ~1937×1866×1628 mm
- Machine Weight: ~480 kg
- Package Size:
Vibratory + Conveyor: ~1130×820×570 mm
Bracket: ~800×650×1870 mm
Main Machine: ~1180×1110×1760 mm - Package Weight: ~656 kg (145+125+386 kg)
BOTTLE GROUPING
The grouping structure can be customized to the bottle size and organizes bottles for timely, orderly conveying.
The grouping structure can be customized to the bottle size and organizes bottles for timely, orderly conveying.
CONTROL PANEL
The swing-arm control panel provides convenient access for clear, intuitive parameter setting.
The swing-arm control panel provides convenient access for clear, intuitive parameter setting.
ROLLER-BALL FEEDER
The feeding system can be customized to the roller-ball size and supplies components continuously for smooth operation.
The feeding system can be customized to the roller-ball size and supplies components continuously for smooth operation.
BOTTLE FEEDING
The feeding structure guides bottles upright into the star wheel to support accurate positioning.
The feeding structure guides bottles upright into the star wheel to support accurate positioning.
MAGNETIC PUMP
The SUS316 magnetic pump handles liquid filling, and the pump type can be customized to production requirements.
The SUS316 magnetic pump handles liquid filling, and the pump type can be customized to production requirements.

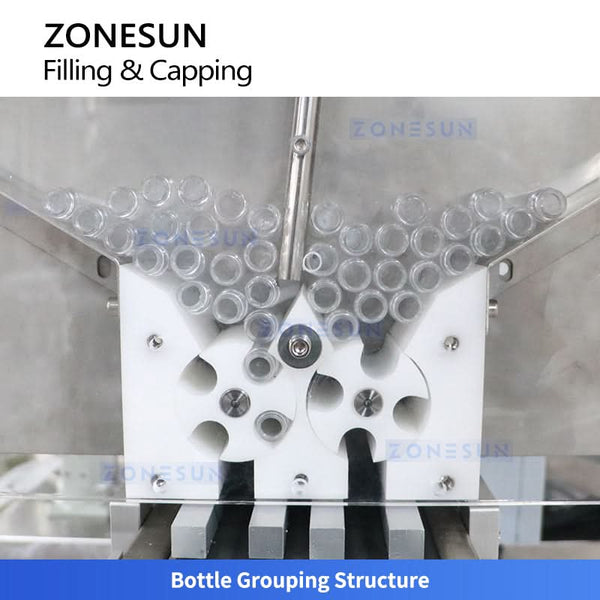

Bottle Grouping Structure
Customizable based on bottle size, it transports bottles in time and orderly.
Customizable based on bottle size, it transports bottles in time and orderly.

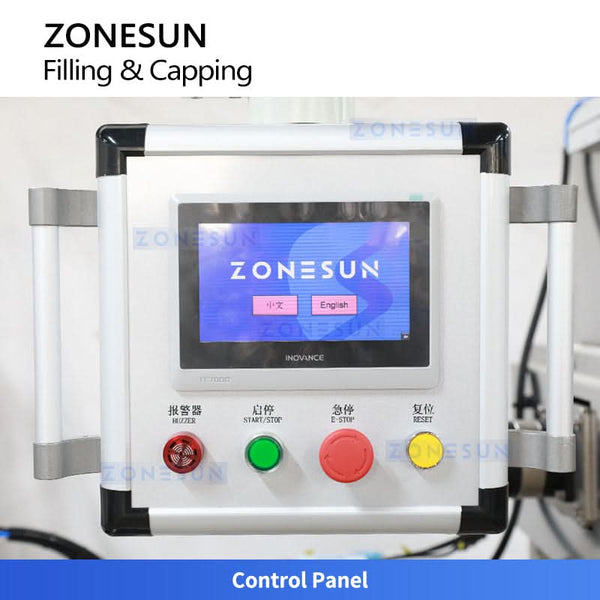

Control Panel
Equipped with a swing arm, makes parameter setting more convenient & more intuitive.
Equipped with a swing arm, makes parameter setting more convenient & more intuitive.

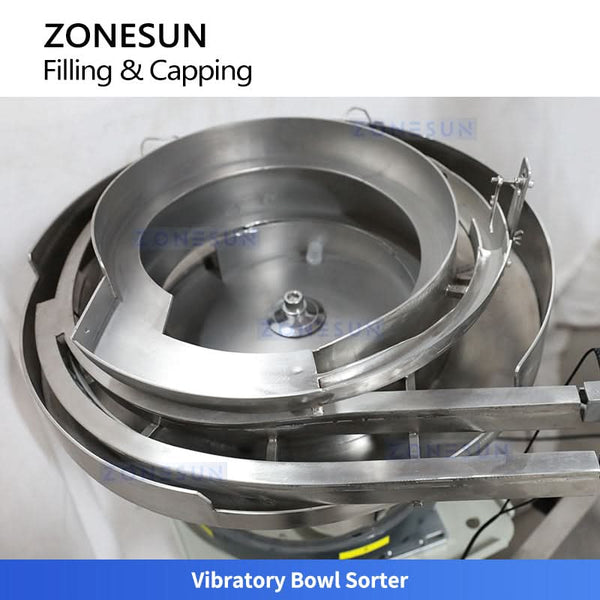

Vibratory Bowl Sorter
Customizable based on roller ball size, it can feed roller ball in time to ensure smooth work.
Customizable based on roller ball size, it can feed roller ball in time to ensure smooth work.

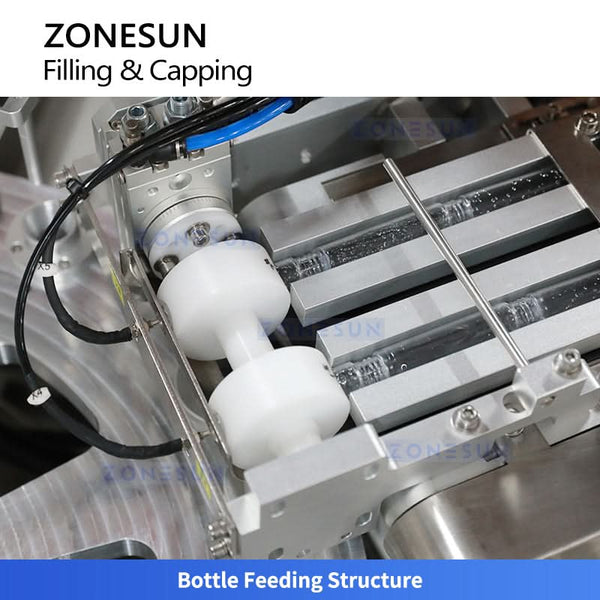

Bottle Feeding Structure
Ensure bottles can be put upright into starwheel, improves working accuracy.
Ensure bottles can be put upright into starwheel, improves working accuracy.

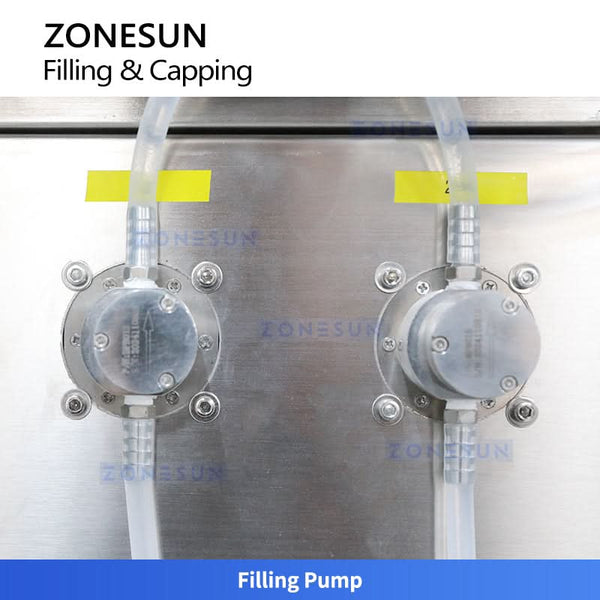

Filling Pump
Equipped with SUS316 magnetic pump, type of filling pump is customizable as production need.
Equipped with SUS316 magnetic pump, type of filling pump is customizable as production need.
Working Structure
Bottle feeding, filling, stopper pressing & cover pressing are combined together, saves working space.
Bottle feeding, filling, stopper pressing & cover pressing are combined together, saves working space.
