ZS-AZLF1 Heated Filler for Liquid Soap and Candle Materials
The ZONESUN ZS-AZLF1 is a stainless steel filling machine for liquid soap, hand-wash products, candle materials and other compatible products. Its heated hopper, handheld nozzle and adjustable controls support flexible filling across a wide volume range.
Key Features
- 90 kg hopper capacity, based on material density
- 0–100°C temperature range for compatible heated materials

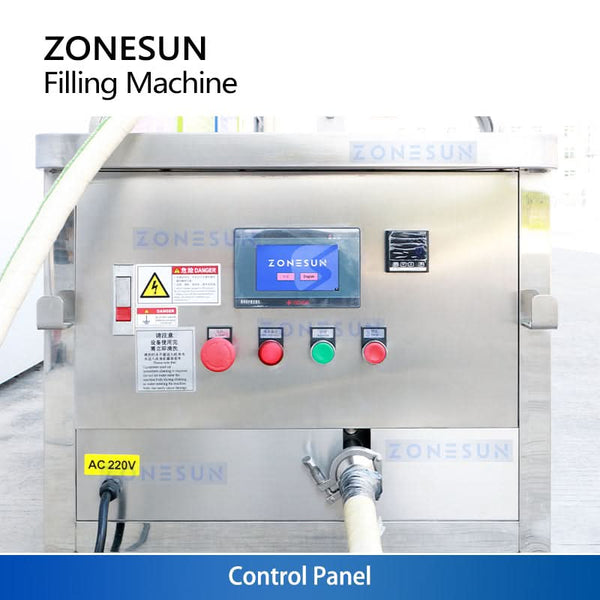

- Control panel for flow rate, filling interval and reflux time

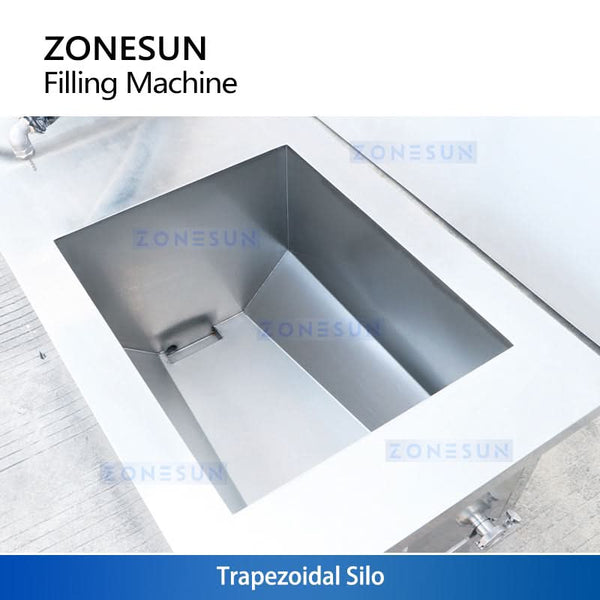

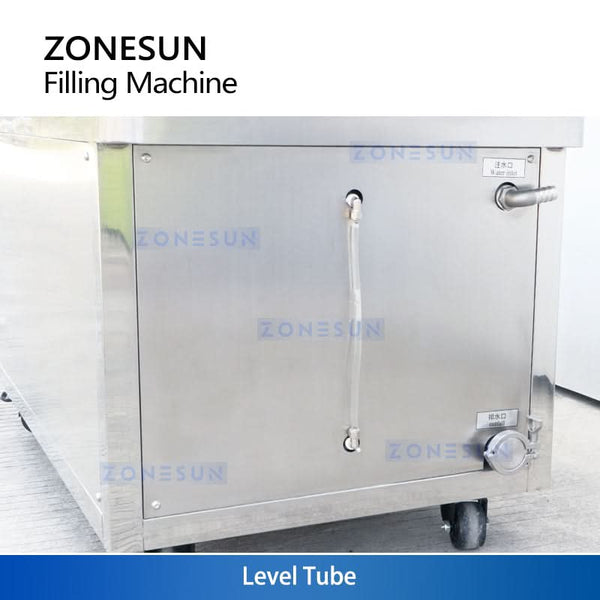

- Trapezoidal hopper and visible level tube help operators monitor and use material

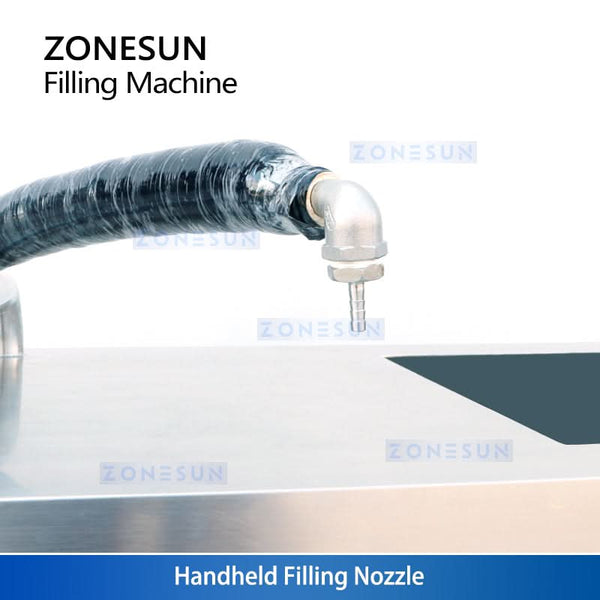

- Handheld nozzle accommodates different container formats
Technical Specifications
| Model | ZS-AZLF1 |
|---|---|
| Voltage / power | AC 220 V / 4 kW |
| Filling volume | 20 g–85 kg (based on material density) |
| Hopper capacity | 90 kg (based on material density) |
| Working speed | 25–8000 BPH (based on filling volume) |
| Temperature range | 0–100°C |
| Machine material | SUS304 |
| Machine size | Approx. 1120 × 640 × 730 mm |
| Machine weight | Approx. 82 kg |
| Package size | Approx. 1240 × 730 × 1210 mm |
| Package weight | Approx. 145 kg |
Before ordering: Confirm that your material viscosity, target fill weight and operating voltage are compatible with the selected setup.
