Description

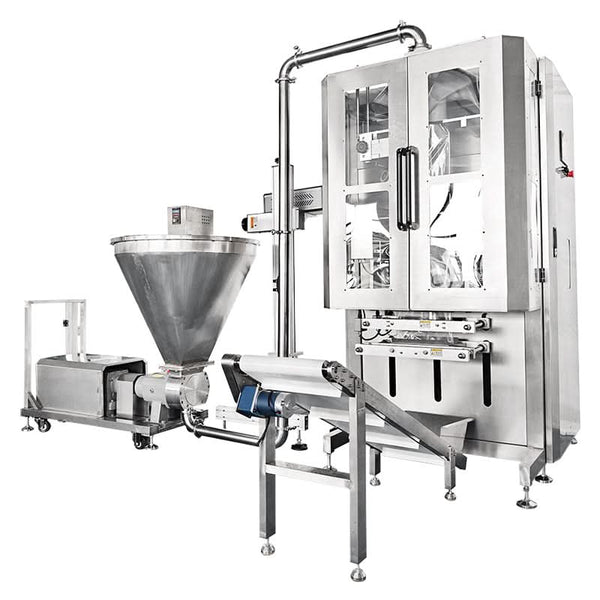

This fully automatic sauce filling machine is designed for high-viscosity foods, semi-fluid fillings, syrups and homogenized liquids. Equipped with a cleaning roller, it can achieve bubble-free packaging, prevent oxidation and deterioration, and greatly extend the shelf life. Simple and stable operation, it is an ideal choice for food production lines that pursue efficiency, hygiene and long-term freshness.
Parameter
- Model: ZS-MGZ630
- Conveying Pipeline: Diameter 63mm
- Conveying System: Standard L=1300 belt conveyor

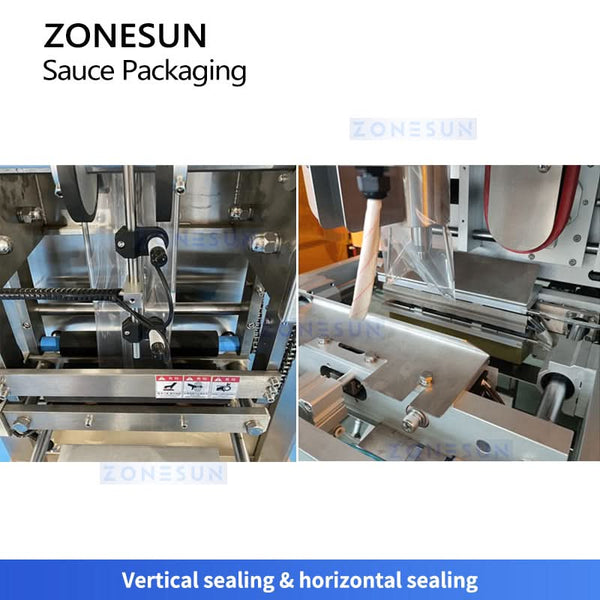

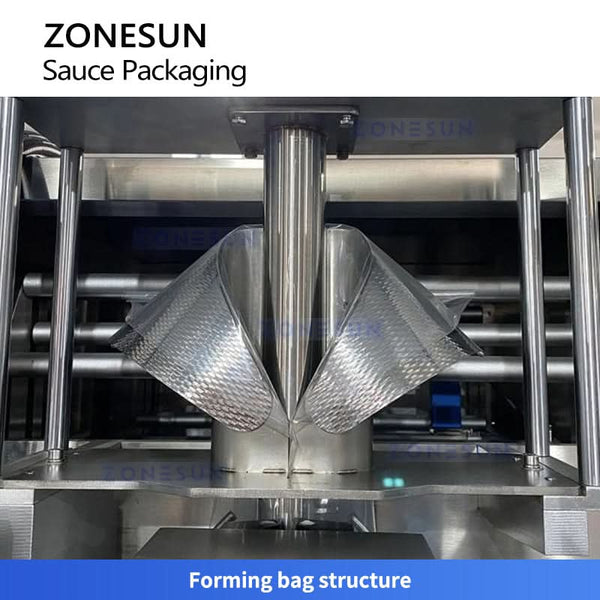

- Packaging Form: Vertical back seal, rectangular bag
- Packaging Weight: 5000g
- Packaging Speed: 3–5 bags/minute
- Bag Length: 660mm
- Bag Width: 300mm (film width 630mm)
- Date Printing: Date coder (standard)
- Power Supply: 380V 50Hz
- Power: 4KW
- Air Source: 0.7MPa, 0.5m³/min
- Packaging Material: NY/PE (thickness 9–10 wire)
- Machine Weight: Approx. 800kg (main machine 450kg, pump 350kg)
- Main Machine Dimensions: 1200 × 1100 × 2050mm (L × W × H)
- Filling Pump Dimensions: 1700 × 900 × 1250mm (L × W × H)
