Overview

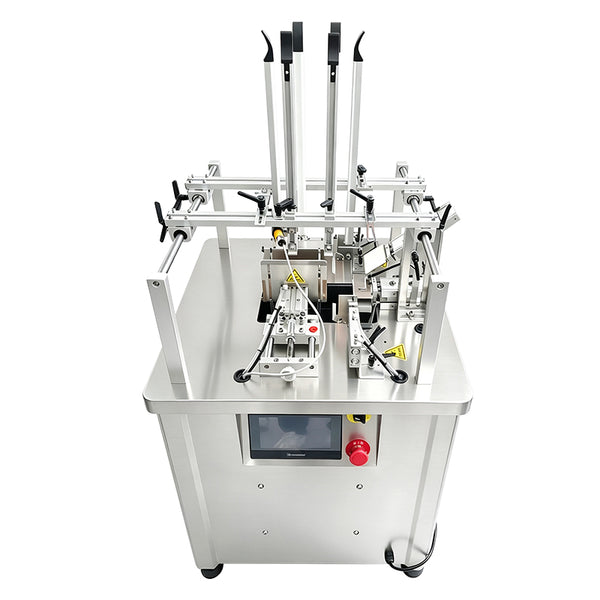

The ZONESUN ZS-SFEM01 is a semi-automatic carton forming machine built for efficient opening and forming of pre-folded paperboard boxes. With a compact footprint and touchscreen controls, it runs at 30–50 cartons/min and accommodates a wide range of carton sizes via customized tooling. Ideal for small-batch and flexible packaging of cosmetics, pharmaceuticals, personal care products, and other consumer goods.

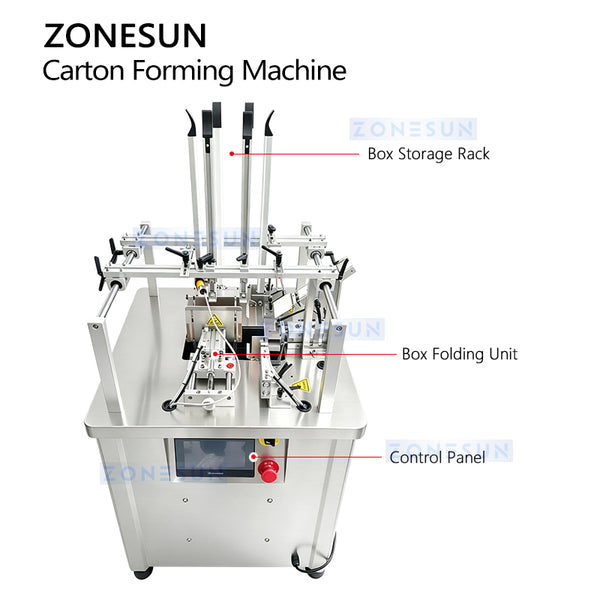

Key Features
Touchscreen Control Panel
Quickly adjust forming parameters for different carton sizes — minimal operator training, faster changeover.
Box Storage Rack with Photoelectric Detection
Holds flat carton blanks for continuous feeding. Sensor detects material shortages and halts the machine to prevent misfeeds.
Vacuum Carton Opening System
Vacuum suction reliably opens flat blanks and positions them for the folding station — consistent every cycle.
Precision Flap Folding Unit
Folds carton flaps into place with repeatable accuracy, ensuring consistent carton geometry for downstream filling and sealing.
Performance Highlights

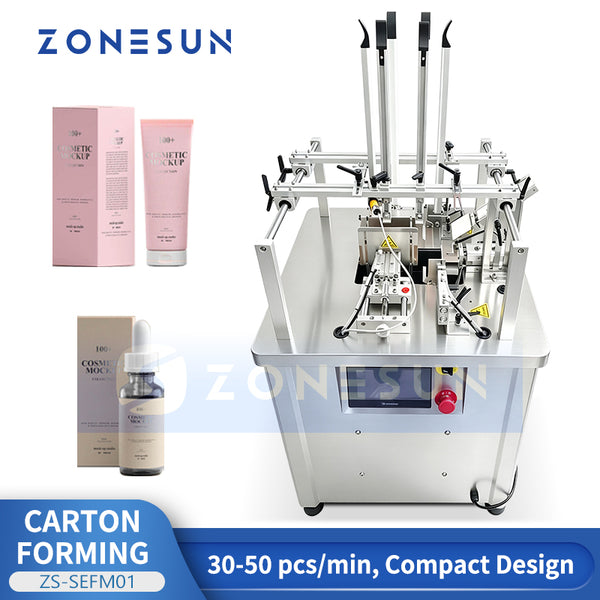

- 30–50 cartons/min forming speed
- Carton range: 25–120 × 20–70 × 45–200 mm (customizable)
- Compact footprint: 600 × 600 × 1,500 mm — fits tight production spaces
- Low noise: ≤85 dB
- Low air consumption: 2 L/min at 0.5–0.8 MPa
Specifications
| Machine Model | ZS-SFEM01 |
| Power Supply | 220 V, 50 Hz |
| Power | Approx. 200 W |
| Working Capacity | Approx. 30–50 pcs/min |
| Applicable Box Size (L × W × H) | Approx. 25–120 × 20–70 × 45–200 mm (customizable) |
| Air Pressure | 0.5–0.8 MPa |
| Air Consumption | 2 L/min |
| Noise Level | ≤85 dB |
| Machine Dimensions (L × W × H) | Approx. 600 × 600 × 1,500 mm |
| Machine Weight | Approx. 50 kg |
Applications
Designed for opening and forming pre-folded cartons used in cosmetics, skincare, pharmaceuticals, personal care, and general consumer goods packaging. Compact design and wide carton-size compatibility make it well-suited for small-batch and multi-SKU production lines.

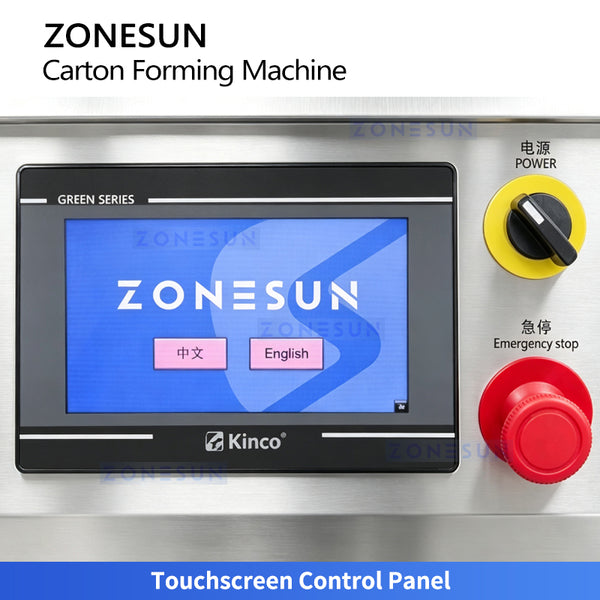

Control Panel: Allows operators to quickly adjust forming parameters for different carton sizes, simplifying operation and reducing setup time.

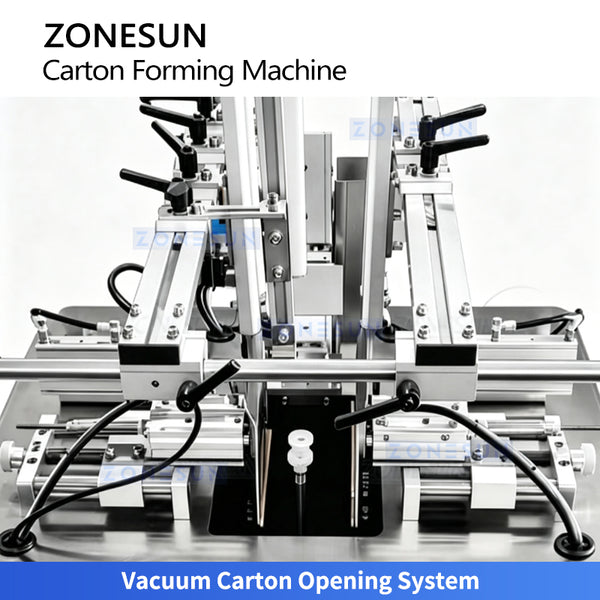

Carton Opening: Uses vacuum suction to open flat carton blanks quickly and reliably, preparing them for the subsequent folding and forming process.

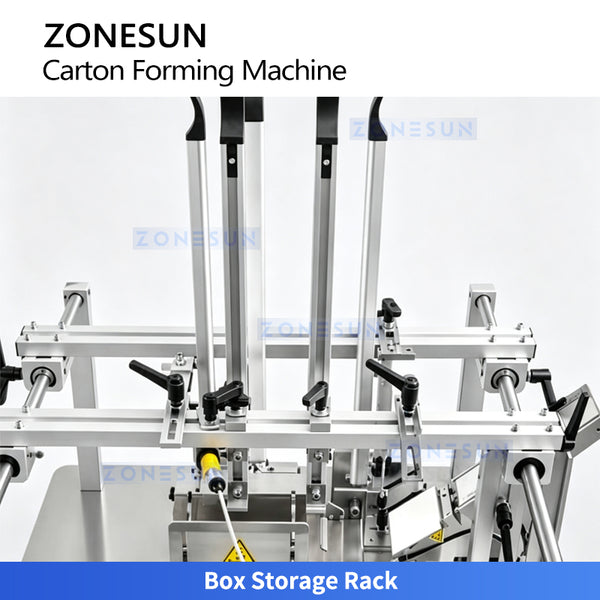

Box Storage Rack: Holds flat carton blanks for continuous feeding. A photoelectric sensor detects carton availability to help prevent material shortages and ensure smooth operation.

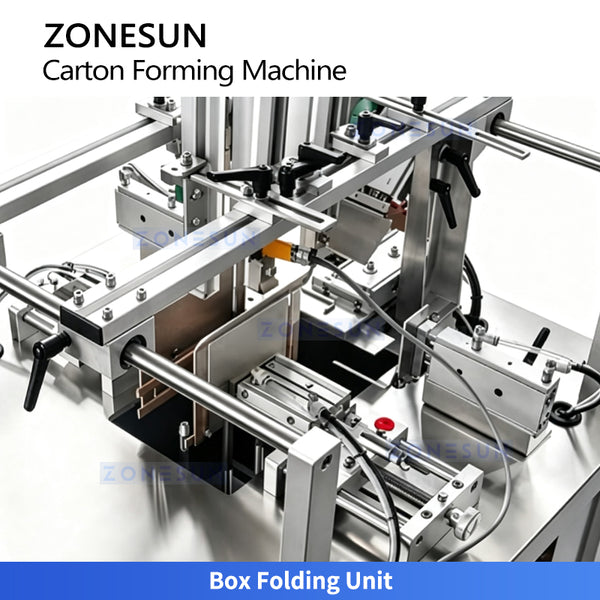

Box Folding: Precisely folds carton flaps into position for consistent, reliable forming and smooth downstream operation.
