DESCRIPTION

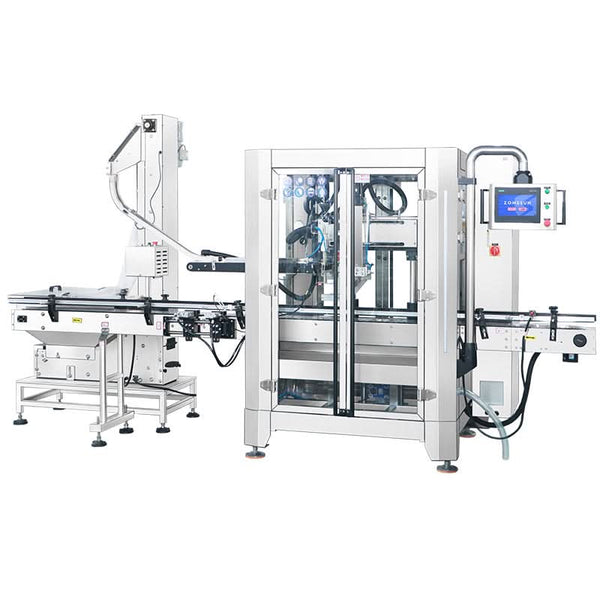

The ZONESUN ZS-VTXG1 is an automatic tracking capping machine designed for high-speed, precision sealing of bottles with various cap sizes. Featuring a servo-controlled capping head, pneumatic cap placement, and a UV-sterilized cap elevator, it ensures hygienic and efficient operation. With a working speed of 30–40 bottles per minute and customizable conveyor dimensions, this system is ideal for medium to large-scale production lines in food, cosmetics, chemical, and pharmaceutical industries.
Parameter
- Model: ZS-VTXG1
- Machine Voltage: 110V / 220V / 380V, 50–60Hz
- Power: 2.5 kW
- Suitable Cap Diameter: 20–80 mm
- Suitable Bottle Size: Customized
- Working Capacity: 30–40 BPM
- Machine Size: About 4200 × 1820 × 2350 mm
- Machine Weight: About 450 kg
-
Package Size:
- Capping Machine: 2490 × 1220 × 2230 mm
- Cap Elevator: 2350 × 860 × 1390 mm
-
Package Weight:
- Capping Machine: About 754 kg
- Cap Elevator: About 240 kg

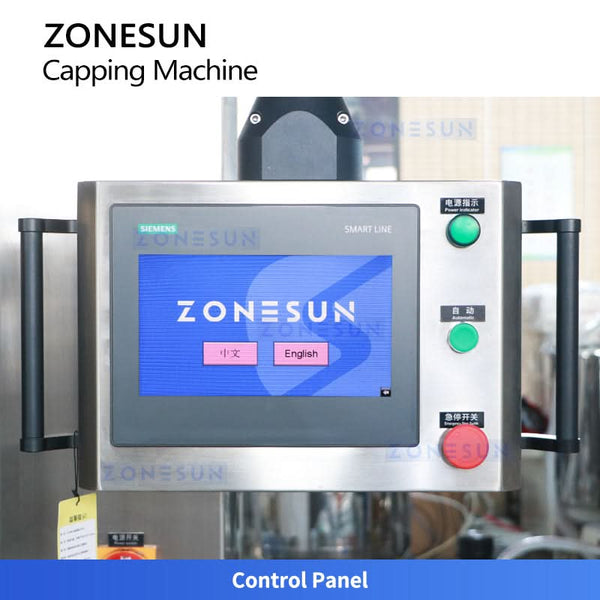

SWING-ARM CONTROL PANEL
Provides intuitive parameter settings through a flexible swing-arm interface.
Provides intuitive parameter settings through a flexible swing-arm interface.

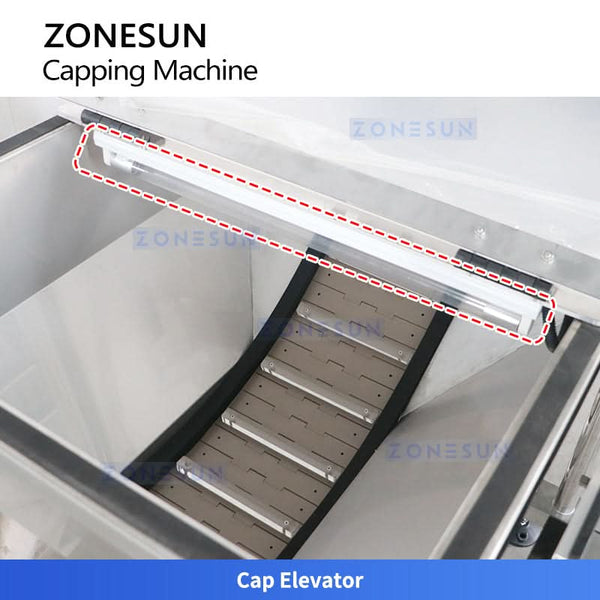

CAP ELEVATOR
Supplies caps continuously and includes UV sterilization for smooth capping operation.
Supplies caps continuously and includes UV sterilization for smooth capping operation.

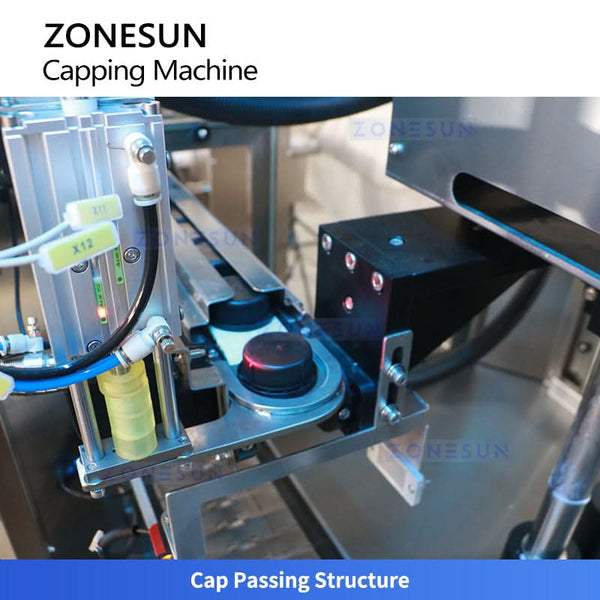

PNEUMATIC CAP TRANSFER
Uses a pneumatic gripper to transfer caps and reduce placement errors.
Uses a pneumatic gripper to transfer caps and reduce placement errors.

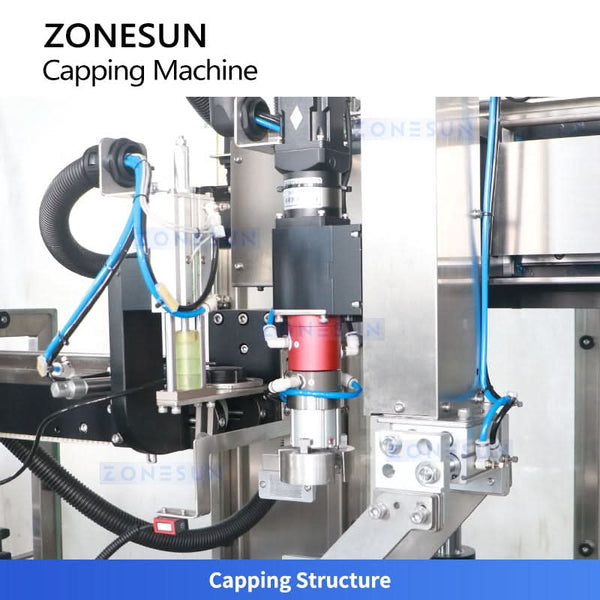

SERVO TRACKING CAPPING
Uses servo-controlled tracking heads to tighten caps efficiently.
Uses servo-controlled tracking heads to tighten caps efficiently.

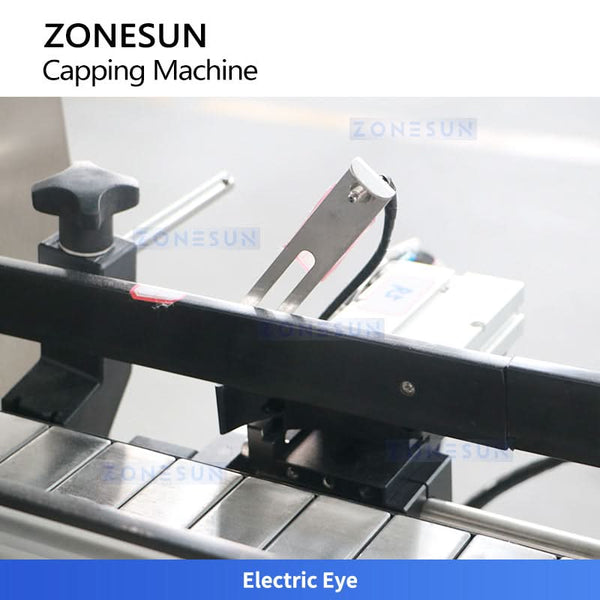

BOTTLE SENSOR
Detects passing bottles to trigger automatic operation.
Detects passing bottles to trigger automatic operation.
CHAIN CONVEYOR
Provides strong load capacity, with customizable length and width.
Provides strong load capacity, with customizable length and width.
