Description

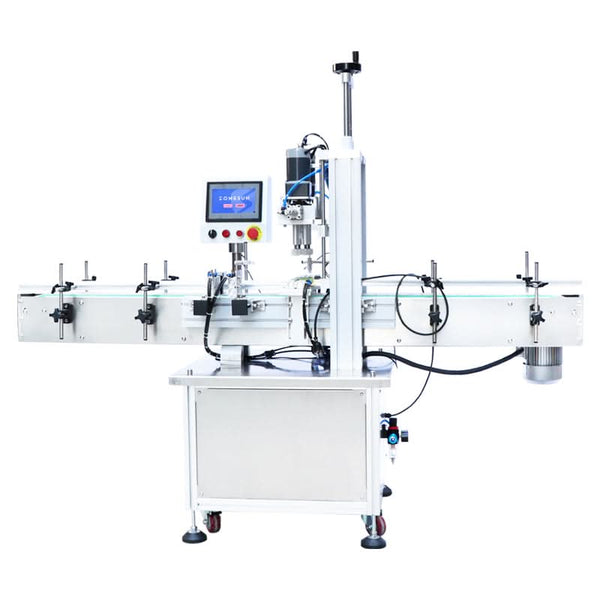

The ZONESUN ZS-XG16 machine is used for automatic capping of plastic bottles and glass bottles in cosmetics, food and beverage, pesticide and fertilizer, chemical industry,Can be applied to a variety of bottle types, high production efficiency.
Parameter
- Bottle height:30-300mm
- Bottle diameters:18-70mm
- Working speed:20-60bottles/min(depending on bottle and cap size and shape)
- Working voltage:110V/220V 50-60 HZ
- Working pressure:0.4-0.6Mpa
- Dimension:1930×740×1600mm
- Packing size:2000×820×1760mm
- Weight : 150 kg
Attention
The shipping cost of the seller's shipping method（sea transportation ) is the cost to the port. In addition, for Europe, this freight price is transported to the door by rail. If you have any questions, please contact us.

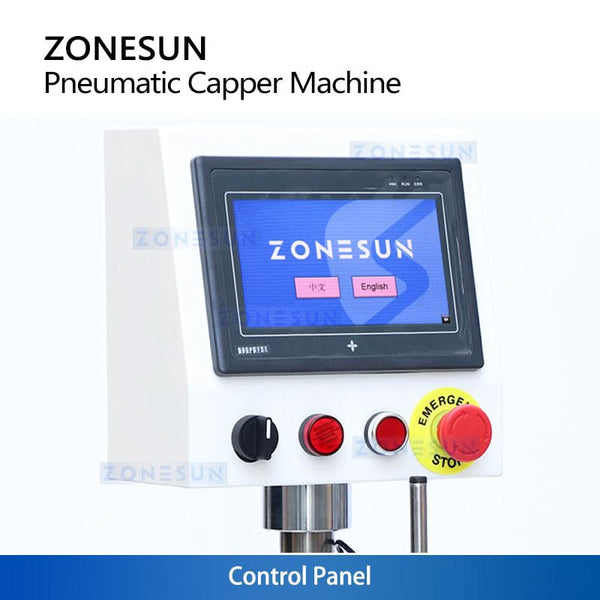

CONTROL PANEL
The multilingual control panel manages capping with monitoring, mode and time settings, and an emergency stop.
The multilingual control panel manages capping with monitoring, mode and time settings, and an emergency stop.

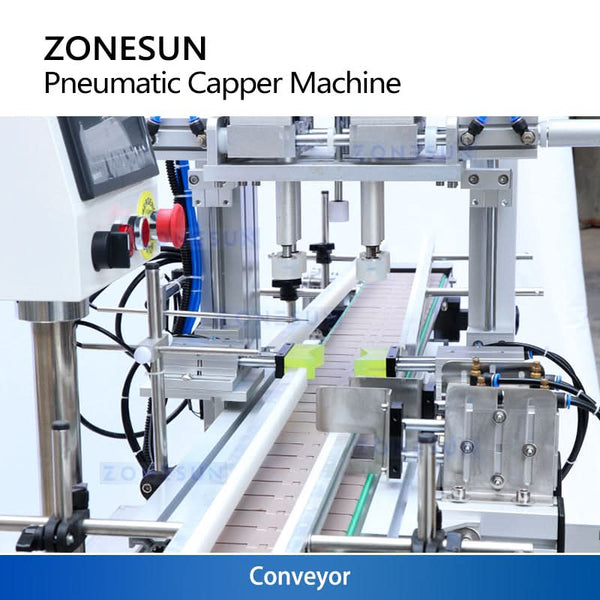

CONVEYOR SPEED CONTROL
The conveyor speed can be preset and adjusted to suit production requirements.
The conveyor speed can be preset and adjusted to suit production requirements.

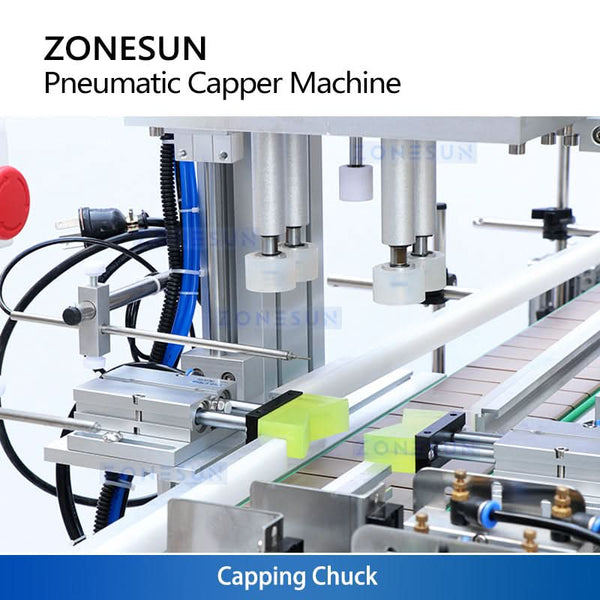

CAPPING CHUCK
Suitable for different cap types, with capping and pressing times adjustable from the control panel.
Suitable for different cap types, with capping and pressing times adjustable from the control panel.

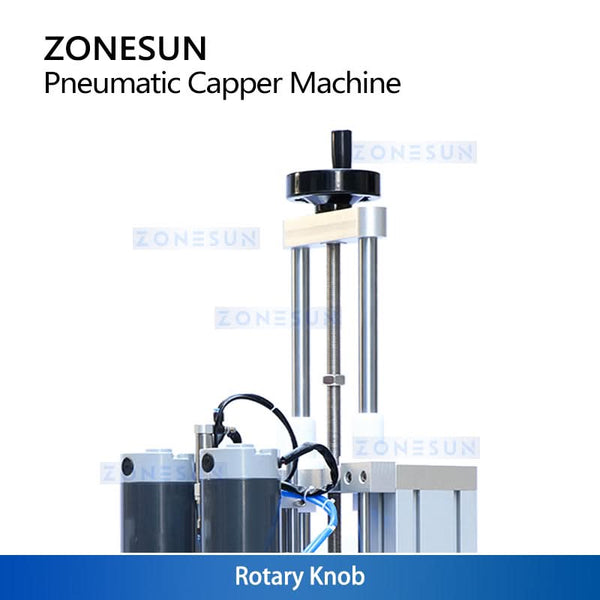

HEIGHT ADJUSTMENT KNOB
Rotate the knob to adjust the working height for different bottle and cap sizes.
Rotate the knob to adjust the working height for different bottle and cap sizes.

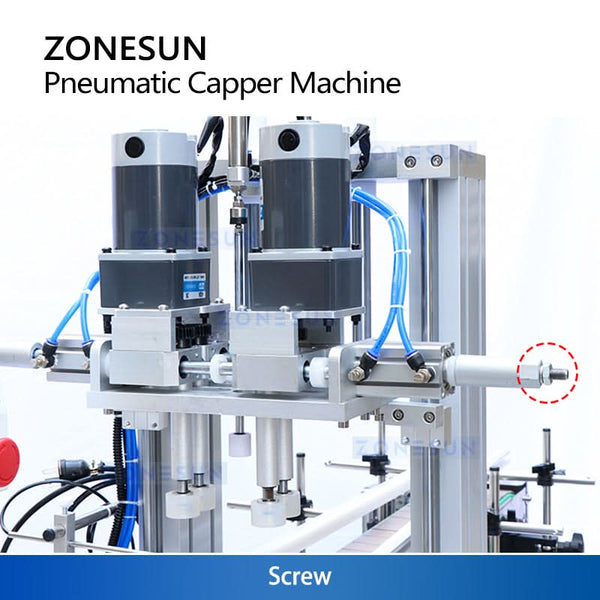

CHUCK ADJUSTMENT
Use the adjustment screw to loosen or tighten the capping chuck as needed.
Use the adjustment screw to loosen or tighten the capping chuck as needed.
ELECTRIC EYE
Detects bottles as they pass through, helping save time and improve efficiency. Sensor sensitivity can be adjusted as needed.
Detects bottles as they pass through, helping save time and improve efficiency. Sensor sensitivity can be adjusted as needed.
