ZONESUN ZS-CBG600 Automatic Small Digital Control Waterproof Conveyor Belt
Notice
1.This conveyor belt can be connected withsingle headfilling machine. Thefilling machineshould bebought separately. Please contact us if you need this.
2.The semi-auto filling machine should be with apedal switch port, so that it can be connected with this conveyor belt.
3.This machine is only suitable for the filling machine whose pedal switch port hastwo holes.
Parameter
|
Machine Model |
ZS-CBG600 |
ZS-CBG1200 |
|
Voltage |
220V/110V |
|
|
Power Input |
DC 12-15V |
|
|
Power |
60W |
|
|
Conveying Speed |
10cm/s |
|
|
Size of Conveyor Belt |
600mm(L)*100mm(W) |
1200mm(L)*100mm(W) |
|

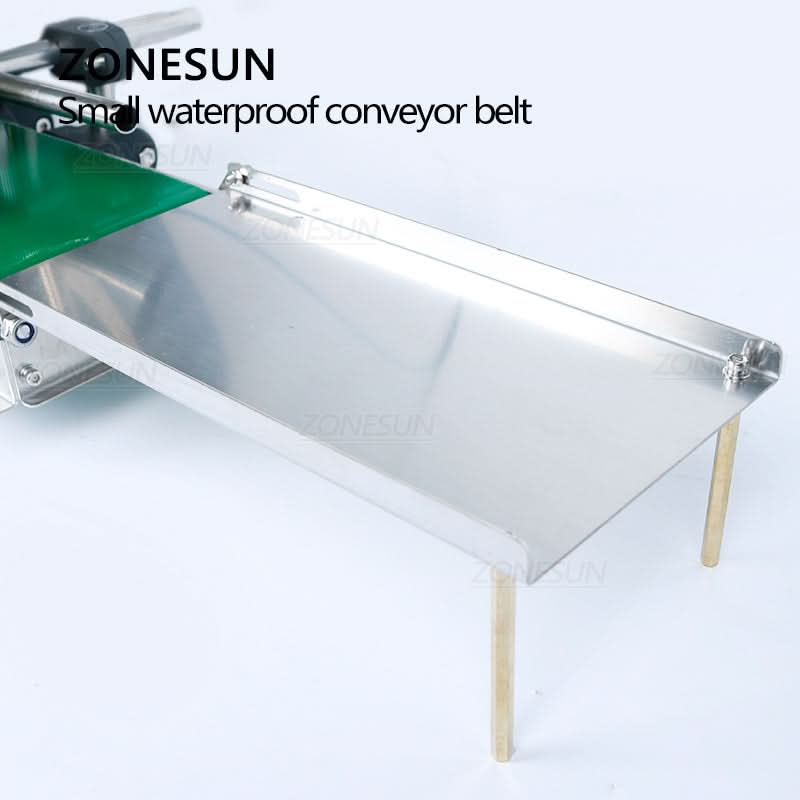

Size of Collecting Tray |
200mm(L)*100mm(W) |
|
|
Height of Bracket |
400mm |
|
|
Net Weight |
2.9kg |
|
|
Product Size |
800mm*100mm*400mm(L*W*H) |
|
|
Gross Weight |
3.5kg |
About 5kg |
|
Package Size |
650mm*150mm*100mm(L*W*H) |
About 670cm*170cm*200cm(L*W*H) |
Description
This conveyor belt is designed for connecting with semi-auto filling machine, realizing upgrade from semi-automation to automation. Help to improve working efficiency and save labor cost.
