ZONESUN ZS-DTDP-4P Automatic Liquid Filling Machine with 4 Nozzles

Price: $1,899.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

DDP (Delivered Duty Paid) service may be available for selected destinations. For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

For non-DDP shipments, import duties, customs clearance fees, local taxes, and other destination charges may apply.

样式:Ordinary nozzle

Ordinary nozzle

Diving nozzle

Product variants

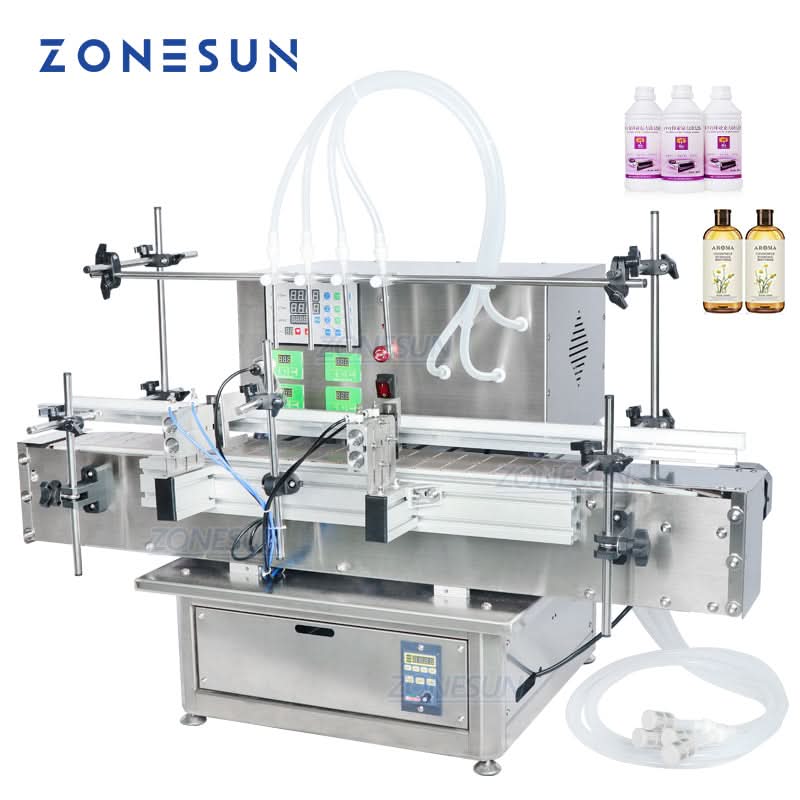

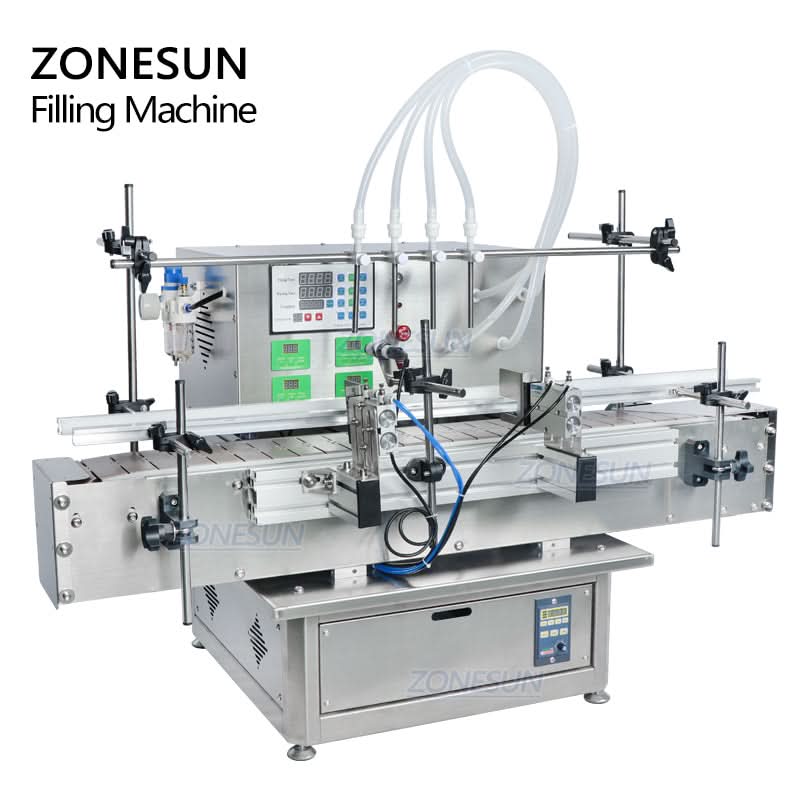

The ZONESUN ZS-DTDP-4P is an automatic diaphragm pump filling machine designed for non-particle liquids such as shampoo, juice, perfume, and essential oils. Featuring four nozzles and a durable chain conveyor, it ensures stable, high-speed filling for glass bottles, jars, and containers. Ideal for cosmetic, beverage, pharmaceutical, and daily chemical industries, this machine offers reliable performance and customizable bottle compatibility for streamlined production.

Parameter Value
Machine Model ZS-DTDP-4P
Voltage 110V / 220V, 50–60Hz
Power 250W
Max Flow Velocity 4000ml/min (per nozzle, based on water)
Working Speed 1500–3000 bottles/hour (depends on size/liquid)
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤ ±1% (for water)
Bottle Height <220mm (customizable, max 300mm)
Filling Nozzle Diameter 6mm / 8mm
Conveyor Size 1030 × 115mm (L × W)
Air Compressor Connector Size OD 8mm
Machine Size Approx. 1114 × 650 × 765mm
Package Size Approx. 1145 × 605 × 795mm
Net/Gross Weight Approx. 52kg / 78kg

ZONESUN ZS-DTDP-4P Automatic Filling Machine Diaphragm Pump Beverage Shampoo Essential Oil Four Nozzles Glass Bottle Jar Filler

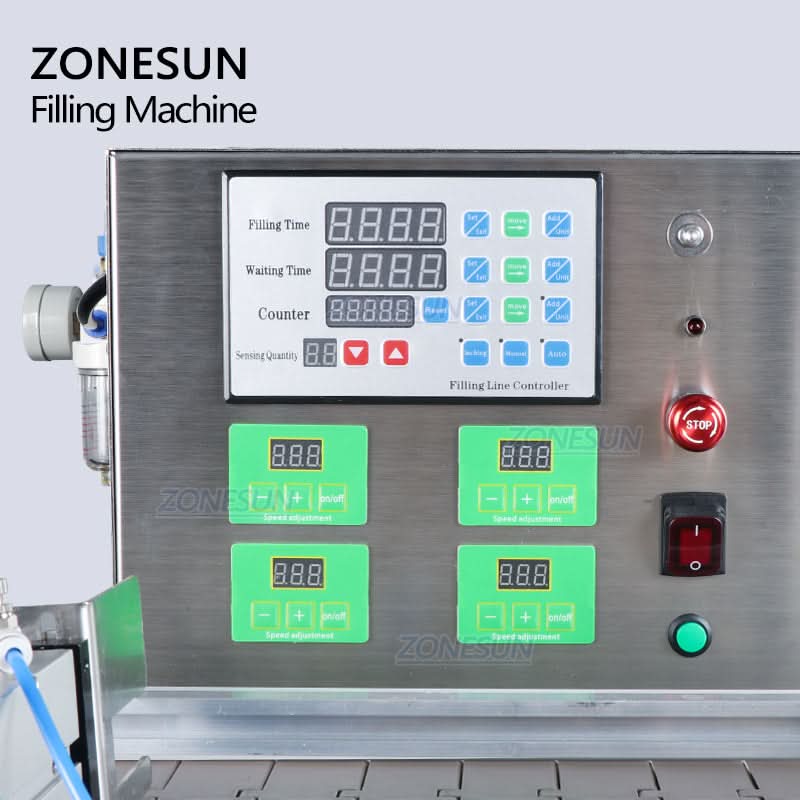

CONTROL PANEL

The control panel displays settings such as filling time and filling speed, allowing operators to adjust them according to production requirements.

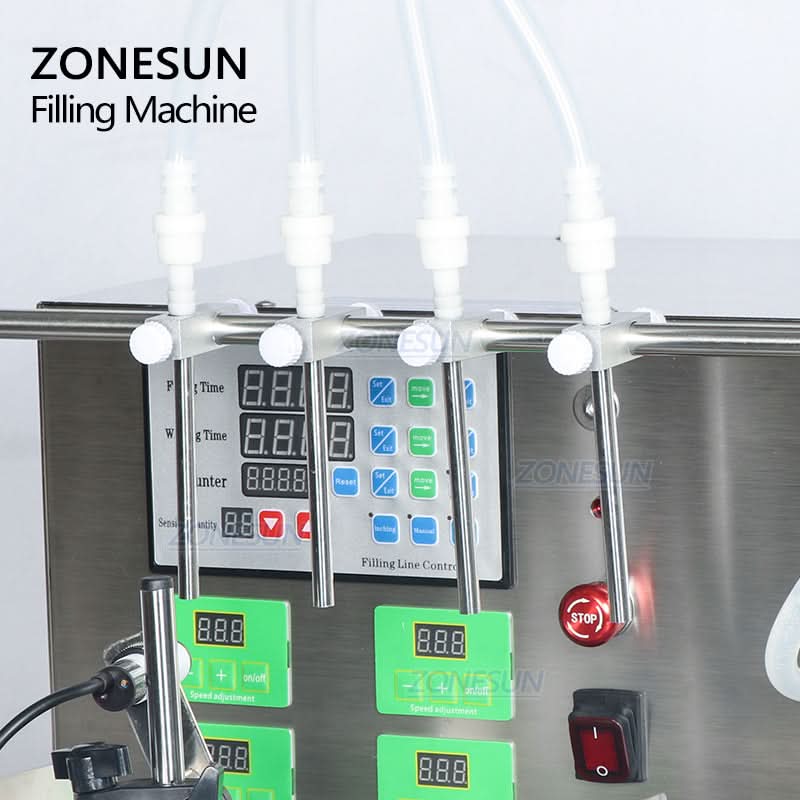

FOUR FILLING NOZZLES

The machine is equipped with four filling nozzles, and the filling time and speed of each nozzle can be controlled separately. A six-nozzle configuration can be customized if required.

ZONESUN ZS-DTDP-4P Automatic Filling Machine Diaphragm Pump Beverage Shampoo Essential Oil Four Nozzles Glass Bottle Jar Filler

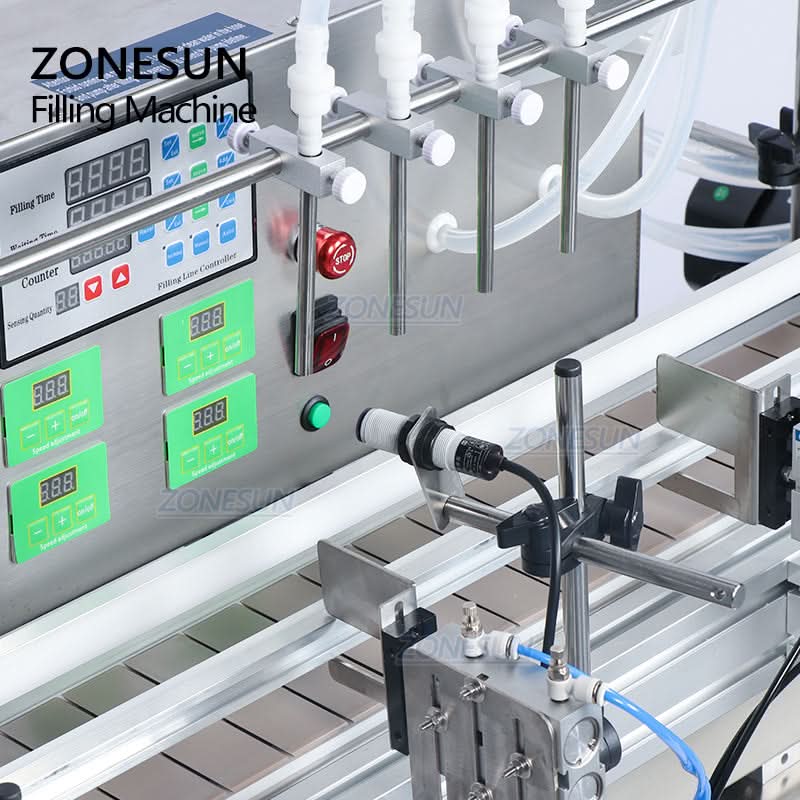

ELECTRIC EYE

The electric eye detects passing containers and signals the system to begin filling automatically, helping reduce production errors.

CHAIN CONVEYOR

The chain conveyor supports heavier and larger-volume products than a belt conveyor. Its speed can be controlled independently from the operation panel.
