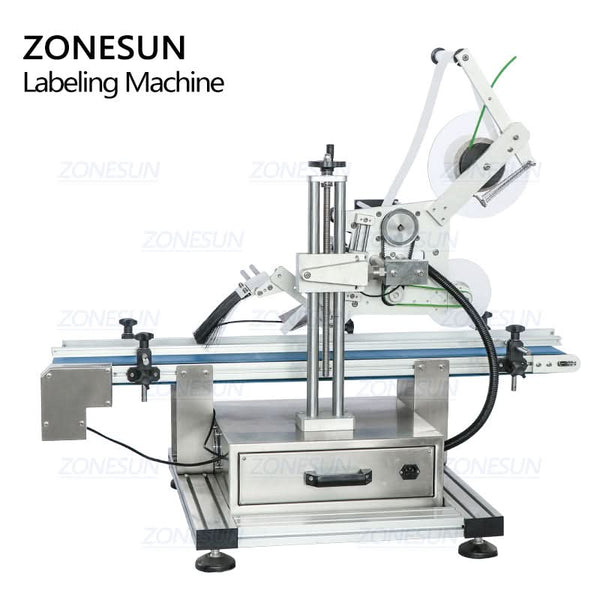

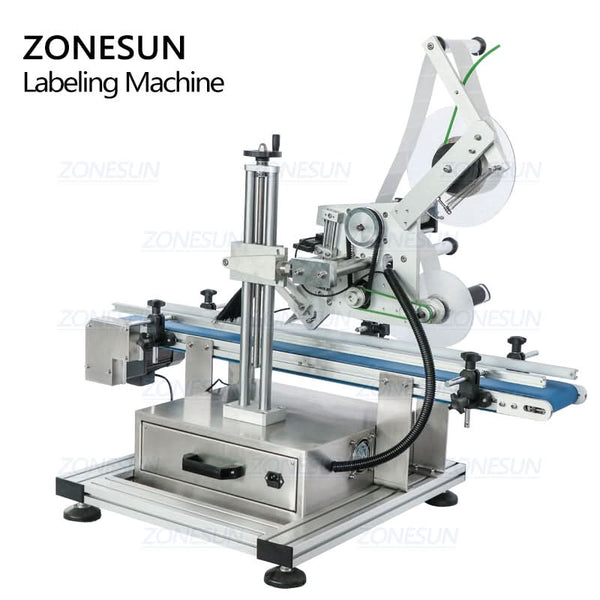

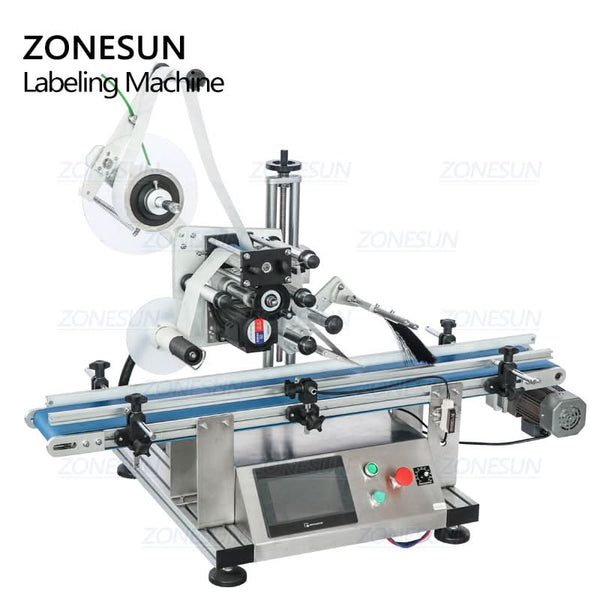

ZONESUN automatic flat surface labeling machine is an efficient and precise solution for applying labels to bottles, jars, and containers. Ideal for cosmetics, food, pharmaceuticals, and chemical industries, this label applicator improves packaging efficiency and labeling consistency. Its automated operation supports high-speed production and ensures clean label placement on various flat surfaces. Perfect for labeling plastic, glass, or metal packaging in industrial bottling lines.
Specification
Model Automatic Flat Surface Labeling Machine
Labeling Capacity 20–200 pcs/min
Labeling Accuracy ±1.0 mm
Applicable Label Size Length: 20–300 mm / Height: 15–150 mm
Applicable Product Size Diameter: 30–120 mm / Height: 20–200 mm
Roll Inner Diameter Φ75 mm
Roll Outer Diameter Φ275 mm
LABEL COUNTING
The counter tracks the number of labeled products. Operators can preset the required quantity, and the machine stops when the set count is reached.
SPEED SYNCHRONIZATION
Set the labeling speed, conveyor speed, and label-separation speed so they operate in sync. Allow sufficient time for initial adjustment to establish the required operating speed.

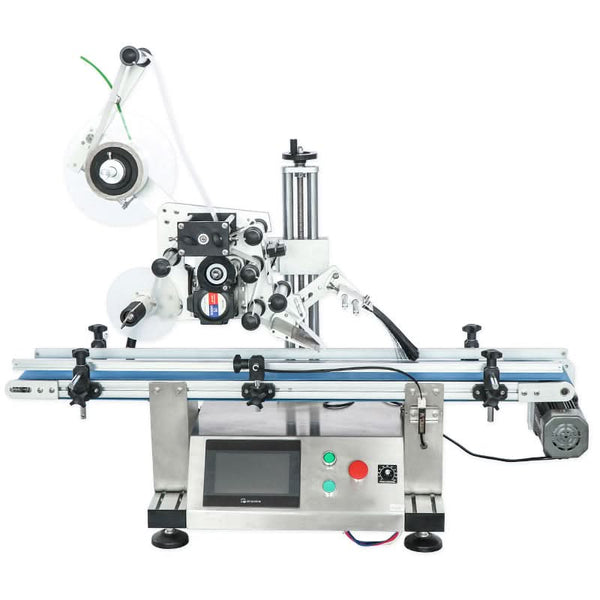

OPERATION PANEL
The English-language panel supports machine testing and operation. Operators can adjust label-separation speed and delay time, while the two side knobs control labeling and conveyor speeds.
ADJUSTABLE CONVEYOR
The conveyor width can be adjusted to the product diameter and is designed for products smaller than 200 mm in diameter.

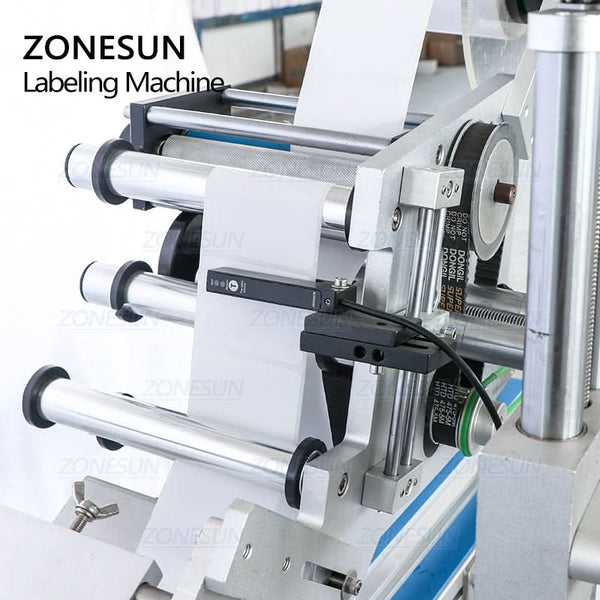

PHOTOELECTRIC SENSOR
The imported fiber-optic amplifier detects products automatically and triggers the labeling process.
SPEED-REGULATING MOTOR
The speed-regulating motor provides stable, non-slip operation under high loads and is designed for reliable use and convenient maintenance.
STAINLESS STEEL BODY
The machine body is made of high-quality stainless steel for a clean appearance and long service life.
