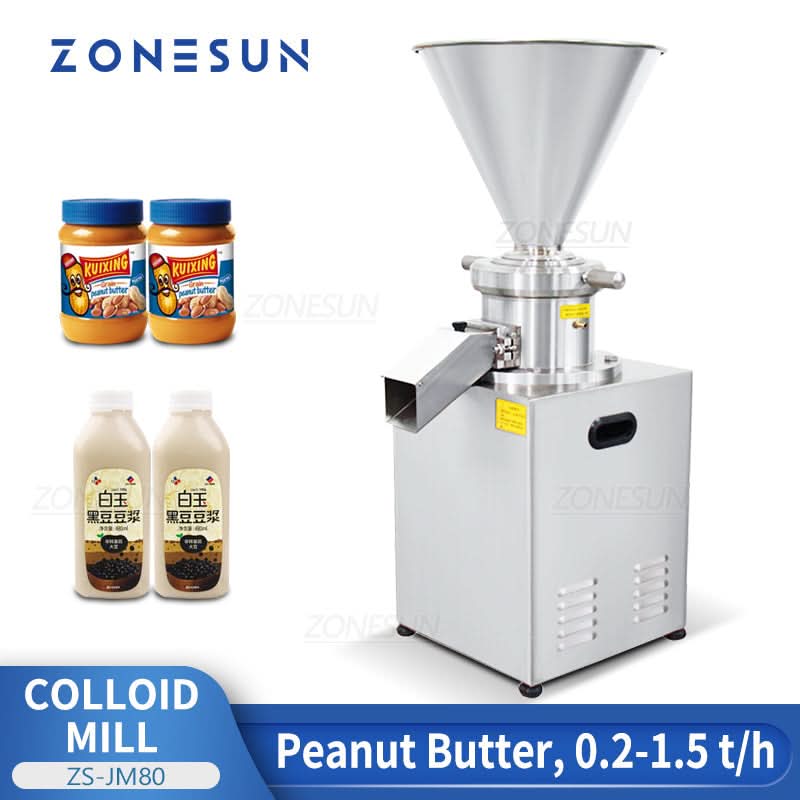

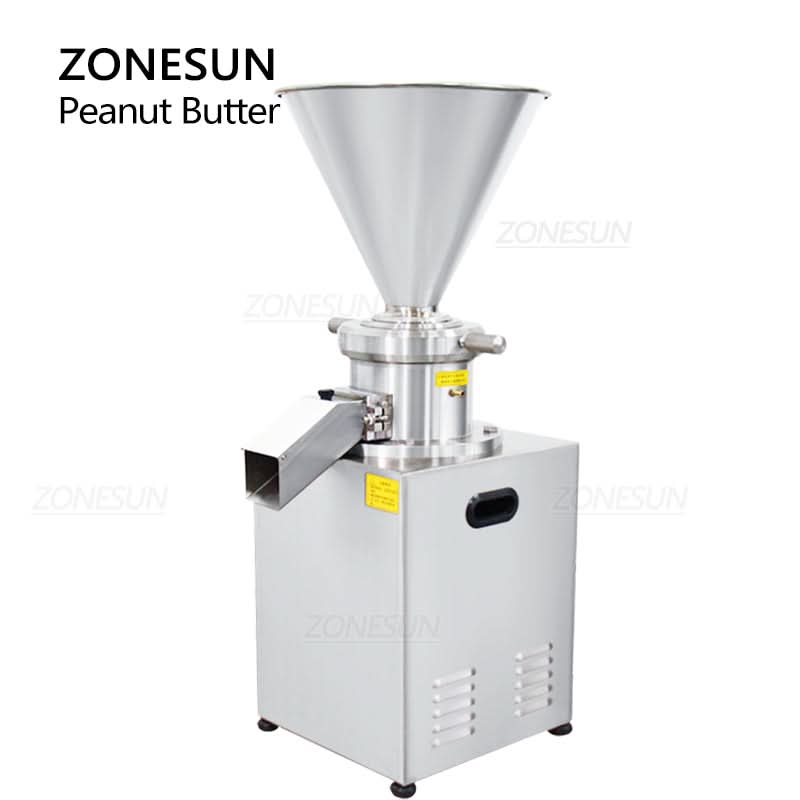

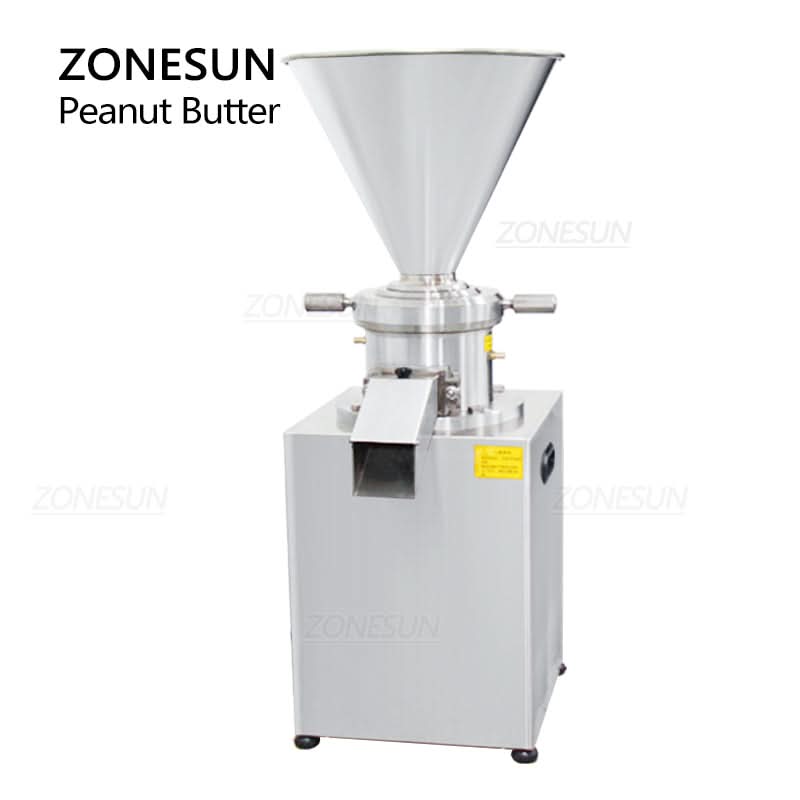

The ZS-JM80 colloid mill is a high-efficiency grinder ideal for producing peanut butter, tahini, almond paste, chili sauce, and similar viscous products. Its large hopper and powerful motor ensure smooth material flow and stable output. Crafted entirely from 304 stainless steel, the compact design saves space while delivering industrial-grade performance. Widely used in food processing and daily chemical industries, it's built for reliability and productivity.
Electrical Requirements
Choose the power configuration that matches your facility. All four options below are available for purchase. Check the voltage, frequency, phase, and rated current of the selected variant before ordering. Have a qualified electrician confirm the circuit breaker and cable specifications for your installation.
| Available configuration | Rated current |
|---|---|
| 380 V / 50 Hz / 3-phase | 8 A |
| 220 V / 60 Hz / 3-phase | 13 A |
| 220 V / 50 Hz / single-phase | 26 A |
| 220 V / 60 Hz / single-phase | 26 A |
Specifications
| Model | ZS-JM80 |
|---|---|
| Power supply | See the four purchasable variants above |
| Power | 4 kW |
| Motor speed | 2,800 rpm |
| Capacity | 0.2–1.5 tons/hour |
| Processed material size | 10–50 µm |
| Approx. weight | 85 kg |
| Approx. machine size | 350 × 350 × 840 mm |

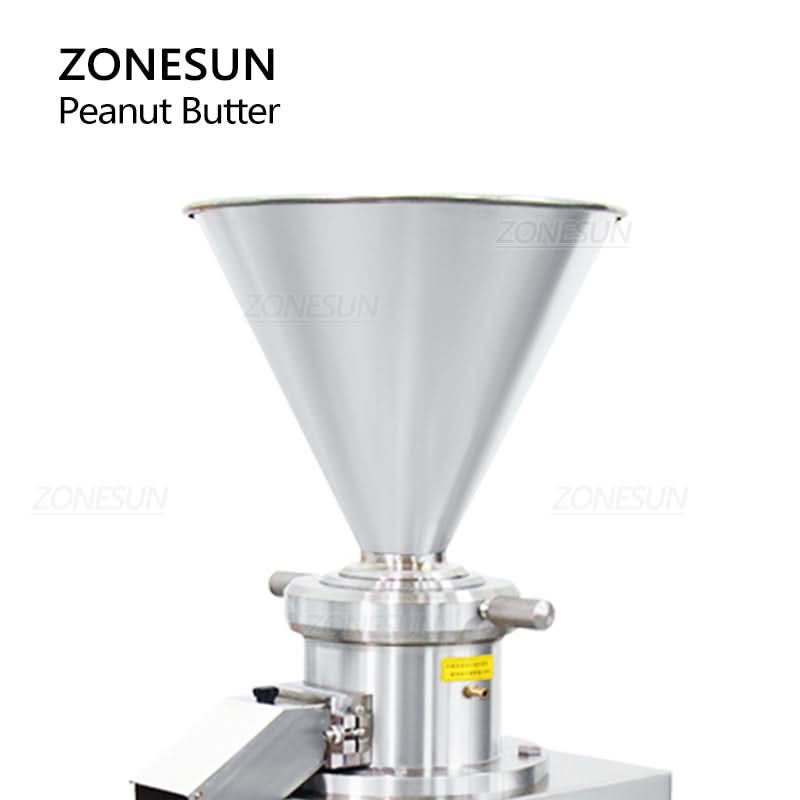

LARGE FEEDING HOPPER
The large hopper supports convenient material feeding.

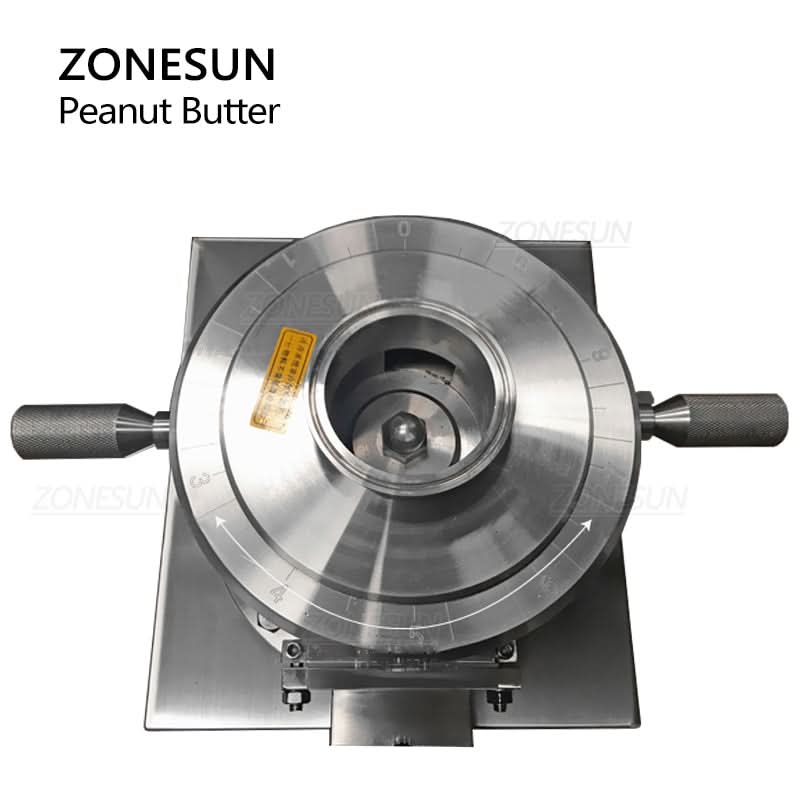

GRINDING-FINENESS ADJUSTMENT
The handles and graduated dial are used to adjust the grinding fineness.

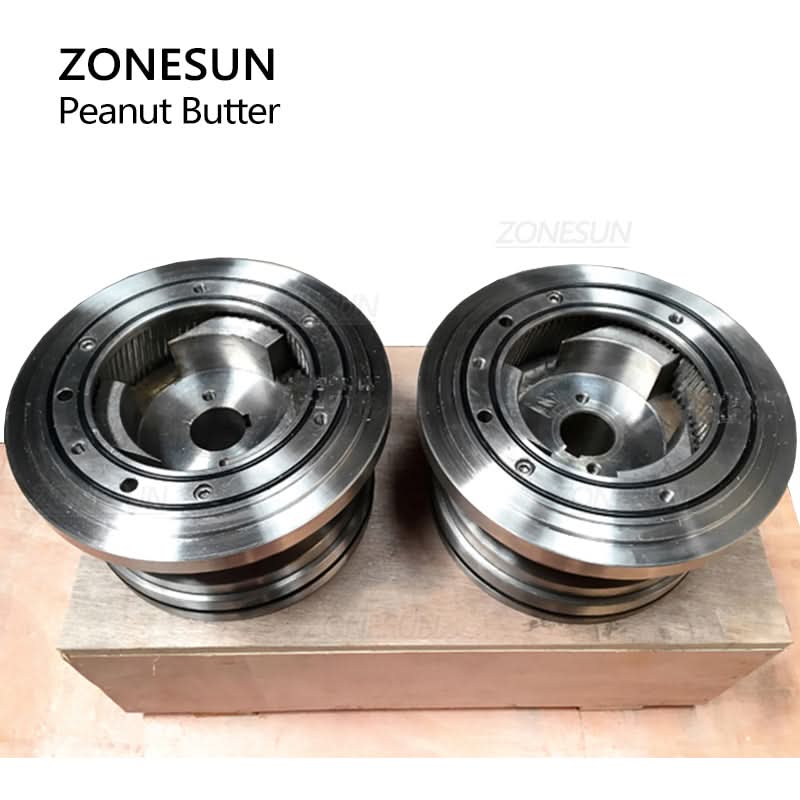

STAINLESS-STEEL GRINDING PUMP
The stainless-steel grinding pump has a dense, blister-free finish for durable operation.
WATER-COOLING CIRCULATION
The grinding head has water-cooling connections. Connect water hoses to the cooling ports for circulation during operation; confirm the water supply arrangement for your installation.
LARGE REMOVABLE OUTLET
The large outlet helps prevent material blockages and can be removed easily for cleaning.
