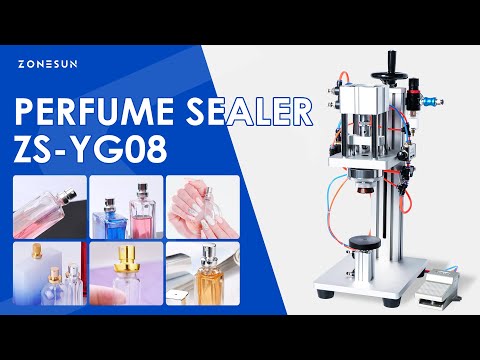

The ZONESUN ZS-YG08 pneumatic perfume capping machine is engineered for efficient and precise sealing of perfume bottles and vials. Operated via foot pedal and powered by compressed air, it features an adjustable working height and interchangeable capping heads to accommodate various bottle sizes (13 mm, 15 mm, 18 mm, and 20 mm). Ideal for cosmetic labs, fragrance production, and boutique packaging, this machine delivers 800–1000 bottles/hour with minimal effort — a reliable choice for professional sealing tasks.
Note: If you need to cap both 20 mm and 15 mm perfume bottles, please select the 20 mm machine and purchase one extra capping head for 15 mm separately.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZS-YG08 |
| Applicable Bottle Mouth Sizes | 13 mm / 15 mm / 18 mm / 20 mm (interchangeable heads) |
| Working Height | 60 – 200 mm (adjustable) |
| Capping Speed | 800 – 1000 bottles / hour |
| Drive Type | Compressed air (pneumatic) |
| Air Pressure Required | 0.35 – 0.4 MPa |
| Operation Mode | Foot pedal |
| Machine Size | 220 × 275 × 600 mm |
| Package Size | 340 × 280 × 640 mm |
| Net Weight | 13.5 kg |
| Gross Weight | 15.5 kg |
Key Features
- Pneumatic drive — no electricity required, powered by compressed air
- Foot pedal operation — frees both hands for precise bottle positioning
- Adjustable working height (60–200 mm) — accommodates various bottle heights
- Interchangeable capping heads — supports 13 mm, 15 mm, 18 mm, and 20 mm bottle mouths
- High capping speed — 800 to 1000 bottles per hour
- Compact and sturdy design — easy to place on workbenches
- Suitable for perfume bottles, vials, and cosmetic containers
- Ideal for cosmetic labs, fragrance workshops, and boutique packaging lines
Applications
The ZS-YG08 is widely used in the following industries and scenarios:
- Perfume & Fragrance: Sealing standard perfume bottle crimps (13–20 mm)
- Cosmetics: Capping vials, serums, and essential oil bottles
- Pharmaceuticals: Sealing oral spray heads and medical vials
- Small Batch Production: Boutique packaging lines and laboratory use
