DESCRIPTION

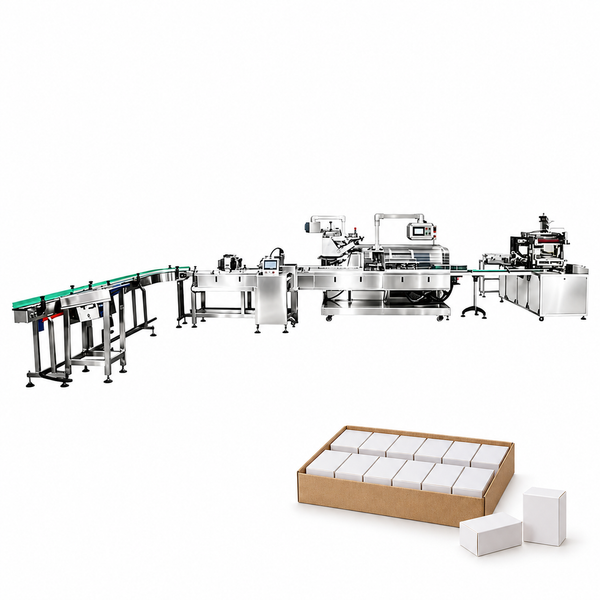

The ZONESUN ZS-CSPM7 is an automatic multi-box stacking and cartoning machine designed for high-speed horizontal grouping and open-top carton packaging. With a maximum output of up to 80 boxes per minute, it integrates customizable conveying, automatic sorting and aligning, multi-layer stacking, carton opening and loading, as well as tray forming and discharge into a single compact system.
It is widely used in the food, daily chemical, and pharmaceutical industries for products such as bouillon cubes, small cartons, soap bars, and other boxed items that require precise counting, grouping, and open-top tray packaging.
PARAMETER
- Model: ZS-CSPM7
- Packing Speed: Max. 80 boxes/min
- Carton Thickness Requirement: 250–450 g/m² (subject to carton size confirmation)
- Max Carton Dimension (L × W × H): 260 × 190 × 60–70 mm (customizable)
- Working Pressure: ≥ 0.6 MPa
- Air Consumption: 160–200 ml/min
- Power Supply: 380 V, 50 Hz, three-phase
- Total Power: 1.5 kW
- Machine Dimensions: 5000 × 1200 × 1800 mm
- Net Weight: 3000 kg
Customizable Conveying System
Provides a customizable conveyor layout tailored to product sizes and workshop space, ensuring smooth, precise material transfer before entering the stacking zone.
Multi-layer Automatic Stacking
Stacks products horizontally using precision gripping or lifting mechanisms, enabling accurate multi-row, multi-column counting and grouping before final packing.
Automatic Sorting & Aligning
Automatically disperses and organizes individual small cartons, arranging them with preset spacing and orientation for orderly, consistent feeding into the stacking process.
Automatic Carton Opening & Loading
Robotic arms automatically suction and open the outer master cartons, then smoothly push the stacked products into the box, ensuring a seamless loading process.
Tray Forming & Discharge
Automatically forms open-top tray boxes with folded edges and discharges the filled trays directly to downstream labeling or palletizing processes.
