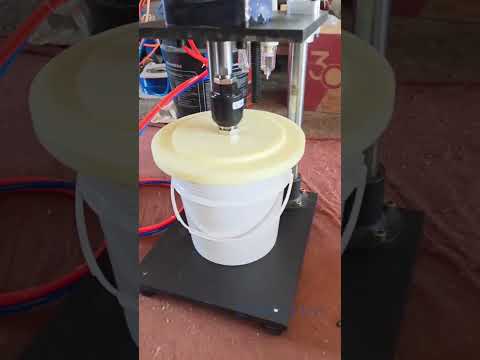

The ZONESUN ZS-PDCM100 is a semi-automatic pneumatic lid pressing machine for compatible buckets and containers. Compressed-air operation, an adjustable stand and a customizable pressing head support lid-pressing tasks for different container sizes.

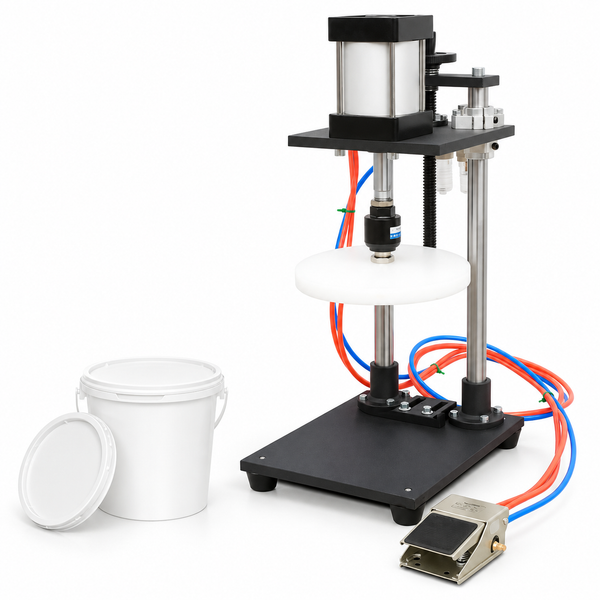

Typical applications include compatible 1–5 L plastic buckets, paint containers and food containers. Container capacity alone does not determine compatibility: check the lid design, dimensions, container height and support requirements together.
Key Features
- Pneumatic drive: The pressing machine operates on compressed air without an electrical connection to the machine.
- Adjustable stand: Positioning can be adjusted to accommodate compatible container sizes.
- Nylon pressing head: The pressing head can be customized to match the container and lid configuration.
- Pressure monitoring: A gauge displays operating air pressure for setup and adjustment.
- Compact dimensions: The listed machine dimensions are 353 × 285 × 645 mm.
Choose the Correct Size Option
The listed options are 130 mm, 170 mm, 180 mm, 210 mm and 220 mm. These are separate selectable configurations. Do not assume one configuration fits every lid size.
Before ordering, contact us to match the pressing head to your lid. Provide the lid outer diameter, container height and photos or drawings of the lid and container rim. Confirm how the listed option size relates to your required pressing head and lid fit.
If your required option is unavailable, contact us to confirm availability, customization and lead time.
Technical Specifications
| Model | ZS-PDCM100 |
|---|---|
| Machine type | Semi-automatic pneumatic lid pressing machine |
| Working air pressure | 0.5–0.8 MPa |
| Listed operating speed | 10–15 containers/min |
| Listed cap diameter limit | ≤220 mm; customized pressure plates are available |
| Listed size options | 130 mm / 170 mm / 180 mm / 210 mm / 220 mm |
| Maximum listed container height | 300 mm |
| Typical container capacity | 1–5 L; suitability depends on actual container and lid dimensions |
| Machine dimensions (L × W × H) | 353 × 285 × 645 mm |
| Weight | 35 kg |
Actual output depends on container handling, lid placement and the pressing cycle. Confirm performance using your container and lid combination.
Compressed-Air Requirements
The listed compressor requirements are at least 2200 W power, 180 L/min discharge rate and a 65 L tank, with a working pressure of 0.5–0.8 MPa. Confirm compressor performance at the required operating pressure before setup.
The pressing machine is air-powered; a compressor may require its own electrical supply. Contact us to confirm whether the compressor, air hose, fittings and required pressing head are included in your quotation.
Frequently Asked Questions
Does this machine tighten screw caps?
It applies downward pressure to press a compatible lid onto a container. Send your closure details if you are unsure whether a pressing process is appropriate.
Does the 220 mm specification mean every smaller lid will fit?
No. The pressing head must match the lid and container structure. Confirm the appropriate size and head design for your application.
Can the pressing head be customized?
Customized pressing heads or plates are available. Provide container and lid dimensions or samples to confirm the required configuration.
What should I check when packing chemical products?
Confirm equipment suitability and the requirements of your product and installation environment before ordering. Pneumatic drive alone does not establish suitability for every application.
