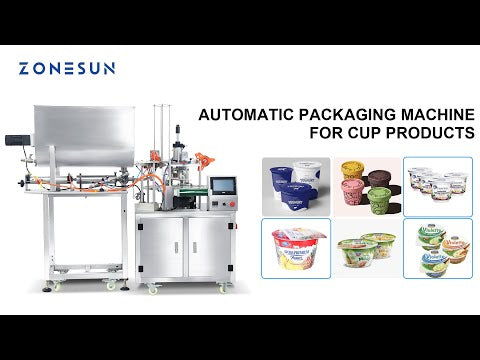

The ZONESUN ZS-FS600 is a multifunctional packaging machine that integrates cup feeding, paste filling, and high-temperature sealing in one streamlined process. Designed for cup-format products such as yogurt, tomato paste, and other compatible liquids and pastes, it delivers efficient, consistent output for small to medium-sized production lines. Customizable filling ranges and hopper capacity allow flexibility across various product requirements.
Application note: This machine is not suitable for ice cream filling that requires a cooled filling system.
Specification Details
Model ZS-FS600
Machine Voltage 110V / 220V, 50–60Hz
Power Consumption Approx. 1KW
Production Capacity Approx. 600–700 cups/hour (varies by cup size and materials)
Filling Range 50–1000ml (customizable)
Hopper Size 120L (customizable)
Sealing Temperature 0–400℃
Suitable Product Size Customized
Conveyor Belt Size Approx. 2450 × 112mm (L × W)
Air Pressure Requirement 0.5–0.8MPa
PRODUCT DETAILS
CONTROL PANEL
Easy to set and adjust the parameters.
LARGE HOPPER
With a stirring paddle, mixing function, free of sediment.
ROTARY PLATE
Cup feeding, material filling, and film sealing, efficient and space-saving.
CONVEYOR
Transporting the finished products.
